Chronomite SR-40 Installation & Operation Instructions

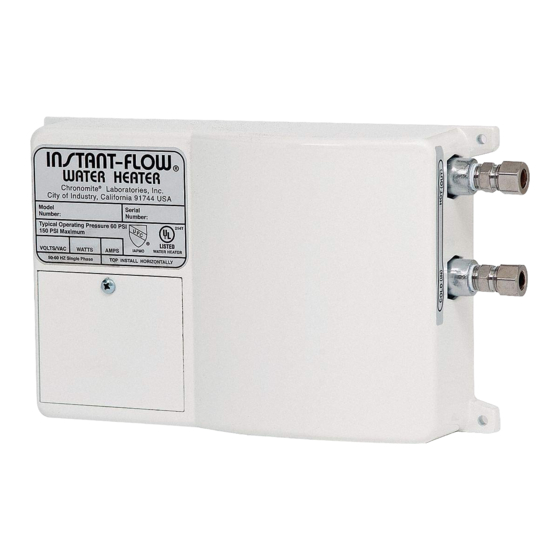

CHRONOMITE INSTANT-FLOW
INSTALLATION AND OPERATION INSTRUCTIONS (STANDARD FLOW MODELS)
Instant-Flow Specifications:
• Dimensions:
• Weight:
• Materials:
• Color:
• Pipe Fittings:
• Pressure Requirements:
• Maximum Operating Temp:
• Minimum Operating Flow Rate: .65 GPM
• Minimum Operating Flow Rate: 1.0gpm for Model
• Listings:
THE MANUFACTURER OF THIS WATER HEATER WILL NOT BE LIABLE FOR ANY DAMAGES
DUE TO THE FAILURE TO FOLLOW THESE INSTALLATION AND OPERATION INSTRUCTIONS.
CAUTION: BEFORE BEGINNING THE INSTALLATION:
A) Turn off the circuit breaker to avoid dangerous electrical shocks.
B)
Turn off the water supply.
1. Remove electrical access cover. Attach conduit to the conduit access hole. Then feed wires. Do not attach wiring.

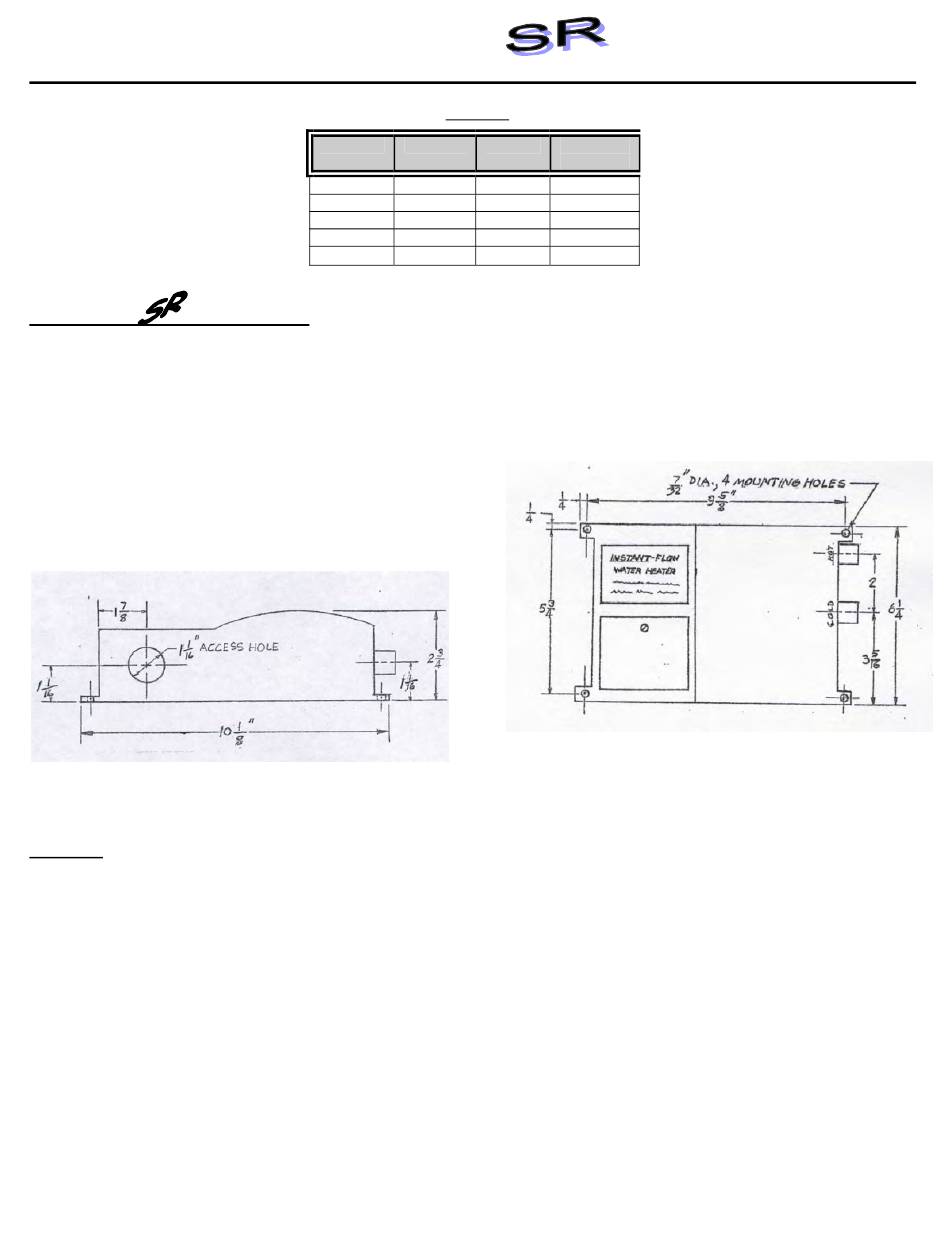

2. Mount unit horizontally against the wall so the silver label reads correctly (See Fig. 1). Mount with four screws
through the flanges located on each corner using molly anchors or fasteners.
CAUTION: Heating elements may burn out if unit is not mounted horizontally.
3. Connect plumbing. Use
compression fittings supplied for ease of installation. Do not apply heat to these fittings.
4. Run water through the unit to expel all air bubbles. Check for leaks at all fitting joints.
5. Connect wiring. Attach ground wire to center terminal and hot wires to outer terminals (See Fig. 3)
6. Replace electrical access cover. Turn on the circuit breaker. The unit is now ready for use.
7. Local plumbing and electrical codes must be followed in the installation of this water heater and it's accessories.
8. Failure to comply with code requirements voids the warranty.
9. Failure to install faucet flow control as shown on Fig. 2 will cause unsatisfactory operation of the heater.
Downloaded from www.GadgetsGo.com, Authorized Chronomite Distributor
(Before installation, compare electrical needed for the model of heater selected)
Model No.
SR-30
SR-30
SR-30
SR-40
SR-40
6¼" x 9 x 2 ¾
5/8"
5 lbs.
Rugged cast aluminum alloy casing, Celcon waterways with nichrome parts
White (unless stainless housing)
Female NPT standard pipe thread
¼"
25 PSI Minimum, 150 PSI Maximum (300 PSI tested) No pressure relief valve needed
unless required by local codes.
140°F
SR-40-220/240
UL, HUD, IAPMO
tapered national pipe thread at cold water inlet and hot water outlet (See Fig. 1). Use
¼"
TABLE 1
Wattage Voltage Breaker
6240 208
7200 220/240
8310 277
8320 208
9600 220/240
"
WATER HEATER
Size
30A
30A
30A
40A
40A
