CHRONOMITE HIGH CAPACITY INSTANT-TEMP WATER HEATERS
INSTALLATION AND OPERATION INSTRUCTIONS (480-600V 3
(Before installation, compare electrical requirements needed for the model of heater selected)
Model
ER-42x/480_3P
ER-50x/480_3P
ER-60x/480_3P
ER-67x/480_3P
ER-90x/480_3P
ER120x/480_3P
x = (L)-Low Activation
(S)-Standard Activation
(H)-High Activation
HCH Instant-Temp Specifications:
Dimensions: 15-1/4" x 17-1/2" x 6-1/4"
Weight: 26 LBS
Materials:
Rugged steel housing and cover
Celcon plastic element assembly with nichrome
coils
Minimum Operating Pressure: 25 PSI
Maximum Operating Pressure: 80 PSI
Maximum Pressure: 150 PSI
No pressure relief valve needed, unless required by local
code.
Maximum Operating Temperature: 140°F
Listings: UL, UPC
TABLE 1 – Electrical Specifications
Wattage
Amps per
3Φ Voltage
Phase
20,000
24
24,000
29
28,800
35
32,000
38
43,200
52
57,600
69
3 Pole Circuit Breaker
Intermittent Duty
480
30 amp
480
30 amp
480
40 amp
480
40 amp
480
60 amp
480
70 amp
Mounted Unit
Models)
Φ
Continuous Duty
30 amp
40 amp
50 amp
50 amp
70 amp
90 amp
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chronomite ER-42 480 3P Series
Summary of Contents for Chronomite ER-42 480 3P Series
- Page 1 CHRONOMITE HIGH CAPACITY INSTANT-TEMP WATER HEATERS INSTALLATION AND OPERATION INSTRUCTIONS (480-600V 3 Models) Φ (Before installation, compare electrical requirements needed for the model of heater selected) TABLE 1 – Electrical Specifications Model Wattage Amps per 3Φ Voltage 3 Pole Circuit Breaker...
-
Page 2: Before Beginning The Installation
TABLE 2 – Flow Switch Activation Flow Switch Activation 3 Module Heaters Low Activation (L) 0.35 GPM Standard Activation (S) 1.20 GPM High Activation (H) 2.80 GPM THE MANUFACTURER OF THIS WATER HEATER WILL NOT BE LIABLE FOR ANY DAMAGES CAUSED BY THE FAILURE TO FOLLOW THESE INSTALLATION AND OPERATION INSTRUCTIONS. - Page 3 Top and Bottom FIGURE 1 - Heater Installation Items Needed for Installation: Item Part No. Title Description Chronomite Instant-Temp HCH See Figure 1 Electrical Conduit Length as required Enter via Top or Bottom 3a/b Inlet / Outlet Valve – ¾” NPT...
-
Page 4: Electrical Installation
ELECTRICAL INSTALLATION: 1. Connect power supply wires appropriately sized and protected by a three pole circuit breaker to the input terminals on the heater (hard wired) as shown in the Figure 2 wiring diagram below. Refer to Table 1 above on Page 1 for the voltage, amp and phase ratings of the supply power. Use 3 wires plus ground for 3 phase heaters. -
Page 5: Flow Controls
IMPORTANT NOTES: Air in the heater may cause the elements to burn out. If the water lines are serviced or drained upstream of heater, be sure to use the following start up procedure: 1. Turn off electrical supply at circuit breaker. 2. - Page 6 Temperature Adjustment Potentiometer - (L) and (S) Activation Models The potentiometer allows the factory preset temperature of the heater to be changed in the field. The potentiometer will adjust water temperature between 70°F and 125°F provided the wattage of the heater selected is capable of producing the temperature increase at the requested flow rate.
-
Page 7: Troubleshooting Guide
Chronomite Laboratories, Inc.’s Installation Instructions provided. Chronomite Laboratories, Inc. will repair or exchange parts at the factory at no cost. This warranty is limited to repairing or replacing said products which prove to be defective upon factory inspection FOB City of Industry, CA... - Page 8 2. Manufacturer is not liable for any water damage or other damages arising directly or indirectly from/and defect in the Chronomite tankless water heater component part(s) or from its use. 3. Manufacturer is not liable under this warranty if the water heater has not been continuously supplied with potable water or the water inlet temperature is above manufacturer recommended maximum temperature.
Need help?
Do you have a question about the ER-42 480 3P Series and is the answer not in the manual?
Questions and answers

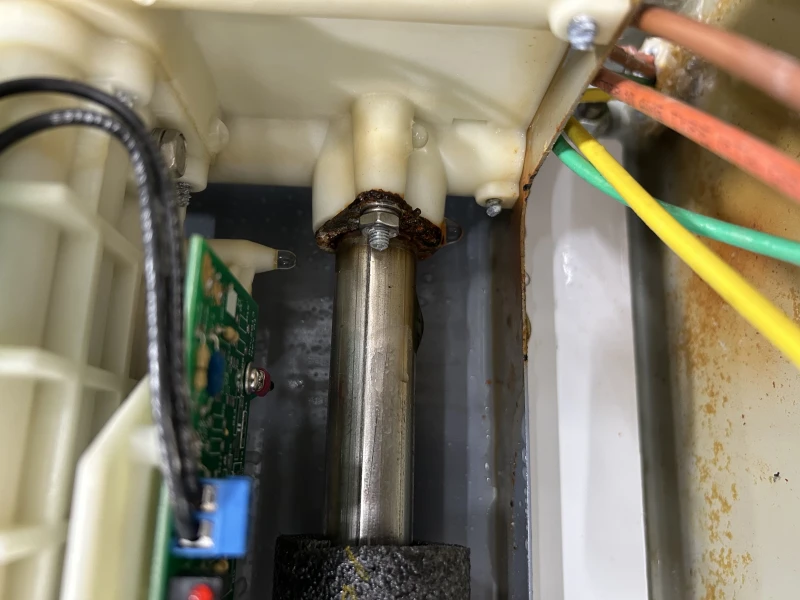

Our water heater is leaking, do you have some type of gasket or a new fitting, I would need a part number for the Model ER-42L/480_3P
