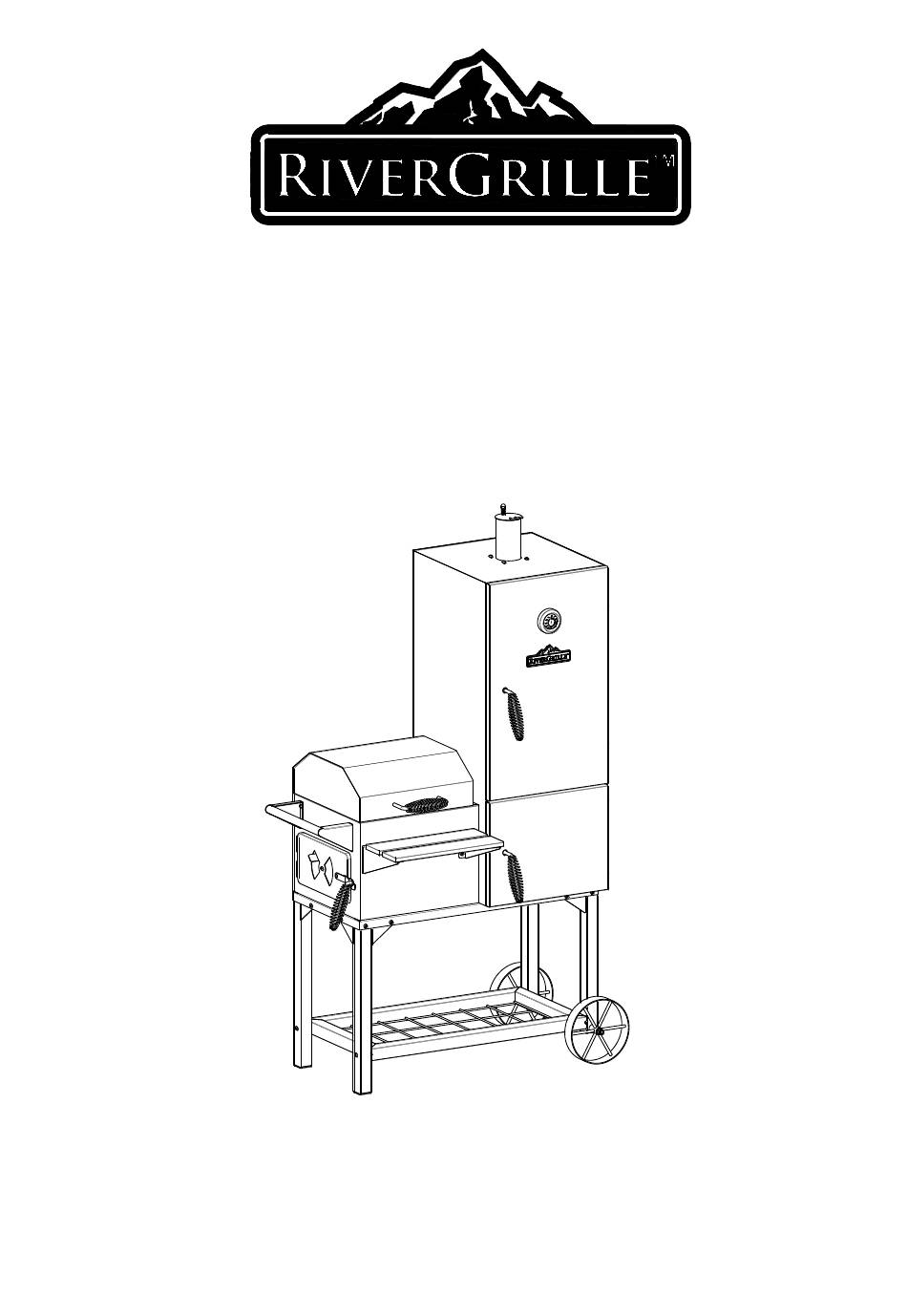

Rustler 40 Inch Vertical Smoker & Grill
Model Number # SC2185601-RG
Owner's Manual
Assembly and Operating Instructions
Tools required for assembly: (Not Included)
Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench.
Keep this manual for future reference.
1 of 24
SC2185601-RG_ENG
20160226-ver2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rustler and is the answer not in the manual?

Questions and answers

Related Manuals for RiverGrille Rustler

Summary of Contents for RiverGrille Rustler

  • Page 1 Rustler 40 Inch Vertical Smoker & Grill Model Number # SC2185601-RG Owner’s Manual Assembly and Operating Instructions Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench. Keep this manual for future reference. 1 of 24 SC2185601-RG_ENG...
  • Page 2 WARNING  Only use this smoker/grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the smoker/grill. Never use on wooden or other surfaces that could burn.  DO NOT attempt to remove charcoal ash tray or grate while coals are hot. ...
  • Page 3 WARNING  Use caution during assembly and while operating your smoker/grill to avoid scrapes or cuts from sharp edges of metal parts. Use caution when reaching into or under smoker/grill.  When opening lid, be sure lid is fully opened and secure to prevent lid from closing unexpectedly. ...

  • Page 4: Product Diagram

    ASSEMBLY INSTRUCTIONS Rustler 40 Inch Vertical Smoker & Grill THANK YOU FOR PURCHASING THIS Read all safety warnings & assembly instructions carefully before assembling or operating your smoker/grill. customerservice@rankam.com For missing parts, please contact customer service at or at 888-837-1380 (U.S.

  • Page 5: Component List

    Component List 1. Main Chamber 2. Side Firebox 3. Side Firebox Lid 4. Storage Rack 1a upper door 1b lower door 2a firebox door 1c side door w/latch 2b firebox body 1d chamber body 1 pc 1 pc 1 pc 1 pc 5.

  • Page 6: Hardware List

    25. Side Door Handle 26. Main Chamber 27. Sausage Hook 28. Temperature Gauge Handle 1 pc 2 pcs 6 pcs 1 pc STOP! DO NOT RETURN TO RETAILER. For assembly assistance, missing or damaged parts, please call customer service 1-888-837-1380. Hardware List Item No.
  • Page 7 FLANGE NUT M6 CAP NUT M8 SRPING WASHER ID10 WASHER ID8 HINGE PIN COTTER PIN 7 of 24 SC2185601-RG_ENG 20160226-ver2.0...

  • Page 8: Assembly Procedures

    Assembly Procedures Step 1. Assembly of Legs to Cart Top Frame. Tips. Put the Cart Top Frame upside down for easy assembly. ONLY HAND TIGHTEN bolts and nuts in this step Hardware required A - 4 pcs C - 8 pcs H - 12 pcs Step 2.
  • Page 9 Step 3. Attach wheels to cart TIGHTEN nuts with TOOLS Hardware required E - 2 pcs L - 2 pcs Step 4. Attach Main Chamber and Side Firebox to cart. ONLY HAND TIGHTEN bolts and nuts in this step Hardware required C - 8 pcs H - 8 pcs Tips.
  • Page 10 Step 5. Attach Side Firebox to Main Chamber. TIGHTEN bolts and nuts in Step #1,2,4,5 with TOOLS now Hardware required C - 10 pcs H - 10 pcs Step 6. Attach Front Table to Side Fire Box Hardware required C - 4 pcs H - 4 pcs 10 of 24 SC2185601-RG_ENG...
  • Page 11 Step 7. Attach Side Handle and Hinge-Bottom to Side Firebox Hardware required B - 4 pcs C - 4 pcs H - 8 pcs 23 H Step 8. Attach Side Firebox Handle and Hinge-Top to Side Firebox Lid Hardware required B - 4 pcs D - 2 pcs H - 4 pcs...
  • Page 12 Step 9. Secure Side Firebox Lid to Side Firebox Hardware required P - 2 pcs N - 2 pcs Step 10. Attach Smoke Stack to Main Chamber Hardware required C - 4 pcs H - 4 pcs J - 1 pc K - 1 pc 12 of 24 SC2185601-RG_ENG...
  • Page 13 Step 11. Attach Main Chamber Handles, Side Door Handle, Air Vents ad Temperature Gauge Hardware required C - 2 pcs F - 3 pcs M - 5 pcs G - 2 pcs Step 12. Put Charcoal Grate/Tray into smoker 13 of 24 SC2185601-RG_ENG 20160226-ver2.0...
  • Page 14 Step 13. Hang Grate Supports to Main Chamber Step 14. Put Grates into smoker 14 of 24 SC2185601-RG_ENG 20160226-ver2.0...
  • Page 15 Step 15. Put Hooks and Water Bowl into smoker when they are needed. Assembly is now completed. Be sure all bolts and nuts are tightened before use 15 of 24 SC2185601-RG_ENG 20160226-ver2.0...

  • Page 16: Preparation For Use & Lighting Instructions

    WARNING Place smoker/grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material. Never use on wooden or other surfaces that could burn. Place smoker/grill away from open windows or doors to prevent smoke from entering your house. In windy weather, place the smoker/grill in an outdoor area that is protected from the wind.
  • Page 17 center of charcoal grates/trays. Step 3 Saturate charcoal with lighting fluid. With lid and doors open, wait 2 to 3 minutes to allow lighting fluid to soak into charcoal. *Store lighting fluid a safe distance from the smoker/grill. Step 4 With lid and doors open and charcoal trays completely placed inside the smoker/grill.
  • Page 18 WARNING DO NOT use smoker/grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray or grates while tray or grates contain hot coals. NOTE: to extend the life of your smoker/grill, make sure that hot coals and wood do not touch the walls of smoker/grill.
  • Page 19 Use Main Chamber as a Standalone Water Smoker Close the Side Door on Main Chamber (to block the channel between Side Firebox and Main Chamber) Step #1. Remove Water Bowl and Charcoal Grate/Tray Step #2. Close the channel door in Main Chamber from Main Chamber Step #3.

  • Page 20: Flavoring Wood

    TIPS DO NOT build a large fire for slow water smoking IF USING CHARCOAL CHIMNEY STARTER, PROCEED TO STEP 5. If you choose to use charcoal lighting fluid, ONLY use charcoal lighting fluid approved for lighting charcoal. Do not use gasoline, kerosene, alcohol or other flammable materials for lighting charcoal. Follow all manufacturer’s warnings and instructions regarding the use of their product.

  • Page 21: Regulating Heat

    using more wood for stronger smoke flavor or less wood for milder smoke flavor. Additional flavoring wood should not have to be added during the cooking process. However, it may be necessary when cooking very large pieces of food. Follow instructions and cautions in the “Adding Charcoal/Wood During Cooking”...

  • Page 22: After-Use Safety

    AFTER-USE SAFETY WARNING  Always allow smoker/grill and all components to cool completely before handling.  Never leave coals and ashes in smoker/grill unattended. Make sure coals and ashes are completely extinguished before removing.  Before smoker/grill can be left unattended, remaining coals and ashes must be removed from smoker/grill. Use caution to protect yourself and property.
  • Page 23 LIMITED WARRANTY 1. Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of 90 days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. 2. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provide that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions.

  • Page 24: Obtaining Replacement Parts

    Should you encounter any problem Obtaining replacement parts CALL US FIRST. Do not return product to the store. WE CAN HELP. Rankam Metal Products Manufactory Ltd. 1618 W. Rosecrans Ave., Gardena, CA90249 Please contact Customer Service at: customerservice@rankam.com or at 1 –...
