RiverGrille Stampede CG2053904-RG Owner's Manual

37.5 inch charcoal grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

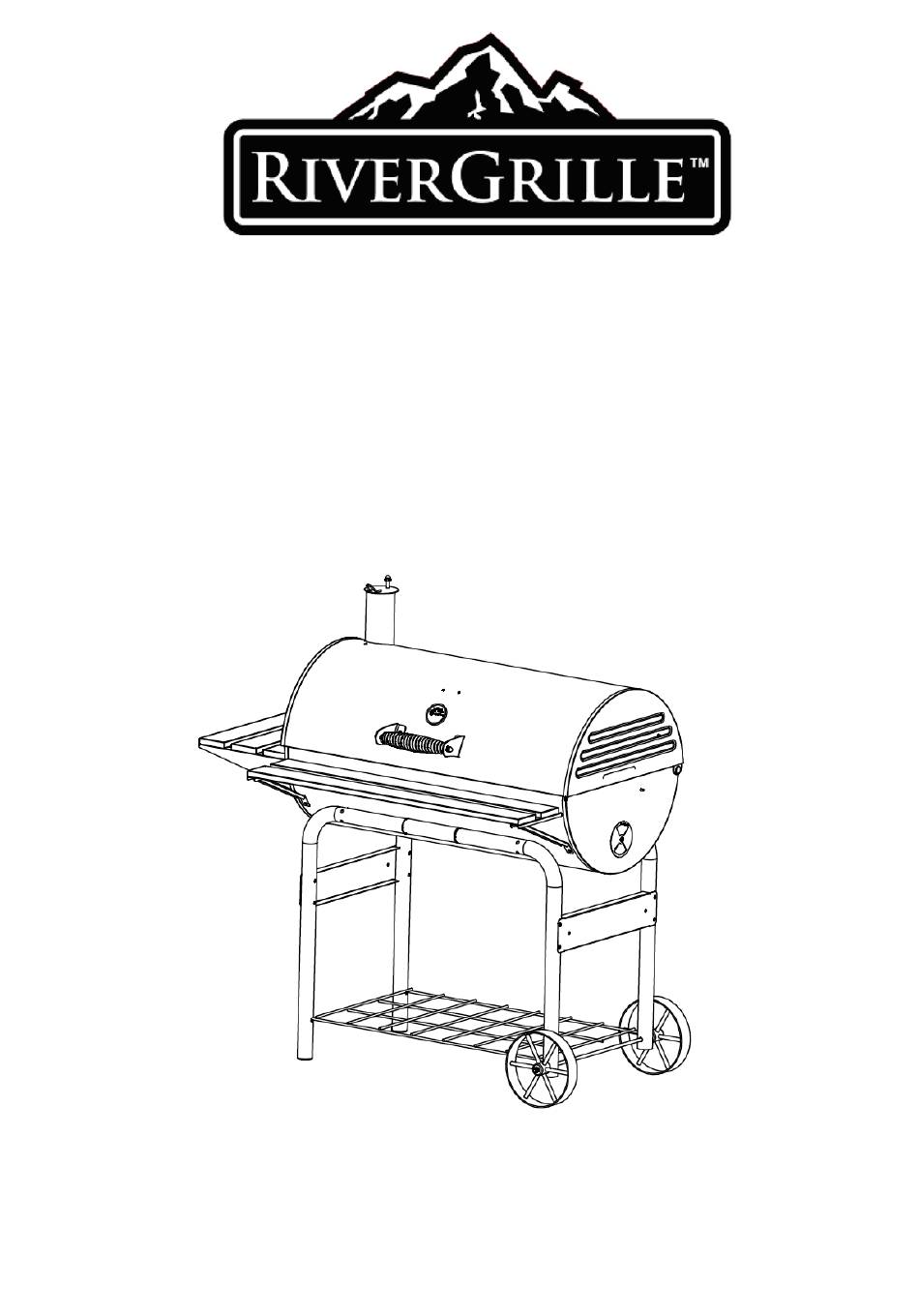

Stampede 37.5 Inch Charcoal Grill
Owner's Manual
Assembly and Operating Instructions
Model # CG2053904-RG
Tools required for assembly: (Not Included)
Pliers, Philips & Flathead Screwdrivers, Adjustable
Wrench.
Keep this manual for future reference.
Page
1 of 22
CG2053904-RG
20150821-V0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stampede CG2053904-RG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverGrille Stampede CG2053904-RG

Summary of Contents for RiverGrille Stampede CG2053904-RG

  • Page 1 Stampede 37.5 Inch Charcoal Grill Owner’s Manual Assembly and Operating Instructions Model # CG2053904-RG Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench. Keep this manual for future reference. Page 1 of 22 CG2053904-RG 20150821-V0...
  • Page 2 WARNING l Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on wooden or other surfaces that could burn. l When grill is in use, keep clearance of 36” between the hot grill and any combustible materials, such as bushes, trees, wooden decks, wooden fences, buildings, etc.
  • Page 3 WARNING l When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen close lid to suffocate the flame. Do not use water to extinguish grease fires. l Use caution when opening the lid, keep hands, face and body a safe distance away. Flash flare ups may occur when air comes into contact with fire or hot coals.

  • Page 4: Product Diagram

    The following tools are required for assembly and are not included: l Pliers l Philips & Flathead Screwdrivers l Adjustable Wrench Product Diagram Page 4 of 22 CG2053904-RG 20150821-V0...

  • Page 5: Component List

    Component List 1. Lid 2. Smoke Stack 3. Damper 4. Lid Handle Qty. 1pc Qty. 1pc Qty. 1pc Qty. 1pc 5. Temperature Gauge 6. Warming Rack 7. Cooking Grid 8. Charcoal tray hanger Qty. 1pc Qty.1pc Qty. 2pcs Qty. 2pcs 9.

  • Page 6: Assembly Procedures

    STOP! DO NOT RETURN TO RETAILER For assembly assistance, missing or damaged parts, please contact customer service at customerservice@rankam.com 888-837-1380 (U.S. only) Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. Hardware List Bolt (M6X50) 12pcs Bolt (M6X20) 4 pcs Bolt (M6X12) 20pcs...
  • Page 7 Hand Tighten only at this time Tighten with tools at this time Some steps may require the assistance of a friend. Step 1. Assembly of left legs (15) with legs holder (17) Hardware required: Bolt A x 4 pcs, Flange nut D x 4 pcs Step 2.
  • Page 8 Step 3. Assembly the bottom rack (21) to left and right legs assembly and legs connector (16) to form a cart frame. Step 4. Assembly of wheels (19) and axle (20) to cart flame to form a grill cart. Hardware required: Lock nut E x 2 pcs Page 8 of 22 CG2053904-RG...
  • Page 9 Step 5. Assembly fire bowl (11) to grill cart Hardware required: Bolt A x 4pcs, flange nut D x 4 pcs Step 6. Tighten the bolts and nuts in steps 1,2 and 5. Step7. Assembly air vent (22) to fire bowl. Adjust to suitable tightness for turning. Hardware required: Bolt C x 2 pcs, lock nut F x 2 pcs Page 9 of 22...
  • Page 10 Step 8. Assembly side shelf 10 to fire bowl (11). Hardware required: Bolt B x 4pcs, flange nut D x 4 pcs Step 9. Assembly front table slats (12) with front table bracket (13) to form front shelf assembly. Hardware required: Bolt C x 6 pcs Page 10 of 22 CG2053904-RG...
  • Page 11 Step 10. Assembly front shelf assembly to fire bowl(11) Hardware required: Bolt C x 2 pcs, flange nut D x 2 pcs Step 11. Assembly front table support (14) to front table assembly and fire bowl Hardware required: Bolt C x 4 pcs, flange nut D x 2 pc Page 11 of 22 CG2053904-RG...
  • Page 12 Step 12. Tighten the bolts and nuts in steps 9, 10 and 11. Step 13. Assembly the temperature gauge (5) to lid (1). Then assembly smoke stack (2) to the lid (1) and finally assembly the damper (3).. Hardware required: Bolt C x 2 pcs, Flange nut D x 2 pcs, Cap nut G and spring H x 1 pc each. Step 14.
  • Page 13 Step 15. Assembly lid to fire bowl. Hardware required: Hinge Pin K x 2 pcs, cotter pin J x 2 pcs Step 16. Install charcoal tray (9) to fire bowl with charcoal tray hangers (8) Page 13 of 22 CG2053904-RG 20150821-V0...
  • Page 14 Step 17. Install warming rack (6) to grill lid and fire bowl. Hardware required: Cotter pin (J) x 2 pcs Step 18. Install cooking grid (7) to fire bowl. Also install the grease cup holder (23) to fire bowl underneath. Page 14 of 22 CG2053904-RG...

  • Page 15: Preparation For Use & Lighting Instructions

    Final assembly WARNING Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material. Never use on wooden or other surfaces that could burn. Place the grill away from open windows or doors to prevent smoke from entering your house.
  • Page 16 Step 1 Lightly coat all interior surfaces of the grill with vegetable oil or vegetable oil spray. Do not coat charcoal grates or racks. Step 2 Follow the instructions below carefully to build a fire. You many use charcoal and/or wood as fuel in the grill (see “Adding Charcoal/Wood During Cooking”...
  • Page 17 NOTE: It is important that the exterior of the grill is not scraped or rubbed during the curing process. IMPORTANT: to protect your smoker from excessive rust, the unit must be cured periodically and covered at all times when not in use. OPERATING INSTRUCTIONS Step 1 Lightly coat all interior surfaces of the grill with vegetable oil or vegetable oil spray.

  • Page 18: Flavoring Wood

    WARNING Charcoal lighting fluid must be allowed to completely burn off prior to closing grill lid (approximately 20 minutes).Failure to do this could trap fumes from charcoal lighting fluid in grill and may result in a flash-fire or explosion when lid is opened. Step 5 Place cooking grates on grill support lips.

  • Page 19: Adding Charcoal/Wood During Cooking

    Adding Charcoal/Wood During Cooking Additional charcoal and/or wood may be required to maintain or increase cooking temperature. Step 1 Stand back and carefully open grill lid. Use caution since flames can flare-up when fresh air suddenly comes in contact with fire. Step 2 Wearing oven mitts/gloves, lift up the cooking grates and place it on a clean and non-combustible surface.

  • Page 20: Proper Care And Maintenance

    Proper Care & Maintenance l Cure your grill periodically throughout the year to protect against excessive rust. l To protect your grill from excessive rust, the unit must be properly cured and covered at all times when not in use. l...

  • Page 21: Limited Warranty

    LIMITED WARRANTY Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of Ninety (90) days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provide that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions.
  • Page 22 Should you encounter any problem, Obtain replacement parts CALL US FIRST. Do not return product to the store. WE CAN HELP. Rankam Metal Products Manufactory Ltd 1618 W. Rosecrans Ave., Gardena, CA90249, Please contact Customer Service at: customerservice@rankam.com or at 1-888-837-1380 Hours of Operation: Mon to Fri, 8:00 a.m.
