RiverGrille SC2185601-RG Owner's Manual

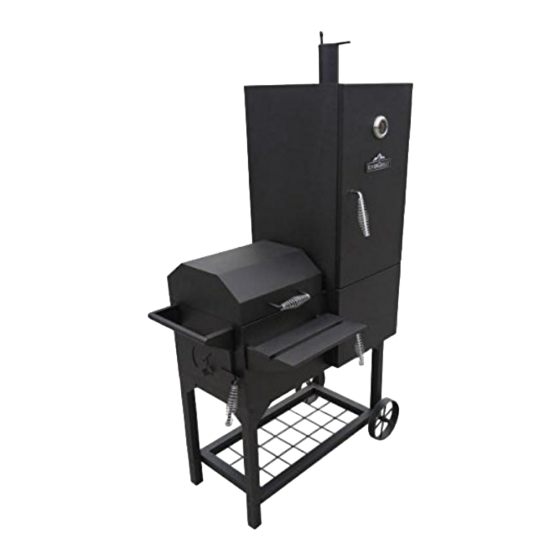

Vertical offset firebox grill & smoker
Hide thumbs Also See for SC2185601-RG:
Table of Contents

Advertisement

Quick Links

Download this manual

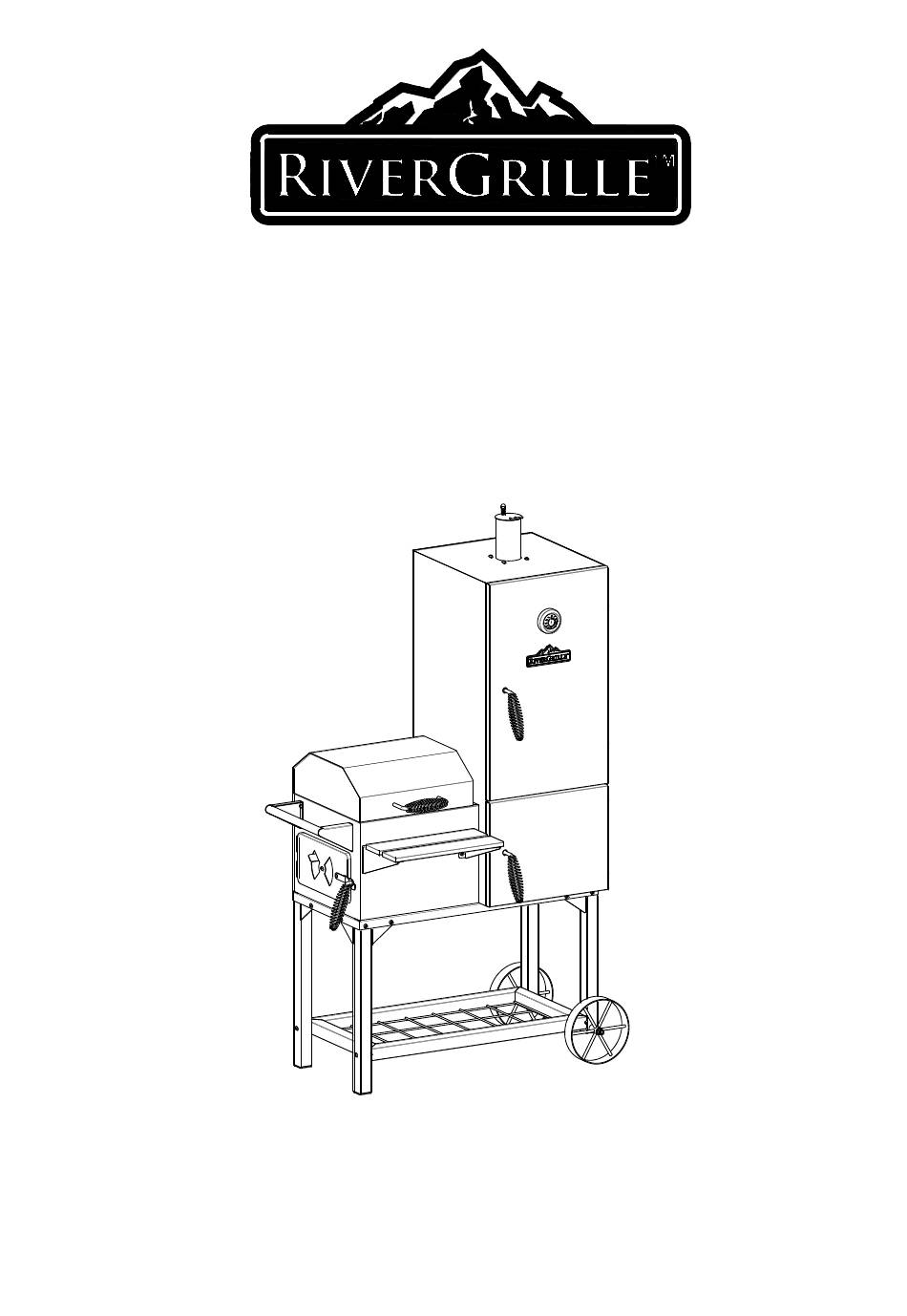

Vertical Offset Firebox Grill & Smoker
Model Number # SC2185601-RG
Owner's Manual
Assembly and Operating Instructions
Tools required for assembly: (Not Included)
Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench.
Keep this manual for future reference.
1 of 22
SC2185601-RG_ENG
20150829-ver1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC2185601-RG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverGrille SC2185601-RG

Summary of Contents for RiverGrille SC2185601-RG

  • Page 1 Vertical Offset Firebox Grill & Smoker Model Number # SC2185601-RG Owner’s Manual Assembly and Operating Instructions Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench. Keep this manual for future reference. 1 of 22 SC2185601-RG_ENG 20150829-ver1.0...
  • Page 2 WARNING  Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on wooden or other surfaces that could burn.  DO NOT attempt to remove charcoal ash tray or grate while coals are hot. ...
  • Page 3 WARNING  Use caution during assembly and while operating your grill to avoid scrapes or cuts from sharp edges of metal parts. Use caution when reaching into or under grill.  When opening lid, be sure lid is fully opened and secure to prevent lid from closing unexpectedly. ...

  • Page 4: Product Diagram

    ASSEMBLY INSTRUCTIONS THANK YOU FOR PURCHASING THIS VERTICAL OFFSET FIREBOX GRILL & SMOKER Read all safety warnings & assembly instructions carefully before assembling or operating your grill. customerservice@rankam.com For missing parts, please contact customer service at or at 888-837-1380 (U.S. only), Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.

  • Page 5: Component List

    Component List 1. Main Chamber 2. Side Firebox 3. Side Firebox Lid 4. Storage Rack 1 pc 1 pc 1 pc 1 pc 5. Cart Top Frame 6. Side Handle 7. Front Table 8. Wagon Wheel 1 pc 1 pc 1 pc 2 pcs 9.
  • Page 6 25. Side Door Handle 26. Main Chamber 27. Sausage Hook 28. Temperature Gauge Handle 1 pc 2 pcs 6 pcs 1 pc STOP! DO NOT RETURN TO RETAILER. For assembly assistance, missing or damaged parts, please call customer service 1-866-561-0731. Hardware List Item No.
  • Page 7 FLANGE NUT M6 CAP NUT M8 SRPING WASHER ID10 WASHER ID8 HINGE PIN HITCH PIN 7 of 22 SC2185601-RG_ENG 20150829-ver1.0...

  • Page 8: Assembly Procedures

    Assembly Procedures Step 1. Assembly of Legs to Cart Top Frame. Tips. Put the Cart Top Frame upside down for easy assembly. ONLY HAND TIGHTEN bolts and nuts for now Hardware required A - 4 pcs C - 8 pcs H - 12 pcs Step 2.
  • Page 9 Step 3. Attach wheels to cart TIGHTEN nuts with TOOLS Hardware required E - 2 pcs L - 2 pcs Step 4. Attach Main Chamber and Side Firebox to cart. ONLY HAND TIGHTEN bolts and nuts for now Hardware required C - 8 pcs H - 8 pcs 9 of 22...
  • Page 10 Step 5. Attach Side Firebox to Main Chamber. TIGHTEN bolts and nuts in Step #1,2,4,5 with TOOLS now Hardware required C - 10 pcs H - 10 pcs Step 6. Attach Front Table to Side Fire Box Hardware required C - 4 pcs H - 4 pcs 10 of 22 SC2185601-RG_ENG...
  • Page 11 Step 7. Attach Side Handle and Hinge-Bottom to Side Firebox Hardware required B - 4 pcs C - 4 pcs H - 8 pcs 23 H Step 8. Attach Side Firebox Handle and and Hinge-Top to Side Firebox Lid Hardware required B - 4 pcs D - 2 pcs H - 4 pcs...
  • Page 12 Step 9. Secure Side Firebox Lid to Side Firebox Hardware required P - 2 pcs N - 2 pcs Step 10. Attach Smoke Stack to Main Chamber Hardware required C - 4 pcs H - 4 pcs J - 1 pc K - 1 pc 12 of 22 SC2185601-RG_ENG...
  • Page 13 Step 11. Attach Main Chamber Handles, Side Door Handle, Air Vents ad Temperature Gauge Hardware required C - 2 pcs F - 3 pcs M - 5 pcs G - 2 pcs K - 1 pc Step 12. Put Charcoal Grate/Tray into smoker 13 of 22 SC2185601-RG_ENG 20150829-ver1.0...
  • Page 14 Step 13. Hang Grate Supports to Main Chamber Step 14. Put Grates into smoker 14 of 22 SC2185601-RG_ENG 20150829-ver1.0...
  • Page 15 Step 15. Put Hooks and Water Bowl into smoker when they are needed. Assembly is now completed. Be sure all bolts and nuts are tightened before use 15 of 22 SC2185601-RG_ENG 20150829-ver1.0...

  • Page 16: Preparation For Use & Lighting Instructions

    WARNING Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material. Never use on wooden or other surfaces that could burn. Place the grill away from open windows or doors to prevent smoke from entering your house.
  • Page 17 center of charcoal grates. Step 3 Saturate charcoal with lighting fluid. With lid open, wait 2 to 3 minutes to allow lighting fluid to soak into charcoal. Store lighting fluid a safe distance from the grill. Step 4 With grill lid open and charcoal tray completely placed inside the grill. Stand back and carefully light charcoal. Allow to burn until covered with a light ash (approximately 20 minutes).

  • Page 18: Flavoring Wood

    NOTE: to extend the life of your grill, make sure that hot coals and wood do not touch the walls of grill. IF USING CHARCOAL CHIMNEY STARTER, PROCEED TO STEP 5. If you choose to use charcoal lighting fluid, ONLY use charcoal lighting fluid approved for lighting charcoal. Do not use gasoline, kerosene, alcohol or other flammable materials for lighting charcoal.

  • Page 19: Regulating Heat

    Regulating Heat To increase heat, add more wood and/or charcoal. Follow instructions in “Adding Charcoal/Wood During Cooking” section of this manual. To maintain the temperature, you may need to add more wood and/or charcoal during the cooking cycle. NOTE: Dry wood burns hotter than charcoal, so you may want to increase the ratio of wood to charcoal to increase the cooking temperature.

  • Page 20: After-Use Safety

    AFTER-USE SAFETY WARNING  Always allow grill and all components to cool completely before handling.  Never leave coals and ashes in grill unattended. Make sure coals and ashes are completely extinguished before removing.  Before grill can be left unattended, remaining coals and ashes must be removed from grill. Use caution to protect yourself and property.

  • Page 21: Limited Warranty

    LIMITED WARRANTY 1. Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of 90 days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. 2. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provide that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions.

  • Page 22: Obtaining Replacement Parts

    Should you encounter any problem Obtaining replacement parts CALL US FIRST. Do not return product to the store. WE CAN HELP. Rankam Metal Products Manufactory Ltd. 1618 W. Rosecrans Ave., Gardena, CA90249 Please contact Customer Service at: customerservice@rankam.com or at 1 –...
