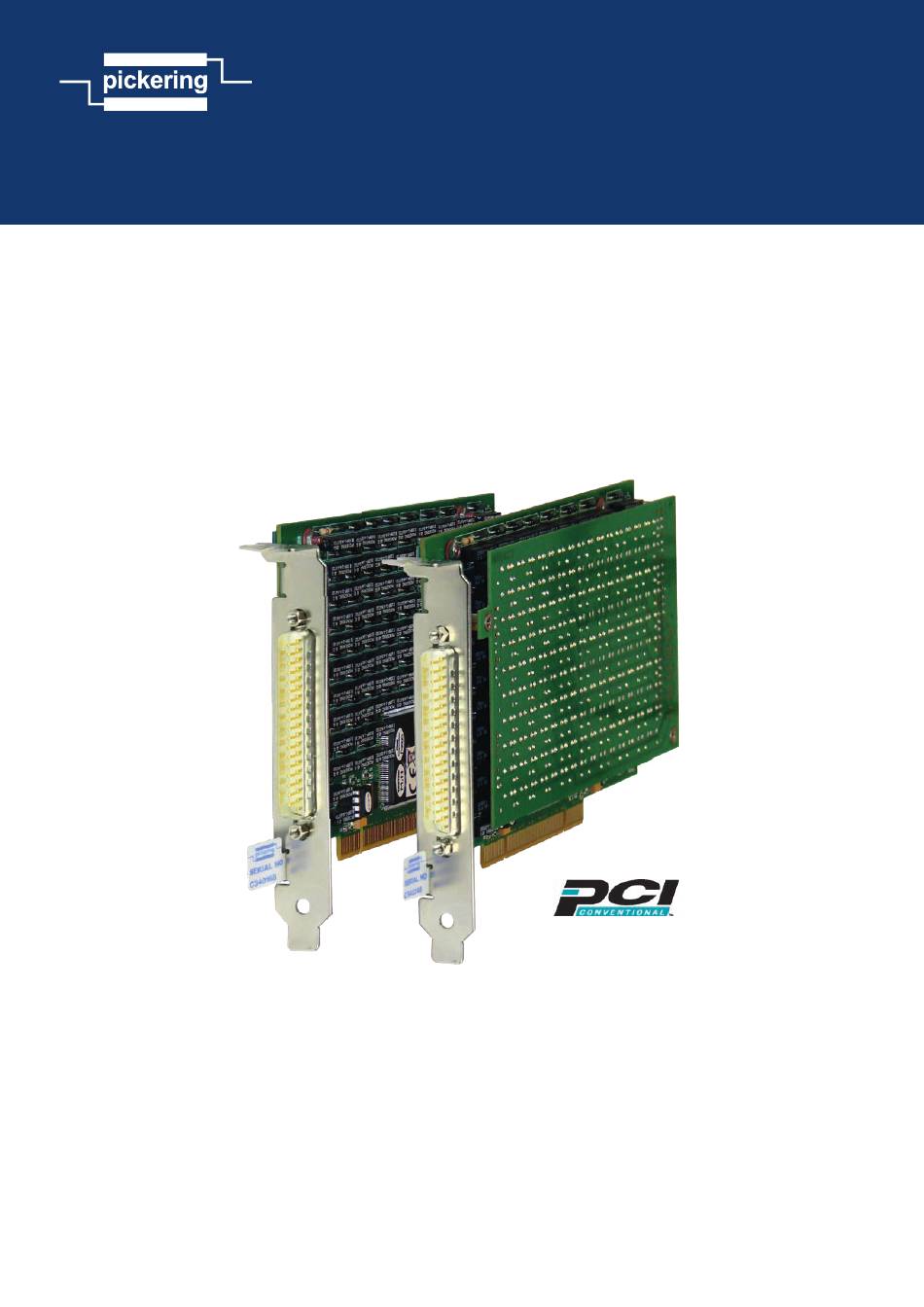

- Page 1 50-295A User Manual PCI Programmable Resistor Card pickeringtest.com Issue 1.2 May 2021...
- Page 2 © COPYRIGHT (2021) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 PROGRAMMABLE RESISTOR CARD 50-295A Page (IV) Page (IV) -
Page 5: Table Of Contents
Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PCI Cards ....4.1 Card Architecture ..............4.2 Programming The Card ............4.2 Sub-Units ................4.5 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1... - Page 6 THIS PAGE INTENTIONALLY BLANK PROGRAMMABLE RESISTOR CARD 50-295A Page (VI)
-
Page 7: Warnings And Cautions
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This card must not be used for the switching of Mains Circuits. For the switching of voltages up to the card’s full specification, Secondary Circuit power supplies and the Device Under Test must be... - Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. PROGRAMMABLE RESISTOR CARD 50-295A Page (VIII) PCI REED RELAY CARD 50-110 / 115 / 120 / 125...
-

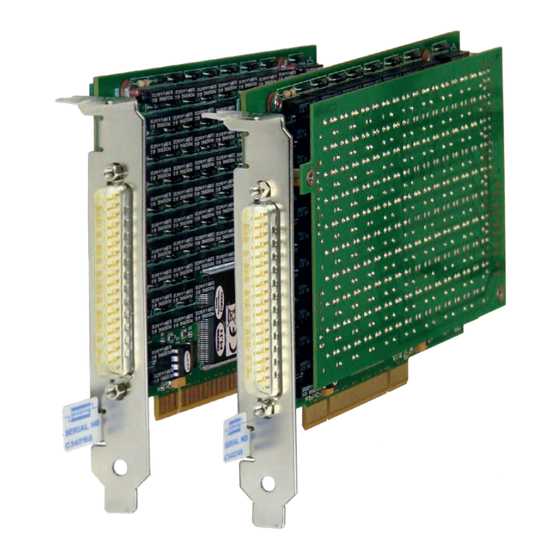

Page 9: Technical Specification
Built to Order y VISA & Kernel Drivers Supplied for Windows Plus Soft Front Panel y 3 Year Warranty The 50-295A is a programmable resistor card with up Number to 18-channels of 8-bit resolution resistor chains in a Resolution Resistance Range... - Page 10 For pin outs please refer to the operating manual. ±5 % (>1 MΩ) PCI Compliance Residual Resistance, typical: 1 Ω (8-bit) The 50-295A/296A comply with the PCI Specification 2.0 (when chain resistance is set to 0 Ω) 1.5 Ω (12-bit) (issued Feb 2004). 2 Ω (16-bit) Signalling Environment: 33 MHz, 32-bit Universal 3 Ω...
- Page 11 Pickering PXI modules are designed and manufactured on our own flexible manufacturing lines, giving complete Mating Connectors & Cabling product control and enabling simple customization to meet For connection accessories for the 50-295A/296A series very specific requirements. please refer to the 90-007D...
- Page 12 To learn more, please go to: pickeringrelay.com Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT.
- Page 13 Three Year Warranty & Guaranteed Long-Term Support All standard products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of three years from the date of delivery to the original purchaser. Extended warranty and service agreements are available for all our modules and systems with various levels to suit your requirements.
- Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK PROGRAMMABLE RESISTOR CARD 50-295A Page 1.6...
-
Page 15: Technical Description
A functional block diagram is provided in Figure 2.1. Figures 2.2 and 2.3 provide examples of resistor chain schematic diagrams for the 50-295A-121-18/8 version of the card. The Programmable Resistor Card is powered by +5V inputs via the edge connector. The interface to the user test equipment is via the front panel mounted 37-pin D-type connector, J2. - Page 16 RL80 RO10 Chan10_in LK10 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 RL73 RL74 RL75 RL76 RL77 RL78 RL79 RL80 To Daughter Card Figure 2.2 - Programmable Resistor Card 50-295A-121-18/8: Motherboard Example Schematic Diagram PROGRAMMABLE RESISTOR CARD 50-295A Page 2.2...
- Page 17 RL156 RL157 RL158 RL159 RL160 RO20 Chan20_in 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 109P-1-A-5 RL153 RL154 RL155 RL156 RL157 RL158 RL159 RL160 Figure 2.3 - Programmable Resistor Card 50-295A-121-18/8: Daughterboard Example Schematic Diagram PROGRAMMABLE RESISTOR CARD 50-295A Page 2.3...
- Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK PROGRAMMABLE RESISTOR CARD 50-295A Page 2.4...
-
Page 19: Installation
Modular products require installation in a suitable chassis. The card is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the card for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. -
Page 20: Hardware Installation
8. Power-up the host system. SOFTWARE INSTALLATION First install the appropriate Pickering PCI switch card drivers by running the installer program Setup.exe (provided in a compressed zip file), either from the CD-ROM supplied, or by downloading the latest version from our website pickeringtest.com... -
Page 21: Testing Operation
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. - Page 22 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK PROGRAMMABLE RESISTOR CARD 50-295A Page 3.4...
-
Page 23: Programming Guide
SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PCI CARDS For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads... -
Page 24: Programming The Card
MODULE ARCHITECTURE The 8-bit version of the 50-295A Resistor Card is available with 10 or 18 separate channels which can be programmed with values between 0Ω and 255Ω. 12-bit, 16-bit and 24-bit versions are also available which have fewer channels and a greater resistance range - see the Specifications section for details. - Page 25 SECTION 4 - PROGRAMMING GUIDE pickering Here are examples of using the drivers with the 8-bit versions of the 50-295A. Other versions operate in the same way but have a different number of bits in their sub-units. Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;...
- Page 26 // Sub-unit is 8 bits wide, so 1 ViUInt32 value is needed to hold the entire pattern ViUInt32 data[1]; data[0] = 0x03; // Operates bits 1 and 2 pipx40_setChannelPattern( vi, sub_unit, data); data[0] = 0; // Releases all bits of channel pipx40_setChannelPattern( vi, sub_unit, data); PROGRAMMABLE RESISTOR CARD 50-295A Page 4.4...
-
Page 27: Sub-Units
SECTION 4 - PROGRAMMING GUIDE pickering Table 4.1 - 50-295A - 8-Bit Versions - Sub-Unit, Resistor & Relay Cross Reference Sub- Resistor Relay Sub- Resistor Relay Sub- Resistor Relay Resistor Resistor Resistor Unit Value Unit Value Unit Value 1Ω 1Ω... - Page 28 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.2 - 50-295A - 12-Bit Versions - Sub-Unit, Resistor & Relay Cross Reference Sub- Resistor Relay Sub- Resistor Relay Sub- Resistor Relay Resistor Resistor Resistor Unit Value Unit Value Unit Value 1Ω 256Ω...
- Page 29 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.3 - 50-295A - 16-Bit Versions - Sub-Unit, Resistor & Relay Cross Reference Sub- Resistor Relay Sub- Resistor Relay Sub- Resistor Relay Resistor Resistor Resistor Unit Value Unit Value Unit Value 1Ω 256Ω...
- Page 30 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.4 - 50-295A - 24-Bit Versions - Sub-Unit, Resistor & Relay Cross Reference Sub- Resistor Relay Sub- Resistor Relay Sub- Resistor Relay Resistor Resistor Resistor Unit Value Unit Value Unit Value 1Ω 256Ω...
-
Page 31: Connector Information
Figure 5.1 - Resistor Card Pinout: Figure 5.2 - Resistor Card Pinout: 50-295A-021-3/24 50-295A-121-6/24 3 Channel, 24-Bit 6 Channels, 24-Bit (37-pin Male D-type Connector (37-pin Male D-type Connector Viewed From Front of Module) Viewed From Front of Module) PROGRAMMABLE RESISTOR CARD 50-295A Page 5.1... - Page 32 50-295A-021-5/12 50-295A-121-10/12 & 50-295A-021-5/16 & 50-295A-121-10/16 5 Channels, 12 & 16-Bit 10 Channels, 12 & 16-Bit (37-pin Male D-type Connector (37-pin Male D-type Connector Viewed From Front of Module) Viewed From Front of Module) PROGRAMMABLE RESISTOR CARD 50-295A Page 5.2...
- Page 33 Figure 5.5 - Resistor Card Pinout: Figure 5.6 - Resistor Card Pinout: 50-295A-021-10/8 50-295A-121-18/8 10 Channels, 8-Bit 18 Channels, 8-Bit (37-pin Male D-type Connector (37-pin Male D-type Connector Viewed From Front of Module) Viewed From Front of Module) PROGRAMMABLE RESISTOR CARD 50-295A Page 5.3...
- Page 34 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK PROGRAMMABLE RESISTOR CARD 50-295A Page 5.4...
-
Page 35: Trouble Shooting
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible... - Page 36 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK PROGRAMMABLE RESISTOR CARD 50-295A Page 6.2...
-
Page 37: Maintenance Information
PCB. The tables can be used in the fault finding process and should be used in conjunction with the corresponding PCB layout diagrams to identify the position of faulty relays. PCI REED RELAY CARD 50-110 / 115 / 120 / 125 PROGRAMMABLE RESISTOR CARD 50-295A Page 7.1 Page 7.1... - Page 38 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - 50-295A - 8-Bit Versions - Relay Look-Up Table Motherboard Daughterboard Resis- Resis- Resis- Resis- Chan. Relay Chan. Relay Chan. Relay Chan. Relay RL41 RL81 RL121 RL42 RL82 RL122 RL43 RL83 RL123...
- Page 39 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.2 - 50-295A - 12-Bit Versions - Relay Look-Up Table Motherboard Daughterboard Resis- Resis- Resis- Resis- Chan. Relay Chan. Relay Chan. Relay Chan. Relay RL41 RL81 RL121 RL42 RL82 RL122 RL43 RL83 RL123...
- Page 40 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.3 - 50-295A - 16-Bit Versions - Relay Look-Up Table Motherboard Daughterboard Resis- Resis- Resis- Resis- Chan. Relay Chan. Relay Chan. Relay Chan. Relay RL41 RL81 RL121 RL42 RL82 RL122 RL43 RL83 RL123...
- Page 41 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.4 - 50-295A - 24-Bit Versions - Relay Look-Up Table Motherboard Daughterboard Resis- Resis- Resis- Resis- Chan. Relay Chan. Relay Chan. Relay Chan. Relay RL41 RL81 RL121 RL42 RL82 RL122 RL43 RL83 RL123...
- Page 42 RL73 RL65 RL66 RL67 RL75 RL74 RL70 RL69 RL68 RL76 RL77 RL78 RL71 RL79 RL72 RL80 SPARE Figure 7.1 - 50-295A Motherboard Component Layout RL88 RL87 RL86 RL85 RL84 RL83 RL82 RL81 RL96 RL95 RL94 RL93 RL92 RL91 RL90 RL89...
