Summary of Contents for Pickering 40-755A-9 Series

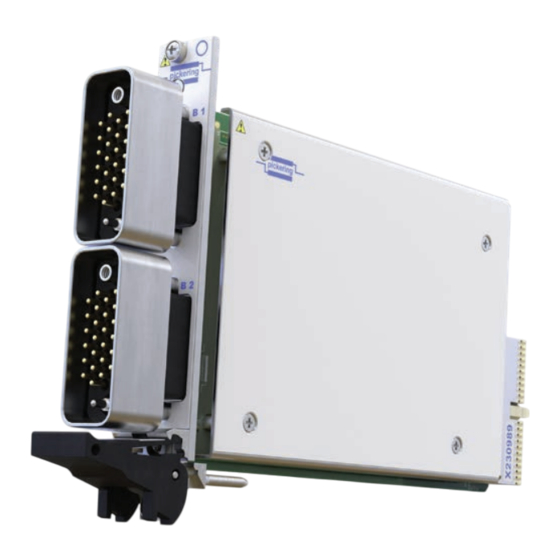

- Page 1 40/42-755A-9xx User Manual PXI/PXIe SP4T + SPDT RF Switch Module pickeringtest.com Issue 1.0, September 2023...
- Page 2 © Copyright (2023) Pickering Interfaces. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
Product Safety Safety Symbols The following safety symbols may be used on the product and throughout the product documentation. Meaning/Description Symbol PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode. -
Page 5: Table Of Contents
Pre Operation Checks ..............................3.1 Hardware Installation ..............................3.2 Software Installation ..............................3.2 Testing Operation ................................3.3 Section 4 Programming Guide .................................4.1 Programming Options for Pickering PXI/PXIe Modules ..................4.1 Module Architecture ..............................4.2 Programming the Module ............................4.3 Section 5 Connector Information ..............................5.1 Section 6 Trouble Shooting ................................6.1 Section 7 Maintenance Information ..............................7.1... -
Page 6: Warnings And Cautions
Unused slots in the PXI/PXIe/LXI chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals. - Page 7 Warnings & Cautions CAUTION - Product Documentation Symbol Suitably qualified & trained users should ensure that the accompanying documentation is fully read and understood before attempting to install or operate the product. Safety Instructions Safety Instructions All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer to the Maintenance Section).
- Page 8 PXI software environments. In addition, the PXI which simplify fault-finding by quickly testing the system and version of the module can be supported in all Pickering’s LXI Modular graphically identifying the faulty relay. Chassis, allowing the use of a PXI or LAN controlled switching solution For more information go to: pickeringtest.com/ebirst...
- Page 9 Specifications 4x-755A-9xx Section 1 - Technical Specification 4x-755A-902 Specification - 50 Ω with Multiway Connectors RF Specification - SP4T Switches Impedance: 50 Ω RF Frequency Range: DC to 1.3 GHz Insertion Loss: <1 dB to 500 MHz (typical) <2 dB to 1 GHz (typical) <3.5 dB to 1.3 GHz (typical) VSWR: <1.5:1 to 500 MHz (typical)
- Page 10 Specifications 4x-755A-9xx Section 1 - Technical Specification 4x-755A-902 Specification - 50 Ω with Multiway Connectors - Continued SPDT Switches - Typical insertion loss plot (dB) Typical bank to bank crosstalk plot (dB) SPDT Switches - Typical VSWR plot 40-755A-902 8off SP4T + 4off SPDT RF Switch with MS-M RF multiway connectors SPDT Switches - Typical channel to common isolation plot (dB) pickeringtest.com...
- Page 11 Specifications 4x-755A-9xx Section 1 - Technical Specification Power Requirements - 40-755A-9xx Connectors 40-755A - PXI bus via 32-bit P1/J1 backplane connector. +3.3 V +5 V +12 V -12 V 42-755A - PXIe bus via XJ3 and XJ4 backplane connectors. 0.65 A Signals via front panel RF connectors: Power Requirements - 42-755A-9xx •...
- Page 12 Please contact your local sales office to discuss. Pickering can supply cable assemblies for all its modules. The cable shown (MS-M RF to unterminated coax) is suitable for multiway connector versions of the 4x-755A-9xx.
-
Page 13: Technical Description
Section 2 - Technical Description Functional Description A functional block diagram is provided in Figure 2.1. The RF Switch Module is powered by +3.3V and +5V (PXI) or +3.3V and +12V (PXIe) supplies via the backplane connectors. The interface to the user test equipment is via the front panel mounted coaxial connectors which can be - depending upon the model number - 26-pin multiway or individual SMB coaxial connectors. -
Page 14: Installation
Modular products require installation in a suitable PXI/PXIe/LXI chassis. The module is designed for indoor use only. Pre-operation Checks (Unpacking) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. -
Page 15: Hardware Installation
If you are not a LabVIEW user you should choose the “full” version, and once that has been installed run the LabVIEW Runtime Engine installer via the shortcut on the Programs>>Pickering menu. In the absence of LabVIEW the Runtime Engine is required to support the Pickering Test Panels application. -
Page 16: Testing Operation
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI/PXIe or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. Panels can be opened simultaneously for all the installed cards. - Page 17 Section 4 - Programming Programming options for Pickering Interfaces PXI/PXIe Modules For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: pickeringtest.com/support/software-drivers-and-downloads...
-
Page 18: Module Architecture
Section 4 - Programming Module Architecture The 4x-755A is a single pole RF switch available with three, four or eight banks of 4 channel (SP4T) switches plus one, two or four banks of 2 channel (SPDT) switches. Connections are made by activating a channel to make a connection between the common terminal and the corresponding channel terminal. - Page 19 Section 4 - Programming Bit 1 Bank 1 Bit 2 COM1 Bit 3 Sub- Bit 4 unit 1 Bank 2 Bit 1 Bit 2 COM2 Bit 3 Sub- Bit 4 Module Types Sub Unit Number Sub Unit Type Description unit 2 MUX(4x1) RF Switch Bank 1 Bit 1...
-
Page 20: Programming The Module
Once the drivers are installed the manual “Sys40Prg.pdf” and driver help files which fully describes these functions can be found in the Pickering folder(s) or the Pickering entries on your Start Menu. The card must be opened before use and closed after using the following function calls: Direct I/O Driver - Open with PIL_OpenCards or PIL_OpenSpecifiedCard and close with PIL_CloseCards or PIL_CloseSpecifiedCards respectively. - Page 21 Section 4 - Programming Using Pickering Drivers In LabVIEW Most Pickering drivers include a LabVIEW wrapper to permit full operation of the Pickering product from the LabVIEW environment. These wrappers are normally installed to the current LabVIEW folder system during installation of the Pickering driver.
- Page 22 Section 5 - Connectors Upper Connector 4:1 MUX 1 MUX Bank Connection COM1 COM1 CH1* 4:1 MUX 2 COM3 COM2 CH1* 4:1 MUX 3 COM5 CH1* COM3 Upper 4:1 MUX 4 Connector COM7 CH1* ‘Bank A’ COM4 4:1 MUX 5 COM9 CH1* COM5...
- Page 23 Section 5 - Connectors 4:1 MUX 1 MUX Bank Connection COM1 COM1 CH1* 4:1 MUX 2 COM2 COM2 CH1* 4:1 MUX 3 COM3 Upper CH1* COM3 Connector ‘Bank A’ 4:1 MUX 4 COM4 CH1* COM4 COM5 SPDT 5 CH1* COM5 COM6 SPDT 6 CH1*...
- Page 24 Section 5 - Connectors 4:1 MUX 1 COM1 4:1 MUX 2 COM2 pickering 4:1 MUX 3 COM3 4:1 MUX 4 COM4 4:1 MUX 5 COM5 COM9 4:1 MUX 6 COM6 4:1 MUX 7 COM6 COM8 COM7 COM1 COM3 COM5 COM7...
- Page 25 Section 5 - Connectors pickering 4:1 MUX 1 COM1 COM1 COM2 4:1 MUX 2 COM2 4:1 MUX 3 COM3 SPDT 4 COM4 COM3 COM4 Figure 5.4 - Connector Positioning: 3x-755A-913/933 3-off 4-Channel RF Multiplexer + 1-off SPDT RF Switch (18-off SMB Coaxial Connectors) pickeringtest.com...
-
Page 26: Trouble Shooting
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible including a copy of the diagnostic... -
Page 27: Maintenance Information
For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading. - Page 28 Section 7 - Maintenance Information Table 7.1 - Relay Look-up Table For 4x-755A-9xx RF Switch Module Relays Energised Switch Bank Signal Path 4x-755A-902/922 4x-755A-903/923 4x-755A-912/932 4x-755A-913/933 COM1 to CH1 None None None None COM1 to CH2 RL12 RL12 RL12 RL12 COM1 to CH3 RL11 RL11...
- Page 29 Section 7 - Maintenance Information RL12 RL32 RL52 RL72 RL14 RL13 RL33 RL53 RL73 RL24 RL22 RL42 RL62 RL82 RL34 RL23 RL43 RL63 RL83 RL44 Figure 7.1 - RF Switch Module 4x-755A-9xx: Component Layout pickeringtest.com Page 7.3...
