Fountain Components
Item Description
Charleston
Fountain Small
Bowl
Charleston
Fountain Large
Bowl
Charleston
Fountain Large
Pedestal
Richmond Hill
Fountain Finial
Richmond Hill
Fountain Pump
Cover
Richmond Hill
Fountain Pump
Cover Door
Richmond Hill
Fountain Base
Richmond Hill
Fountain Base
Door
Fountain Information:
• Three people are recommended for the installation this fountain!
• This fountain holds approximately 20 gallons of water.
• This fountain uses a medium fountain cover: FTNCOV-MED
• Compatible with #10 Refill Device
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPP525 - 525 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-256B
1
FT-256E
1
FT-256F
1
FT-387A
1
FT-387C
1
FT-387D
1
FT-387G
1
FT-387H
1

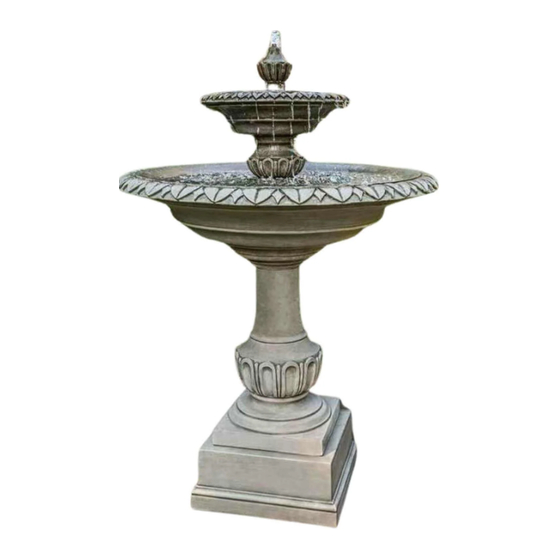

FT-387 Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK500 Pump
(use adapter indictaed)
#10 Stopper
#7 Drain Stopper
Approx. 2" length of 5/8" clear vinyl
Approx. 24" length of 1/2" black
non-kink tubing
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
tubing
1
Wedges
4
1
rev 9/2021
Advertisement
Related Manuals for Campania International FT-387
Summary of Contents for Campania International FT-387
- Page 1 FT-387 Fountain Assembly Instructions Fountain Information: • Three people are recommended for the installation this fountain! • This fountain holds approximately 20 gallons of water. • This fountain uses a medium fountain cover: FTNCOV-MED • Compatible with #10 Refill Device •...
-
Page 2: Fountain Set-Up
FT-387 Fountain Assembly Instructions Three people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin. - Page 3 FT-387 Fountain Assembly Instructions Three people are recommended for the installation of this fountain! Step 8 - Place the pump cover (FT-387C) over the pump. Step 9 - Feed the tubing connected to the pump through the top of the pump cover (FT-387C).
- Page 4 FT-387 Fountain Assembly Instructions Three people are recommended for the installation of this fountain! Step 14 - Place the base door (FT-387H) into the base (FT-387G). Step 15 - Fill the fountain with water. FT-387H (7 lbs) 7"L x 2.5"W x 4.5"H...
-
Page 5: Maintenance
Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - Ensure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
