Fountain Components
Item Description
Mondrian
Fountain -
Pump Cover
Modrian
Fountain, Tall -
Spiller Stop
Mondrian
Fountain, Tall -
Water Feature
Mondrian
Fountain, Tall -
Basin
Mondrian
Fountain, Tall
- Base
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 10 gallons of water.
• This fountain uses a large fountain cover: FTNCOV-LG
• Compatible with #10 Refill Device and LED kit
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPF525 - 525 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Safety Gloves
Component
Quantity
Item #
FT-379C
1
FT-380A
1
FT-380B
1
FT-380D
1
FT-380E
1

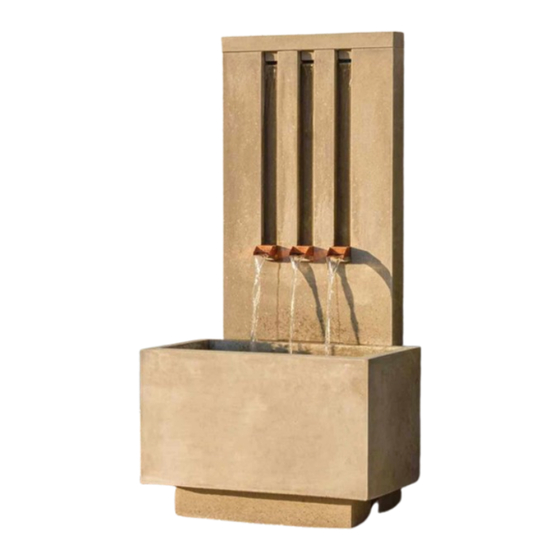

FT-380 Mondrian Fountain, Tall
Assembly Instructions
Pump Kit Parts List
8" length of 1/2" black non-kink tubing
1 1/2" length of 5/8" clear-tubing
12" length of 1/2" black non-kink tubing
1 1/2" length of 5/8" clear tubing
MADE IN USA
Component
PK 500
(use adapter indicated)
#10 Stopper
Tubing Assembly #1
Tubing Assembly #2
Copper mesh
(FT-379CP)
Copper spillers
(FT-379SPL)
front view
Blue Matala filter square
Silicone
Wedges
Hose Clamps
Proudly
Quantity
1
1
1
1
1
2
1
3
3
1
2
3
rev 08/17/2023
Advertisement
Related Manuals for Campania International FT-380
Summary of Contents for Campania International FT-380
- Page 1 FT-380 Mondrian Fountain, Tall Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 10 gallons of water. • This fountain uses a large fountain cover: FTNCOV-LG • Compatible with #10 Refill Device and LED kit •...
- Page 2 FT-380 Mondrian Fountain, Tall Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-380 Mondrian Fountain, Tall Assembly Instructions Step 12 - Place pump cover (FT-379C) around the pump and the cord. Be sure that it is centered under the three spouts in the water feature (FT-380B). Step 13 – Carefully place the copper mesh (FT-379CP) into the recess at the top of the pump cover (FT-379C).
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - Ensure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
