Campania International FT-289 La Mirande Assembly Instructions

Download this manual

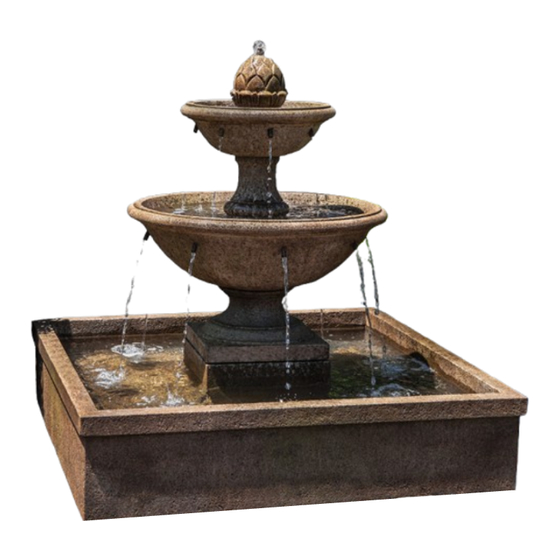

FT-289 La Mirande Fountain

(8 Pieces)

Components and Parts List

FT-281D

46.5"x46.5"x11"

572 lb

FT-289F

14"x14"x9.75"

33 lb

FT-289E

28"x28"x17"

145 lb

FT-273C

13.75"x9"x9"

30 lb

FT-289B

17"x17"x6.25"

25 lb

Revised July 13, 2016

FT-289A

12.75"x7"

15 lb

FT-289G

6"x7"x2"

5 lb

FT-273D

6"x4.75"x2"

5 lb

Pump Kit and Pack List

PK500

Pk800

Metal Hose Clamps (6)

Wedges (6)

12" length 5/8" non kink hose (2)

Rubber stopper #10 (1)

Putty (1)

Page 1 FT-289 La Mirande Fountain (8 Pieces) Components and Parts List Revised July 13, 2016 FT-289A FT-281D 46.5”x46.5”x11” 12.75”x7” 572 lb 15 lb FT-289F FT-289G 14”x14”x9.75” 6”x7”x2” 33 lb 5 lb FT-289E FT-273D 28”x28”x17” 6”x4.75”x2” 145 lb 5 lb FT-273C 13.75”x9”x9”...
Page 2 FT-289 La Mirande Fountain (8 Pieces) Assembly Instructions Revised July 13, 2016 1. Make sure you are assembling your fountain on a level surface like a concrete slab or pea gravel. 2. This fountain will need to be installed on a surface capable of holding a minimum of 900 pounds in approximately a 5 square foot area.
Page 3 FT-289 La Mirande Fountain (8 Pieces) Assembly Instructions WINTER CARE AND GENERAL FOUNTAIN INSTRUCTIONS - W I N T E R C A R E - Fountain bowls/tops and other fountain components, which collect water, should not be left outside in the winter since any component, which fills with water and freezes may crack.
