Fountain Components
Item Description

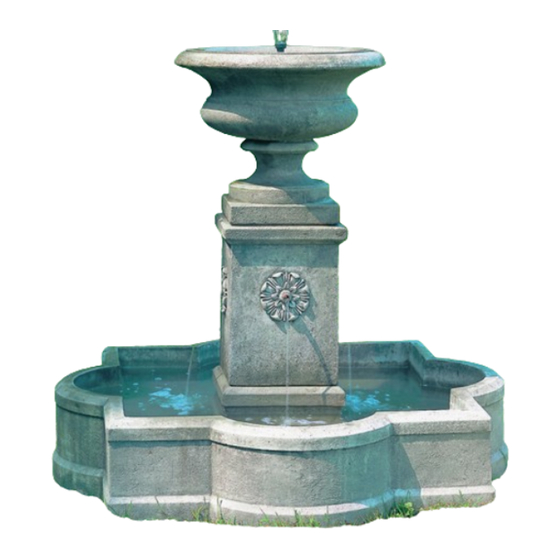

Palazzo
Fountain -
Pump Cover
Palazzo
Fountain -
Pump Cover
Door
Palazzo
Quarterfoil
Basin
Palazzo Urn
Palazzo Column
- Fountain
Fountain Information:
• Three people are recommended for the installation of this fountain!
• This fountain holds approximately 30 gallons of water.
• This fountain uses a medium fountain cover: FTNCOV-MED
• Compatible with #10 Refill Device and LED kits
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPF525 - 525 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-
1
29B/30C
FT-
1
29B/30CC
FT-
1
29C/30D
FT-30A
1
FT-30B
1
FT-30 Palazzo Urn Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK500 Pump
(use adapter indicated)
#10 Stopper
1/2" x 1/2" x 1/2" T Connector
Approx. 12" length of 1/2" non-kink
Approx. 6" length of 1/2" non-kink
Approx. 30" length of 1/2" black
non-kink tubing
8" length of 3/8" i.d. copper pipe
6.5" length of 3/8" i.d. copper pipe
3/8" i.d. 1/2" o.d. copper coupling
plastic spray head
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
tubing
2
tubing
1
1
1
3
1
Wedges
4
5
rev 6/8/2020
