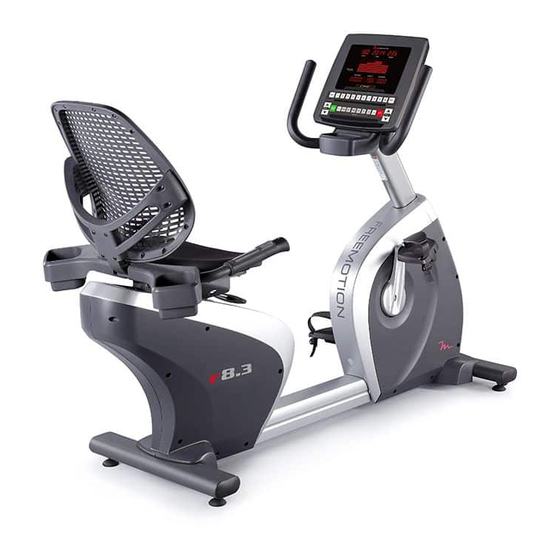

Model No. VMEX82014.1
Serial No.
USER'S MANUAL
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if
parts are damaged or missing,
please see HOW TO CONTACT
CUSTOMER CARE on the back
cover of this manual.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
www.freemotionfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the r8.3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Freemotion r8.3

Summary of Contents for Freemotion r8.3

  • Page 1 Model No. VMEX82014.1 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, please see HOW TO CONTACT CUSTOMER CARE on the back cover of this manual.

  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. FREEMOTION is a registered trademark of ICON Health & Fitness, Inc. POLAR is a registered trademark of Polar Electro Oy.

  • Page 3: Important Precautions

    FreeMotion Fitness assumes no responsibility for personal injury or prop- erty damage sustained by or through the use of this product.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the back cover of this FREEMOTION R 8.3 exercise bike. The R 8.3 manual. To help us assist you, note the product model ® exercise bike provides an impressive selection of fea- number and serial number before contacting us.

  • Page 5: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 6: Assembly

    ASSEMBLY • Assembly requires two persons. • To identify small parts, see page 5. • Place all parts in a cleared area and remove the • Assembly can be completed using the included packing materials. Do not dispose of the packing tools.
  • Page 7 2. Have a second person hold the Upright (4) near the Frame (1). See the inset drawing. Connect the Upper Pulse Wire (99) to the Lower Pulse Wire (124), connect the Upper Main Wire (79) to the Lower Main Wire (123), connect the Upper Power Wire (115) to the Lower Power Wire (122), and con- nect the Upper TV Coaxial Cable (100) to the Lower TV Coaxial Cable (121).
  • Page 8 4. Tip: Be careful not to drop a screw between the Left and Right Front Shields (21, 22). Attach the Front Shield Cap (19) to the Upright (4) with two M5 x 12mm Screws (78); start both Screws, and then tighten them. Next, press the Front Shield Cover (20) onto the Left and Right Front Shields (21, 22).
  • Page 9 6. Have a second person hold the Console (5) near the Handlebar (47). Connect the wires on the Console (5) to the Upper Main Wire (79), to the Upper Pulse Wire (99), and to the Ground Wire (164). Note: There is a small wire on the back of the Console that will not be used.
  • Page 10 8. Tip: Avoid pinching the wires. Attach the Console Cover (46) to the Handlebar (47) with Avoid pinching four M5 x 10mm Screws (89); start all the the wires Screws, and then tighten them. See step 5. Tighten the two M5 x 10mm Screws (89) and the two M5 x 30mm Screws (88).

  • Page 11: How To Upgrade The Console

    10. Slide the Backrest (13) onto the Backrest Frame (14) and onto the Seat Frame (18). Attach the Backrest (13) to the Seat Frame (18) with four M6 x 15mm Screws (128), four M6 Split Washers (96), and four M6 x 1mm Washers (97); do not tighten the Screws yet.

  • Page 12: How To Use The Exercise Bike

    HOW TO USE THE EXERCISE BIKE HOW TO PLUG IN THE INCLUDED POWER Plug the power ADAPTER adapter for the optional digital TV into the upper The exercise bike can be used with or without the included power adapter. When the exercise bike is digital TV power used without the power adapter, power will be supplied receptacle (B) on...
  • Page 13 Hawaii, and Canada) and are then subject to the terms provided by that country’s local authorized compliance with electrical codes or the specifications FreeMotion Fitness, Inc. representative. in this manual, or failure to provide reasonable and necessary maintenance as outlined in this manual.
  • Page 14 CONSOLE DIAGRAM FEATURES OF THE CONSOLE To activate the console, see page 15. To turn off the console, see page 15. To use the charging port, see page 15. The console offers an impressive array of features designed to make your workouts more effective and To use the quick start mode, see page 15.
  • Page 15 HOW TO ACTIVATE THE CONSOLE HOW TO USE THE QUICK START MODE If the exercise bike has a basic console, it can be 1. Turn on the console. used with or without the power adapter. See HOW TO ACTIVATE THE CONSOLE at the To use the exercise bike without the power adapter, left.
  • Page 16 Speed—This display will show your pedaling IMPORTANT: If you use both heart rate monitors at the same time, the console will not speed in miles or kilometers per hour. display your heart rate accurately. Note: The console can display speed in either miles per hour or kilometers per hour.
  • Page 17 6. Pause the workout if desired. Average Speed—This display will show your average pedaling speed in miles per hour (MLH) or To pause the workout, press the Stop button on the kilometers per hour (KMH). console or on the left seat handlebar. Note: If the Calories Burned—This display will show the pedals are not moved and no buttons are pressed for a short while, the console will exit the quick start...
  • Page 18 HOW TO USE AN ONBOARD PROGRAM During the program, the profile in the matrix will show your progress. The flashing segment of the 1. Turn on the console. profile represents the current segment of the pro- gram. The height of the flashing segment indicates See HOW TO ACTIVATE THE CONSOLE on the resistance level for the current segment.
  • Page 19 HOW TO USE THE GOAL PROGRAM If you selected a distance goal, the words ENTER DISTANCE will scroll across the lower 1. Turn on the console. displays. Press the numbered buttons to enter your desired distance goal. If necessary, press the Clear See HOW TO ACTIVATE THE CONSOLE on button to cancel your entry.
  • Page 20 8. Follow your progress. 10. Pause the workout if desired. If you selected a time goal, the time display will See step 6 on page 17. count down until your time goal is reached. 11. End the workout and view the workout If you selected a distance goal, the distance summary.
  • Page 21 HOW TO USE THE HEART RATE CONTROL 5. Enter your age. PROGRAM The words ENTER AGE will scroll across the lower 1. Turn on the console. displays. Press the numbered buttons to enter your age. If necessary, press the Clear button to cancel See HOW TO ACTIVATE THE CONSOLE on your entry.
  • Page 22 IMPORTANT: You cannot adjust the resistance 10. End the workout and view the workout of the pedals manually during the heart rate summary. control program. See step 7 on page 17. The program will continue in this way until the last segment ends.
  • Page 23 HOW TO USE THE WATTS PROGRAM IMPORTANT: The watts target is intended only to provide motivation. Make sure to exercise at 1. Turn on the console. an intensity that is comfortable for you. See HOW TO ACTIVATE THE CONSOLE on If the resistance level is too high or too low, you page 15.
  • Page 24 HOW TO USE THE FITNESS TEST During the fitness test, the console will automati- cally adjust the resistance of the pedals. 1. Turn on the console. IMPORTANT: You cannot adjust the resistance of the pedals manually during the fitness test. See HOW TO ACTIVATE THE CONSOLE on page 15.
  • Page 25 FITNESS TEST RESULTS CHARTS Male Test Result Excellent Good Average Fair Poor Female Test Result Excellent Good Average Fair Poor...
  • Page 26 HOW TO CHANGE CONSOLE SETTINGS 4. Change settings as desired. 1. Turn on the console. The following settings can be changed: Language—The selected language will appear in See HOW TO ACTIVATE THE CONSOLE on page 15. the displays. The console will display text mes- sages in the selected language.

  • Page 27: Compliance Information

    COMPLIANCE INFORMATION UNITED STATES FCC Statement. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm- ful interference in a residential installation.

  • Page 28: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE If a replacement power adapter is needed, call the telephone number on the cover of this manual. Regular maintenance is important for optimal IMPORTANT: To avoid damaging the console, use performance and to reduce wear. Inspect and properly only a manufacturer-supplied regulated power tighten all parts each time the exercise bike is used.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 30: Part List

    PART LIST Model No. VMEX82014.1 R0116A Key No. Qty. Description Key No. Qty. Description Frame Receptacle Plug Magnet Large Accessory Tray Reed Switch Clip Short Foam Grip Upright Seat Handle Spring Console Seat Handle Bushing M8 Nut Left Rail Bushing Wear Cover Wheel Idler Bearing...
  • Page 31 Key No. Qty. Description Key No. Qty. Description M10 x 12mm Stainless Screw M6 x 1mm Large Washer M10 Stainless Washer Crank Nut M6 x 12mm Screw Crank Arm Cap M6 x 1.5mm Washer Power Adapter Board Wire M6 x 40mm Screw Smart Shelf M6 x 15mm Stainless Screw Console Front...

  • Page 32: Exploded Drawing

    EXPLODED DRAWING A Model No. VMEX82014.1 R0116A...
  • Page 33 EXPLODED DRAWING B Model No. VMEX82014.1 R0116A...
  • Page 34 EXPLODED DRAWING C Model No. VMEX82014.1 R0116A...
  • Page 35 EXPLODED DRAWING D Model No. VMEX82014.1 R0116A...

  • Page 36: How To Contact Customer Care

    WHAT TO DO IF SERVICE IS REQUIRED WARRANTY PERIODS AND COVERAGE FreeMotion Fitness warranty service may be obtained by FreeMotion Fitness warrants this product to be free from contacting the authorized dealer from which you purchased defects in workmanship and material under normal use and this product.
