This manual is based on the date as shown in the right and specifications
are subject to change without notice for quality improvement.

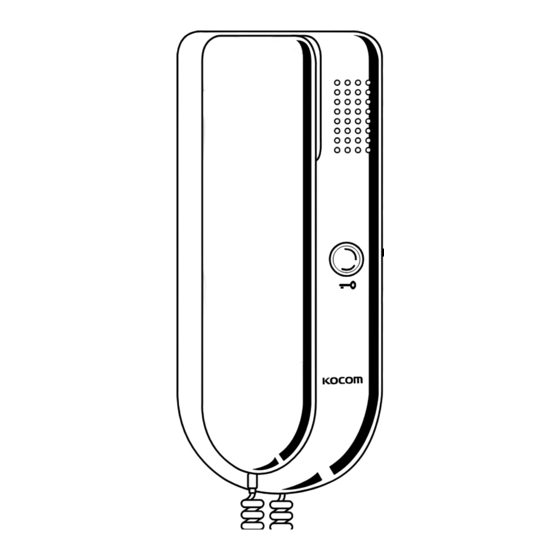

KDP-501A/KDP-501D
Features
� Gentle chime sound.
� KDP-501A: AC 220V (only) or 110V (only) or 127V (only)
� KDP-501D: Used DC 6V (4Piece of 1.5V batteries
into housing, lasts 10months)
� Communication range: � 0.65mm wire,
300m line
� Can be combined with door opener.
� Easily mounted on wall,desk
0507
MANUAL FOR OPERATION AND INSTALLATION
MS-2D
KDP-501A or KDP-501D
Thank you very much
for purchasing KOCOM
Doorphone.
please read this manual
thoroughly to ensure
correct usage,
before operating
or
DS-2D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KDP-501A
Summary of Contents for KOCOM KDP-501A
- Page 1 KDP-501A/KDP-501D MANUAL FOR OPERATION AND INSTALLATION Features � Gentle chime sound. � KDP-501A: AC 220V (only) or 110V (only) or 127V (only) � KDP-501D: Used DC 6V (4Piece of 1.5V batteries Thank you very much into housing, lasts 10months) for purchasing KOCOM �...
- Page 2 1) This product is produced under strict quality control and inspection procedures. 2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge.
- Page 3 Warnings Cautions for Safety Warnings for disposal For safe use, please stick to the following cautions. � Do not throw used-up battery into fire places, which may cause fire and explosion. Cautions �Read this cautions carefully and keep it within easy reach of you. �For right installation, read this cautions thoroughly.
- Page 4 Warnings Warnings Cautions for Use Cautions for Use �Do not install the product at bathroom or at the place near a washing machine, or at other humid places. It may cause fire or � This product is only for home. Do not the product for industrial or military use. electric shock.
- Page 5 - This equipment is electronically precision equipment, so do not arbitrarily disassemble it. Home Auto: KHV-444/454/446/456 - In installation of the product, do not fail to follow the specifications (specifications offered by KOCOM). - Do not insert any metallic materials into the inside of fuse cover. It may cause electric shock.
- Page 6 Precautions for Operation Wring Diagram KDP-501A / KDP-501D As this device consists of precise electronic components, and high voltage is generated internally, do not attempt to disassemble. When cleaning, never use wet Do not drop lndoor station, and hands, volatile benzene or paint avoid strong impact.
