KDP-Q81F USER MANUAL
Hands-Free
Doorphone
■ Calling to & Phone call with sub-unit at the entrance
■ Phone calling and door opening
■ Connection with doorlock by AC or DC type
■ LED brightness control for checking operating status
■ Doorphones extension upto 4 units
■ Mutual beeping & calling through doorphones
Audio Outdoor Panel
KD-Q81T
www.kocom.com

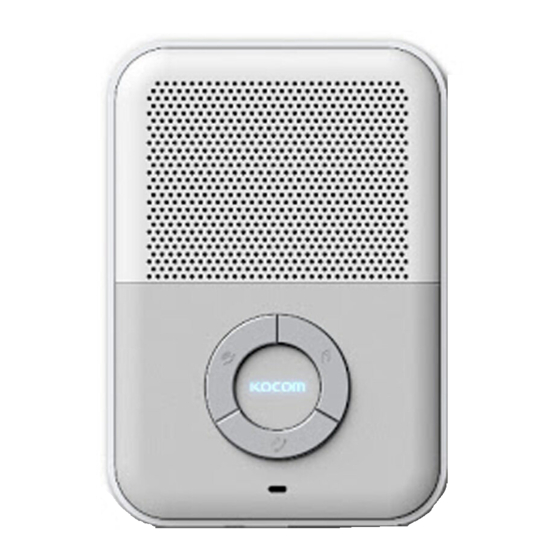

KDP-Q81F
Thank you very much for
purchasing KOCOM
Doorphone.
Please read this manual
thoroughly to ensure
correct usage,
before operation
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KDP-Q81F
Summary of Contents for KOCOM KDP-Q81F
- Page 1 KDP-Q81F USER MANUAL Hands-Free Doorphone ■ Calling to & Phone call with sub-unit at the entrance ■ Phone calling and door opening ■ Connection with doorlock by AC or DC type ■ LED brightness control for checking operating status ■...
-
Page 2: Table Of Contents
Table of Contents Cautions for Safety 3 ~ 4 Product Configuration & Specifications How to Install Name and Functions of Each Part Product Connection Diagram / System Diagram 8 ~ 9 How to Use 10 ~ 12... -
Page 3: Cautions For Safety
Cautions for Safety For safe use, please stick to the following cautions. ·Please save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need assistance with the set-up or operation, please contact with A/S center. - Page 4 Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
-
Page 5: Product Configuration & Specifications
. Audio outdoor panel fixing screws 3 X 8mm (1ea) Product Specifications Audio outdoor panel component (sub unit) Doorphone component (main unit) ■ ■ Model no. KDP-Q81F Model no. KD-Q81T Power source 100-240V~, 50/60Hz Power source DC 12±2V (Supply from the main unit) Power consumption Stand by 1.3W, Max 4.0W... -
Page 6: How To Install
How to Install ■ Main unit installation location ■ Sub unit installation location ·Standard installation height is about ·Sub unit installation in height standard 1,500mm where the unit is at eye level. sub unit installation height is when the In this case, wall-hanging metal center unit is about 1,400mm above the floor. -
Page 7: Name And Functions Of Each Part
Name and Functions of Each Part Doorphone (Front) Doorphone (Back) ① Speaker ② Mic ③ Power/Show motion sensor LED ④ A front door magnetic button ⑤ Extension button / Paging button ⑥ Open door & Menu button ⑦ Call volume three stage variable switch ⑧... -
Page 8: Product Connection Diagram / System Diagram 8
※ Upto 4 units extension is available Separate power supply DC/AC Switch ※ This image may differ from the actual product. ① ① ① VCC (BLUE) ② GND(YELLOW) ② ② ③ AUDIO(RED) ③ ③ ④ DATA(WHITE) ④ KDP-Q81F KD-Q81T ① ② ③ ④ EXTENSION KDP-Q81F... - Page 9 System Diagram Doorphone ↔ Audio outdoor panel 1:1 ■ MAX 400M Doorphone ↔ Audio outdoor panel 4:1 ■ MAX 200M MAX 200M MAX 400M ·Cable type : CAT5 ·Cable bander : LS Cable ·Cable Impedance : 1/2 pair, 100M = 10Ω ·MAX cable distansce : - 1/2 pair : 300M - 1 pair : 600M...
-
Page 10: How To Use
Button Function Button function ■ Receiving phone from the entrance Phone call button Door opening Setting button Extension calling Phone call button LED status description ■ Wating : A weak light Audio outdoor panel front door call : bright slow flashing When calling to lobby or extension : A bright light When paging extension : bright fast flashing How to Use... - Page 11 How to Use When calling directly from doorphone to sub-unit (KD-Q81T) at the entrance ■ On standby. When pressing phone call button Press calling button once more, during standby, LED will glow calling will be off. brightly. (Calling time 3 mins) ※...
- Page 12 How to Use Precautions ■ ※ When a visitor calling at the entrance while extension calling is in progress, extension calling and phone call will be automatically off and then turned into normal calling status. ※ When a visitor calls from the entrance during paging function mode, paging will be automatically off and then turned into normal calling status.
- Page 13 Memo...
- Page 14 2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
