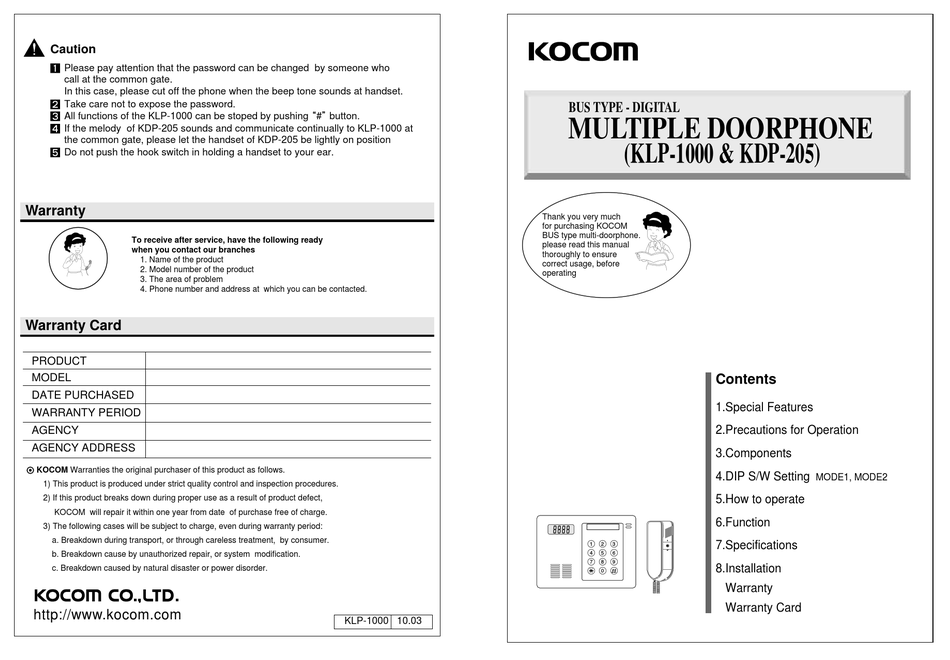

Multiple doorphone

Advertisement

Caution
� Please pay attention that the password can be changed by someone who
call at the common gate.
In this case, please cut off the phone when the beep tone sounds at handset.
� Take care not to expose the password.
� All functions of the KLP-1000 can be stoped by pushing "#" button.
� If the melody of KDP-205 sounds and communicate continually to KLP-1000 at
the common gate, please let the handset of KDP-205 be lightly on position
� Do not push the hook switch in holding a handset to your ear.
Warranty
To receive after service, have the following ready
when you contact our branches
1. Name of the product
2. Model number of the product
3. The area of problem
4. Phone number and address at which you can be contacted.

Warranty Card

PRODUCT
MODEL
DATE PURCHASED
WARRANTY PERIOD
AGENCY
AGENCY ADDRESS
◉ ◉ KOCOM Warranties the original purchaser of this product as follows.
1) This product is produced under strict quality control and inspection procedures.
2) If this product breaks down during proper use as a result of product defect,
KOCOM will repair it within one year from date of purchase free of charge.
3) The following cases will be subject to charge, even during warranty period:
a. Breakdown during transport, or through careless treatment, by consumer.
b. Breakdown cause by unauthorized repair, or system modification.
c. Breakdown caused by natural disaster or power disorder.
http://www.kocom.com

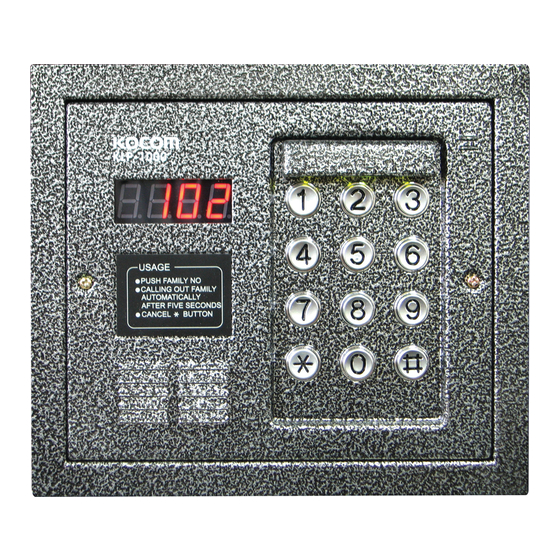

KLP-1000 10.03
BUS TYPE - DIGITAL
MULTIPLE DOORPHONE
(KLP-1000 & KDP-205)
Thank you very much
for purchasing KOCOM
BUS type multi-doorphone.
please read this manual
thoroughly to ensure
correct usage, before
operating
Contents
1.Special Features
2.Precautions for Operation
3.Components
4.DIP S/W Setting
5.How to operate
6.Function
7.Specifications
8.Installation
MODE1, MODE2
Warranty
Warranty Card

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KLP-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for KOCOM KLP-1000

  • Page 1: Warranty Card

    � Take care not to expose the password. BUS TYPE - DIGITAL � All functions of the KLP-1000 can be stoped by pushing “#” button. MULTIPLE DOORPHONE � If the melody of KDP-205 sounds and communicate continually to KLP-1000 at the common gate, please let the handset of KDP-205 be lightly on position (KLP-1000 &...
  • Page 2 Please check LINE+,LINE -,SIG line before wiring installation between KLP-1000 and KDP-205. � In case that cancel call signal at KLP-1000, you have to push cancel button after twinkling LED. � In case the total unit number is over 250 pcs, additional power supply is...
  • Page 3 4. DIP S/W Setting MODE1 (Default) Firmware Ver. 04XX supports both 2 ways of Dip S/W Settings. Mode 1 : This is setting 15 houses from 1st floor to 39th floor. (Default) Mode 2 : This is setting 1~255 houses in order. Mode 1 : Set Dip S/W like the below �...
  • Page 4 Mode 2 : Set Dip S/W like the below. � KDP-205 DIP S/W INSTRUCTION ※ Mode 2 of KLP-1000 supports Max. 255 DIP sets. � FLOOR AND FAMILY S/W INSITITUTION NO.0125 125 =1 + 4 + 8 + 16 + 32 + 64 How to check Mode 2: On putting the house password, ※...
  • Page 5 � Push the password and “#” button, the common gate is opened. � Push a family number that you want to reach at KLP-1000, and you can see it at display . � In case of wrong password, the common gate is not opened, and only “..” is twinkled.
  • Page 6: Specifications

    � Communication between KLP-1000 and KDP-205 BLACK LINE(-) WHITE Door Lock After call to KDP-205 at KLP-1000, you can talk over with others by KDP-205.To call to VIOLET KLP-1000at KDP-205, push the door key button in KDP-205 after picking up the INDOOR- Power source...
