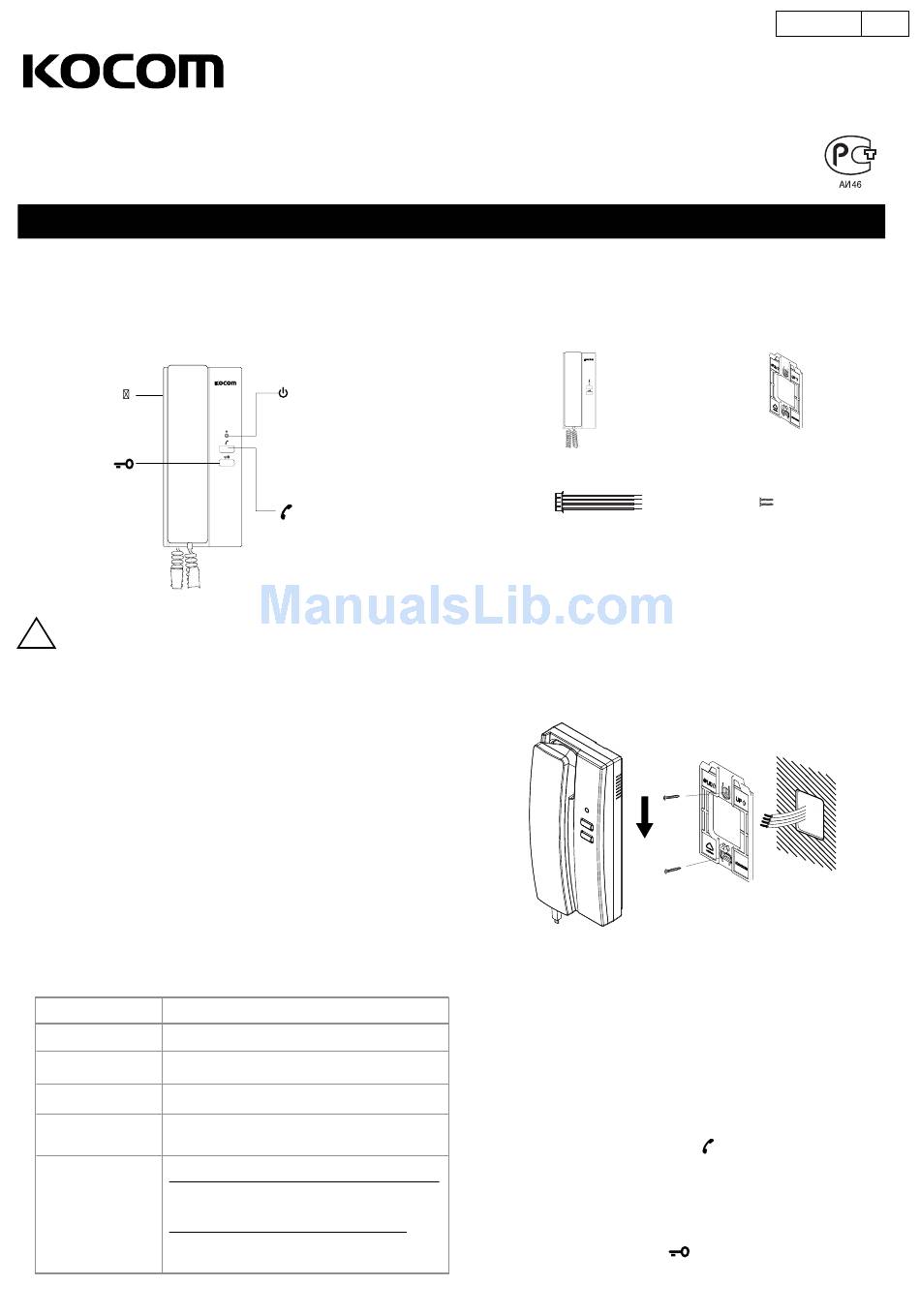

KOCOM KDP-602GD User Manual

Name of Each Part
■

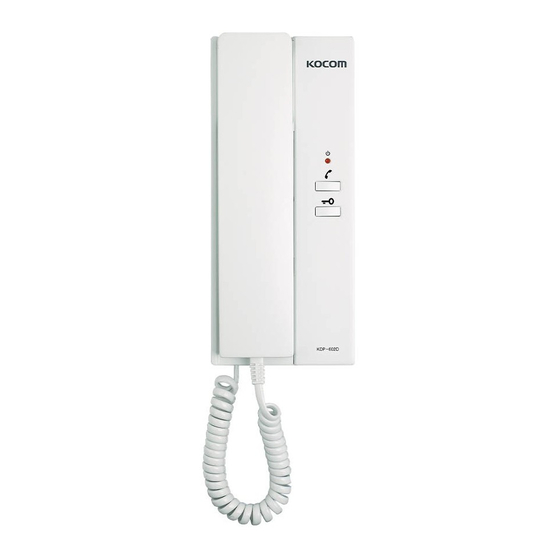

EXPANSION DOOR PHONE(KDP-602GD)
Volume control
To control calling
signal volume.
Button
Door opens when this
button is pressed.
Available only for the
door equipped with
door opener.
! Precautions for Operation
1.
As this device consists of precise electronic components, and high
voltage is generated internally, do not attempt to disassemble.
2.
Do not drop lndoor or outdoor station, and avoid strong impact.
3.
When cleaning, never use wet hands, volatile benzene or paint thinner.
4.
Keep away from humidifier and stove. High temperature and humidity
can cause malfunction
5.
Maintain the product clear by frequently cleaning doorstation with
soft cloths
6. This product is doorphone which works with Lobbyphone model
KLP-C420 / C420R and Repeater KVS-A4P/A8P.
7. Recommed to use an external DC adaptor provided by kocom,
if not, this may cause bad quality of audio.

Specifications

■
Description
Electric source DC 13±1V only (External DC 15V adadptor)
Power Consumption In Load 2.5W
Sound Electronic chime
Wiring 4 Wired in polarity
Vcc / GND / Audio / +13V
Cable Specs.
"From KLP-C420 / C420R to the last KDP-602GD,"
and max. distance
max. 150M using CAT5 single cable,
and max. 300M using CAT5 pair cables.
From KVS-A4P/A8P to the last KDP-602GD,
max. 80M using CAT5 single cable, and
150M using CAT5 pair cables.
DOORPHONE
KDP-602GD USER'S MANUAL
Power Lamp
To check power and operating status:
ON : Power ON /
Communication Connected
OFF : Power OFF
Flicker : Call ringing
Button
Internal call and
communication
KDP-602GD
Component
■
·Doorphone
·Install wire
Installation
■
A- Choose a place on the wall where you want to hang the
DOOR PHONE.
B- Fasten the wall hanger on the wall.
C- DOOR PHONE can be hung on the wall hanger easily now.
How to operation
■
1. Communcation with lobbyphone (KLP-C420 / C420R)
(1) A visitor makes a call to the house.
(2) The doorphone rings.
(3) Pick up the handset to start communication with visitor.
(4) When communicacation ends, hang up the handset.
2. Internal call and communication
(1) Pick up the handset and press
(2) The extended monitor or doorphone is ringing.
(3) Then, when the handset of the extended doorphone is picked up,
the internal communication starts.
(4) When communicacation ends, hang up the handset.
3. Door open
When the door open button
between the lobbyphone and the doorphone, door opens.
KDP-602GD N0530
·Wall hanger Pannel
·Screw
3×12mm (2ea)
button on the doorphone.
is pressed during the communication
