Door Phone
06.09

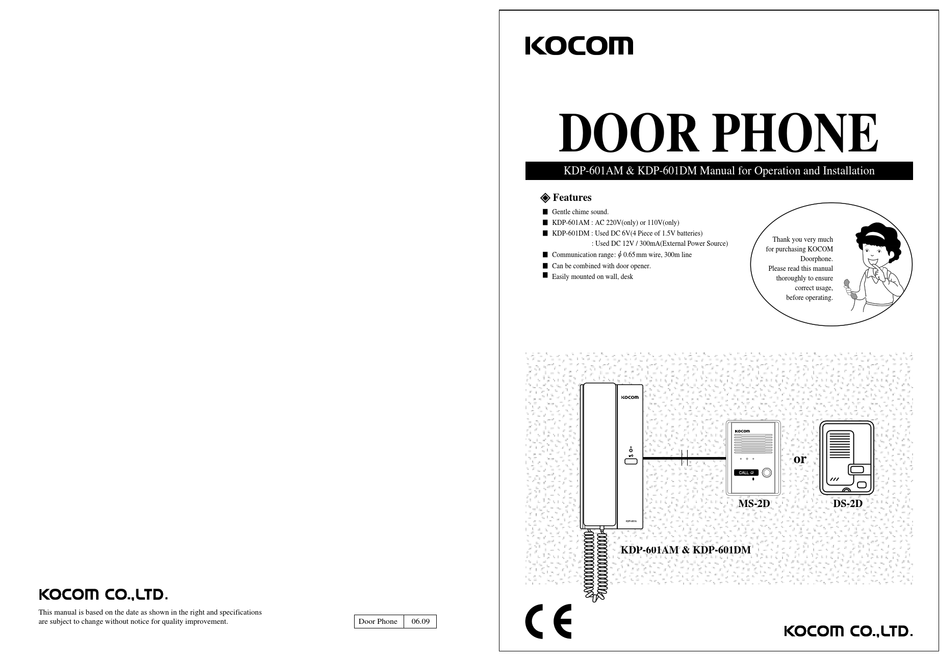

DOOR PHONE
KDP-601AM & KDP-601DM Manual for Operation and Installation
◈ ◈ Features
� Gentle chime sound.
� KDP-601AM : AC 220V(only) or 110V(only)
� KDP-601DM : Used DC 6V(4 Piece of 1.5V batteries)
: Used DC 12V / 300mA(External Power Source)
� Communication range:�0.65mm wire, 300m line
� Can be combined with door opener.
� Easily mounted on wall, desk
KDP-601AM & KDP-601DM
Thank you very much
for purchasing KOCOM
Doorphone.
Please read this manual
thoroughly to ensure
correct usage,
before operating.
or
MS-2D
DS-2D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KDP-601AM
Summary of Contents for KOCOM KDP-601AM
- Page 1 DOOR PHONE KDP-601AM & KDP-601DM Manual for Operation and Installation ◈ ◈ Features � Gentle chime sound. � KDP-601AM : AC 220V(only) or 110V(only) � KDP-601DM : Used DC 6V(4 Piece of 1.5V batteries) Thank you very much : Used DC 12V / 300mA(External Power Source) for purchasing KOCOM �...
- Page 2 2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period : a.
- Page 3 Warnings Cautions for Safety Warnings for disposal For safe use, please stick to the following cautions. � Do not throw used-up battery into fire places, which may cause fire and explosion. Cautions �Read this cautions carefully and keep it within easy reach of you. �For right installation, read this cautions thoroughly.
- Page 4 Warnings Warnings Cautions for Use Cautions for Use �Do not install the product at bathroom or at the place near a washing machine, or at other humid places. It may cause fire or � This product is only for home. Do not the product for industrial or military use. electric shock.
- Page 5 - When setting night guard mode, be sure that detector should be connected well. - In installation of the product, do not fail to follow the specifications (specifications offered by KOCOM). - Sufficiently charge the battery of wireless handset before using it. Be careful that children should not throw battery. Be sure to close battery cover - Do not touch the product with alien materials (for example, sticker, magnet, opener, metal chopstick, etc.)
-
Page 6: Wiring Diagram
C - Indoor station can be hung on the wall hanger easily now. Wiring Diagram Specifications KDP-601AM Description KDP-601AM KDP-601DM Electric source AC 220V(only) or 110V(only) BATTERY: DC 6V(4 Piece of 1.5V batteries)
