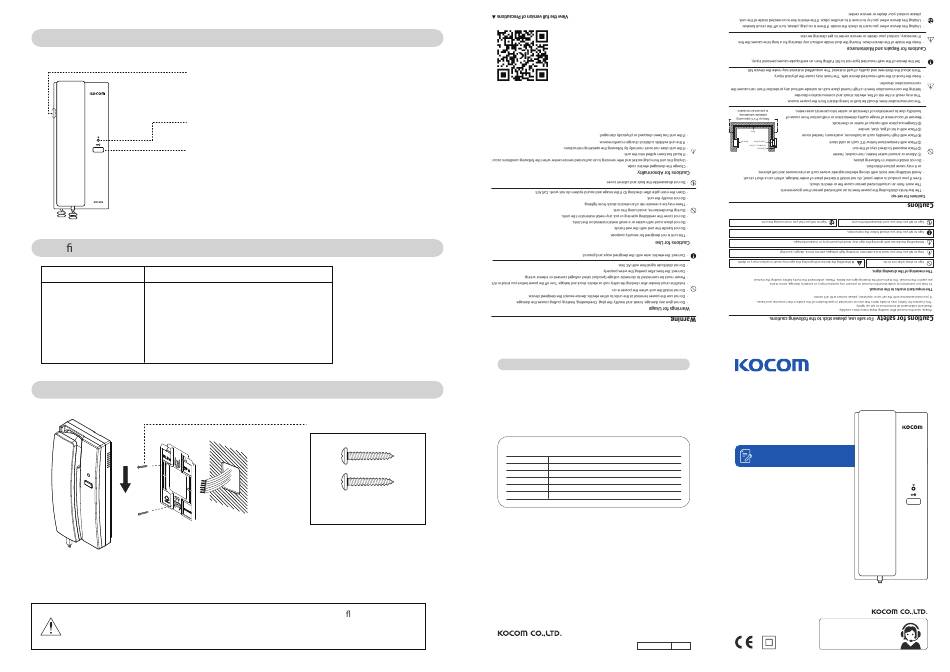

KOCOM KDP-X601Gi Quick Start Manual

Name of Each Part
3 -Level Volume Swich
Power Lamp(Red)
Door Open Button :
Pressing the button after communication
with lobby, opener installed lobby door
is opened
Speci cations
Model KDP-X601Gi
Power AC 100-240V~, 50/60Hz
Mount Type Surface Mount
Speak Mode Handset
Operating Temperature 0 ~ 40℃
Wiring 3 Wire x 2
Dimension 92(W) x 210(H) x 57(D) mm
Installation
① Choose a place on the wall where you want to hang the DOOR PHONE.
② Fasten the wall hanger on the wall.
③ DOOR PHONE can be hung on the wall hanger easily now.
- The standard installation height of product is under 2,000mm from oor.
- The product should be installed in an easily accessible location near an electric outlet
in case an emergency shutdown is needed.
Installation screw
4 X 30M/M 2EA
Warranty
To receive after sales service, have the following ready
when you contact our branches.
1. Name of the product.
2. Model number of the product.
3. The area of problem.
4. Phone number and address at which you can be contacted.
Warranty Card
PRODUCT
MODEL
DATE PURCHASED
WARRANTY PERIOD
AGENCY
AGENCY ADDRESS
◉ KOCOM
Warranties the original purchaser of this product as follows.
1) This product is produced under strict quality control and inspection procedures.
2) If this product breaks down during proper use as a result of product defect,
KOCOM will repair it within one year from date of purchase free of charge.
3) The following cases will be subject to charge, even during warranty period :
a. Breakdown during transport, or through careless treatment, by consumer.
b. Breakdown caused by unauthorized repair, or system modification.
c. Breakdown caused by natural disaster or power disorder.
This manual is based on the date as shown in the right and specifications
KDP-X601Gi Y0627
are subject to change without notice for quality improvement.
DOOR PHONE
KDP-X601Gi Manual for
Operation and Installation
- KDP-X601Gi : 100-240V~, 50/60Hz
- Compatible product : KVL-TC3XXi series
- Maximum wiring distance (UTP CAT5e)
KVL-TC3XXi to last DoorPhone --100m
(Resistance value of completed wiring installation:
less than 10 Ohms)
Thank you very much for purchasing
KOCOM Doorphone. please read
this manual thoroughly to ensure
correct usage, before operation
