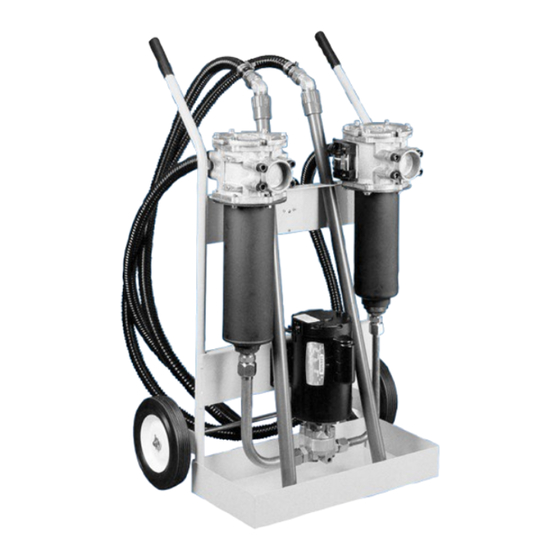

  • Page 1 Portable Filter Carts Models 5MF and 10MF Global Filtration Technology...
  • Page 2 Fluid should always be filtered The Parker filter cart uses two high Transferring fluid from drums or before being put into use. New fluid capacity ModuFlow™ filters for storage tanks to system reservoirs is not necessarily clean fluid.
  • Page 3 Gear Pump Industrial quality Quiet operation Dependable, long life Elements Electrical Cord (not shown) (not shown) Available for both 6ft. with on/off switch particulate and water Optional 20 ft. cord removal with reel Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 4 Steel tube (high temp option) -15° F to 200° F Weight (approximate): 110 Lbs. (45.4 kg) (-26° C to 93° C) Dimensions: inches (millimeter) - Height: 40.5" (1029) - Width: 25.5" (648) - Depth: 19.0" (483) Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 5 200 SUS 140 ml 2. Capacity is very dependent on flow rate and viscosity. Not recommended with fluids in excessof 500 SUS. 10MF 75 SUS 190 ml 200 SUS 80 ml Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 6: Troubleshooting

    Check cart model number to verify correct in outlet filler. element. The inlet filter has a rating "RF" prevent fluid from going into prefix; the ouflet filter has a "CF" preflx. bypass in the filters. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 7 928728 Tube Fitting F3-RF2-1-**-PP3-YN-F9-1 Inlet Filter - Fluorocarbon — 928652 Adapter Fitting CF2-1**-MP25-F9-YN-1 Outlet Filter - Buna N 928677 Suction Tube Assembly F3-CF2-1-**-MP25-F9-YN-1 Outlet Filter - Fluorocarbon — **Refer to table above Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 8: How To Order

    BOX 6 : DESIGN NUMBER 10MF 10 GPM Symbol Description (500 SUS MAX.) Cellulose Applied to the filter by Parker Hydraulic 5 GPM Cellulose Filter Division. Use the full model code, (3000 SUS MAX.) Microglass III including the design number when Microglass III ordering replacement parts.
  • Page 9 Guardian ® Portable Filtration System Global Filtration Technology...
  • Page 10 There are literally hundreds of applications that the Guardian is suited for, with more being discovered each day. If your system is sensitive to the harmful effects of contamination, then the Guardian may be ideal for you. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 11 Dual motor seals. Added motor Longer motor life. protection. Auxiliary inlet/outlet Used in place of, or in Flexibility. ports. addition to, standard ports. The outlet can also be used as a sampling port. Marine Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 12 On/off switch 7.68 Inlet 50.8 2.00 Clean inlet strainer as required Outlet Visible and easily cleanable inlet strainer 152.4 6.00 398.5 Alternate customer exchangeable, ½-14 NPT 15.69 inlet and outlet locations (Plugged). Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 13 Not applicable Estimated Guardian Element Life and Cleanliness Levels The following chart shows typical element life achieved by standard Parker elements available with (in gallons of oil passed) and cleanliness levels the Guardian. Some assumptions have been made.* Elements Used...

  • Page 14: Troubleshooting Guide

    Certain fluids, over time, will cause the hoses to discolor. This are hard. does not impair their performance. But, some fluids will cause the hoses to become brittle, requiring replacement. Oil formation under unit. Defective shaft seal. Replace the motor shaft seal. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 15: Replacement Parts

    36. Washer ........932085 37. Brush Kit (110/120) ....934329 (220/240 VAC) ....934327 (24 VDC) ....932761 NOTE: SHCS denotes "socket head cap screw” Seal Kit .......... 932263 Bowl Extension Kit ...... 932081 Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 16 BOX 5 : DESIGN NUMBER Microglass III Symbol Description Symbol Description Microglass III ® Water Removal Applied to the Guardian by Parker Guardian 110/120 VAC Hydraulic Filter Division. Use the GT4 D 24VDC full model code, including the design GT4 E 220/240 VAC number when ordering replacement parts.
  • Page 17 Portable Purification Systems Models PVS 185, 600, 1200, 1800, 2700 Global Filtration Technology...

  • Page 18: Principles Of Operation

    Portable Purification Systems Principles of Operation Typical Saturation Points Contaminated oil is drawn into the Parker Portable Purification System by a vacuum of Fluid Type 25 In/Hg. The oil passes through the in-line Hydraulic Fluid .03% low watt density heater where the oil is heated to an optimum temperature of 150°...
  • Page 19 Simple diagnostics Reduced maintenance costs Available with EPR seals Specifically designed for application Phosphate ester compatible and stainless steel Reduced downtime Solid state heater contacter Longer more reliable service life Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 20 Reservior Size (Liters) 5000 10000 15000 20000 25000 30000 35000 PVS 185 PVS 600 PVS 1200 PVS 1800 PVS 2700 1000 2000 2000 4000 5000 6000 7000 8000 9000 10000 Reservior Size (Gallons) Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 21 Tank Low Oil Flow Flow Switch Direction Condensate CORELESS Drain Oil Lubricator Oil Discharge Inlet Flow 02QE 933734Q Pump 05QE 933612Q Low Watt Density 10QE 933735Q Model 8OCN-2 Absolute Filter 20QE 933736Q Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 22: Specifications

    Liquid Ring Vacuum Drain Pump Oil Lubricator 02QE 933734Q Oil Discharge Inlet Flow Pump 05QE 933612Q Low Watt Density Heater 10QE 933735Q (11 WPSI) Model 8OCN-2 WPSI Watts p Absolute Filter 20QE 933736Q Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 23 Liquid Ring Vacuum Drain Pump Oil Lubricator 02QE 933734Q Oil Discharge Model IL8-3 Inlet Flow Pump Absolute Filter 05QE 933612Q Low Watt Density Heater (11 WPSI) 10QE 933735Q WPSI Watts p 20QE 933736Q Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 24 Outlet pressure (max) 60 psi (4.1 bar) ....................... 05QE 933612Q Ports 2” NPTF- inlet 10QE 933735Q 1.5” JIC – outlet 20QE 933736Q ....................... FLA (full load amps) 40-65 amps @ 460 V/60hz ....................... Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 25 Outlet pressure (max) 60 psi (4.1 bar) ....................... 05QE 933612Q Ports 3” NPTF - inlet 10QE 933735Q 2” NPTF - outlet 20QE 933736Q ....................... FLA (full load amps) 50-70 amps @ 460 V/60hz ....................... Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 26 550VAC, 3P, 60HZ 380VAC, 3P, 50HZ 2700 460VAC, 3P, 60HZ 550VAC, 3P, 60HZ Please note the bolded options reflect standard options with a reduced lead-time. Consult factory on all other lead-time options. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
