Parker 5MF Manual

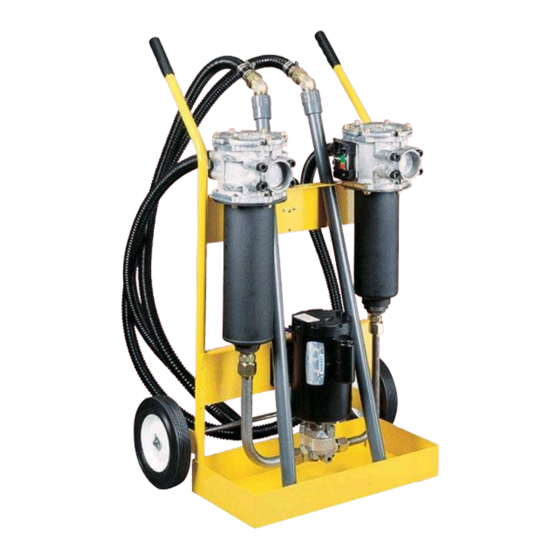

Portable filter carts
Hide thumbs Also See for 5MF:
Table of Contents

Advertisement

Quick Links

Portable Filter Carts
Models 5MF and 10MF
171

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5MF and is the answer not in the manual?

Questions and answers

Related Manuals for Parker 5MF

Summary of Contents for Parker 5MF

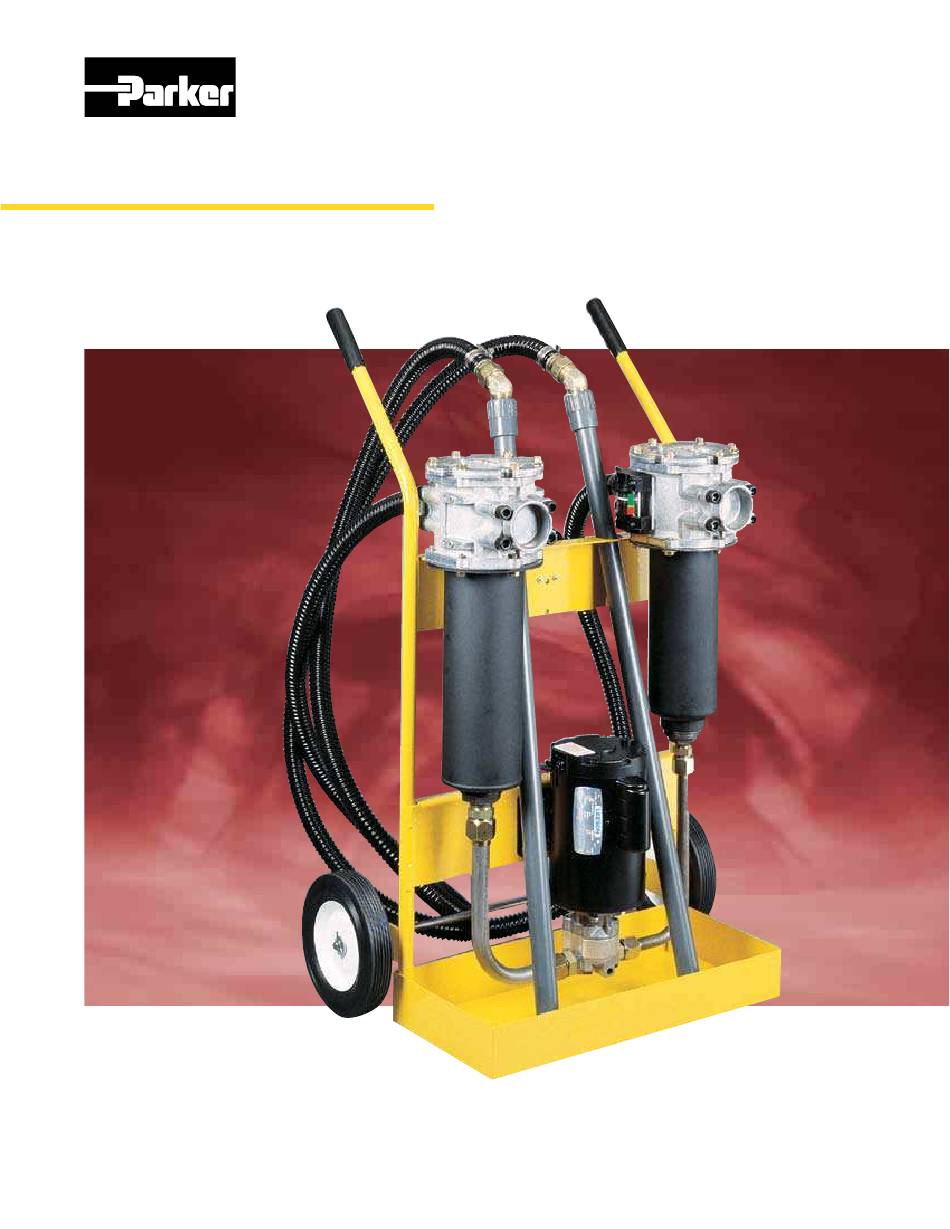

  • Page 1 Portable Filter Carts Models 5MF and 10MF...
  • Page 2 Parker Filter Carts into reservoirs or to clean up existing Filtering new fluid before putting into systems. The Parker filter cart uses two high service ™ capacity ModuFlow filters for long Fluid should always be filtered before element life and better system Transferring fluid from drums or...
  • Page 3 5MF and 10MF Portable Filter Cart Features Service Cover Top-accessible for easy changing of elements Visual Indicator Tells you when to change element Dual Filters Two-stage filtration for long Motor element life and pump protection Industrial brand name Hose & Wand...
  • Page 4 Maximum Recommended Fluid Viscosity: l0MF - ¾ hp @ 3450 rpm, O.D.P. 10MF: 500 SUS (108 cSt) (.85 specific gravity) 5MF - ½ hp @ 1725 rpm, O.D.P. 5MF: 3000 SUS (627 cSt) (.85 specific gravity) Thermal overload protection Visual Indicator:...
  • Page 5 5MF and 10MF Portable Filter Cart Typical Fluid Cleanliness Filter Cart Performance Level Requirements Fluid cleanliness levels are a function of initial Many manufacturers of hydraulic components have contamination levels, contamination ingression rates, established fluid cleanliness levels for their compo- reservoir size and filter element efficiency.

  • Page 6: Troubleshooting

    5MF and 10MF Portable Filter Cart Assembly Maintenance Instructions 6) The inlet filter Is provided with a 1) Install hoses to inlet and outlet 1) Turn switch to OFF position and 3PSI bypass spring, and prevents filters by threading the hose end unplug cord from electrical outlet.
  • Page 7 5MF and 10MF Portable Filter Cart Filter Cart Replacement Parts Replacement Element Part Numbers Buna Seals Fluorocarbon Media Code (Standard) Seals 924456 925043 924455 925042 40SA 924448 925035 924451 925038 924450 925037 933742Q 933743Q 924453Q 925040Q 924452Q 925039Q 933068Q 933069Q...
  • Page 8 Description Symbol Description Symbol Description 10MF 10 GPM Cellulose Applied to the filter by Parker Hydraulic (500 SUS MAX.) Microglass III Filter Division. Use the full model code, 5 GPM Microglass III including the design number when (3000 SUS MAX.) Microglass III ordering replacement parts.
  • Page 9 Guardian ® Portable Filtration System...
  • Page 10 There are literally hundreds of applications that the Guardian is suited for, with more being discovered each day. If your system is sensitive to the harmful effects of contamination, then the Guardian may be ideal for you. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 11: Features Advantages

    Dual motor seals. Added motor protection. Longer motor life. Auxiliary inlet/outlet Used in place of, or in Flexibility. ports. addition to, standard ports. The outlet can also be used as a sampling port. Marine Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 12 On/off switch 7.68 Inlet 50.8 2.00 Clean inlet strainer as required Outlet Visible and easily cleanable inlet strainer 152.4 6.00 398.5 Alternate customer exchangeable, ½-14 NPT 15.69 inlet and outlet locations (Plugged). Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 13 Not applicable Estimated Guardian Element Life and Cleanliness Levels The following chart shows typical element life achieved by standard Parker elements available with (in gallons of oil passed) and cleanliness levels the Guardian. Some assumptions have been made.* Elements Used...

  • Page 14: Troubleshooting Guide

    Certain fluids, over time, will cause the hoses to discolor. This are hard. does not impair their performance. But, some fluids will cause the hoses to become brittle, requiring replacement. Oil formation under unit. Defective shaft seal. Replace the motor shaft seal. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 15: Replacement Parts

    36. Washer ..........932085 37. Brush Kit (110/120)......934329 (220/240 VAC) ....934327 (24 VDC) ......932761 Seal Kit ........... 932263 Bowl Extension Kit ........ 932081 NOTE: SHCS denotes “socket head cap screw” Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 16 BOX 5 : DESIGN NUMBER Microglass III Symbol Description Symbol Description Microglass III Water Removal Applied to the Guardian by Parker Guardian ® 110/120 VAC Hydraulic Filter Division. Use the GT4 D 24VDC full model code, including the design GT4 E 220/240 VAC number when ordering replacement parts.
  • Page 17 Portable Purification Systems Models PVS 185, 600, 1200, 1800, 2700...

  • Page 18: Principles Of Operation

    Portable Purification Systems Principles of Operation Contaminated oil is drawn into the Parker Portable Purification System by a vacuum of 25 In/Hg. The oil passes through the in-line low watt density heater where the oil is heated to an optimum temperature of 150°...
  • Page 19 • Provides safe and secure • Employee safety method of lifting the unit Coalescing or packed tower oil • Flexibility with various fluid • Greater efficiency in removing dispersal elements viscosities moisture Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 20: Typical Performance

    Coalescer units– Removes free water only; has difficulty Start Stop breaking stable emulsions; does not work well in viscous fluids (>100 sus); much larger in size compared to PVS. Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

  • Page 21: Specifications

    20QE (20 micron) 936719Q OPTIONAL CORELESS PARTICULATE (IL8-3) 2QE (2 micron) 933734Q 5QE (5 micron) 933612Q 10QE (10 micron) 933735Q 20QE (20 micron) 933736Q DISPERSAL Disposable 933180 (Coalescing) Heater Packed tower 933553 (Cleanable) Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 22 20QE (20 micron) 936719Q OPTIONAL CORELESS PARTICULATE (IL8-3) 2QE (2 micron) 933734Q 5QE (5 micron) 933612Q 10QE (10 micron) 933735Q 20QE (20 micron) 933736Q DISPERSAL Disposable 933180 (Coalescing) Packed tower 933553 (Cleanable) Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 23 PVS 1200 Flow Diagram REPLACEMENT ELEMENTS DISPERSAL Disposable 933180 (Coalescing) Packed tower 933553 (Cleanable) STANDARD CORELESS PARTICULATE (IL8-3) 02QE (2 micron) 933734Q 05QE (5 micron) 933612Q 10QE (10 micron) 933735Q 20QE (20 micron) 933736Q Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 24 2150 sus (460 cSt) - Packed Tower ....................... Outlet pressure (max) 60 psi (4.1 bar) ....................... Ports 2” NPTF- inlet 1.5” JIC – outlet ....................... FLA (full load amps) 40-65 amps @ 460 V/60hz Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 25 2150 sus (460 cSt) – Packed Tower ....................... Outlet pressure (max) 60 psi (4.1 bar) ....................... Ports 3” NPTF - inlet 2” NPTF - outlet ....................... FLA (full load amps) 50-70 amps @ 460 V/60hz Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 26 14. System volume: __________________________________________________________________ 15. Special requirements: ______________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ 16. Any previous filtration problems with the application: _______________________________________ 17. PVS model selected: _______________________________________________________________ *Specification sheet must be completed before order can be entered Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 27 Dirty Filter Light Differential pressure gauge Explosion Proof (Class I, Division II, Zone I and II) Inlet Control Valve Upgrade to IL8-3 coreless filter Pneumatic Wheels Resetable Hour Meter Sight Flow Indicator Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...
  • Page 28 Notes Parker Hannifin Corporation Hydraulic Filter Division Metamora, OH...

This manual is also suitable for:

10mf
