WARNINGS These are the most critical warnings summarized below. WARNING If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

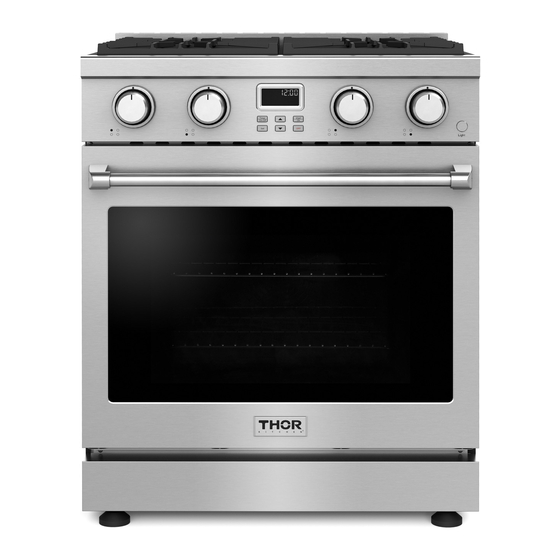

WELCOME 2. Welcome Thank you for purchasing Thor range. We appreciate your business and we recommend that you read this entire User’s Manual before operating your new appliance for the first time. This manual contains instructions on how to properly install and set up your new range, as well as in- sights into the unique features that our product offers.
BEFORE YOU START 3. Before you start • Make sure that the anti-tip of the range has been interoperability. • Find the model and serial numbers on the CSA label in the bottom right-hand corner of the backboard. Note these numbers down for future reference in the space provided in section ‘Warranty and service’.
SAFETY AND WARNINGS 4. Safety and Warnings SYMBOL DEFINITION This will alert you to potential personal or property safety hazards. Obey all safety rules to avoid any property damage, personal injury or death. WARNING: indicates a potentially hazardous WARNING situation, which, if not avoided, could result in serious injury or death.
SAFETY AND WARNINGS ELECTRICAL SHOCK HAZARD Before removing a faulty oven light bulb, make sure you turn OFF the power to the range at the main fuse or circuit breaker panel. If you don’t know how to do this, contact anelectrician. Do not remove the kick panel or the back panel.
SAFETY AND WARNINGS EXPLOSION HAZARD If you smell gas, do not use the appliance. Open a window or door to let the gas escape, then follow the instructions on the inside front coverof this manual. Do not use water on grease fires. A violent steam explosion may result. Turn all burners off, then smother fire or flame with a dry chemical or foam-type extinguisher.
SAFETY AND WARNINGS POISONING HAZARD Never cover any slots, holes or passages in the oven bottom or cover an entire rack or the oven floor with materials such as aluminum foil. Doing so blocks airflow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.
Page 12
SAFETY AND WARNINGS Do not install or operate stove if damaged. Do which ensures that the oven operates efficiently. not operate the appliance if it is damaged or Care should be taken not to rub, damage or move it. not working properly. If you received a damaged Protect glass oven doors product, contact your dealer or installer Do not use harsh/abrasive cleaners, scourers or...
Page 13
SAFETY AND WARNINGS Always disconnect power to appliance beforeany Always turn pot handles to the side or back of the type of servicing. range. Do not turn handles towards the area where they are easily burned. Handles should not extend Do not use abrasive or caustic cleaners or over the adjacent burners.
GAS SUPPLY REQUIREMENTS 5. GAS SUPPLY REQUIREMENTS Installation of this range must conform with local codes, or in the absence of local codes, with national Fuel Gas Code, ANSIZ223.1 / NFPA 54. In Canada, installation must conform to the current natural Gas Installation /code, CAN 1-1.1-M81 and with local codes where applicable.
It is not necessary to install non-combustible materials behind the range below the countertop height. The minimum distance from the side of the range above the counter top to combustible sidewalls must be at least 10 inches. BTU DESIGN 3.5k ARG30 ARE36...
ELECTRIC POWER SUPPLY REQUIREMENTS 7. ELECTRIC POWER SUPPLY REQUIREMENTS Your range must be electrically grounded in accordance with local codes or, in the absence of local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes.
ELECTRICAL GROUNDING INSTRUCTIONS 8. ELECTRICAL GROUNDING INSTRUCTIONS WARNING This indoor gas cooking appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-pronged receptacle. Where a standard two-prong wall receptacle is encountered, it is the responsibility and litigation the customer to have it replaced with a properly grounded three-prong wall receptacle.
CONNECT RANGE TO GAS SUPPLY Install male 1/2” or 3/4” (3/4” refers to 48-inch gas range) flare union adapter to the NPT internal thread of the manual shut-off valve, taking care to secure the shut-off valve to keepit from turning. The gas supply pressure for checking the regulator setting is 6 in.w.c.
FIRST USE 10. First Use Conditioning the oven Conditioning will burn off any manufacturing residues and ensure that you get the best results right from the start. Follow these steps to condition your new stove’s oven: 1. Insert all the shelves. See ‘Positioning the shelves’ for instructions. 2.
COOKTOP SAFETY GUIDELINES Keep handles out of the way. Turn handles so that they don’t extend over the edge of therange or on a burner that is on. Take care when deep-frying. Oil or fat can overheat very quickly, particularly on a high setting. Make sure that all burner parts are properly in place.
COOKTOP SAFETY GUIDELINES NOTE: When one burner is turned to the “Hi” position, the burner igniters will park. Do not attempt to disassemble or clean around any burner while another burner is on. Do not touch any burner cap, burner base, or ignite while the igniters are sparking. SIMMER AND BOIL A smaller flame will give the best simmer results.
COOKTOP SAFETY GUIDELINES BURNER GRATES The grates must be properly positioned before cooking. Improper installation of the grates may result in scratching of the cooktop and / or poor combustion. Do not place water, ice, or any dish or tray directly on the oven floor, as this will irreversibly dam- age the enamel.
OPERATING THE OVEN 12. OPERATING THE OVEN OVEN COOKING SAFETY GUIDELINES Do not block the ducts on the rear of the range when cooking in the oven. It is important that the flow of moist warm air from the oven and fresh air into the oven burner never be interrupted. Avoid touching the vent opening or nearby surfaces during oven or broiler operation because they are hot.
OPERATING THE OVEN OVEN FUNCTION Bake Conv. Bake Conv. Roast Cooktime Pizza Warm Broil Timer 1. Start/OK: start oven cooking and confirm when setting; 2. Cancel:Exit or return to reset and exit work; 3. Timer On/Off:Set or cancel the kitchen timer; 4.
OPERATING THE OVEN Clock Using Clock, you can set the oven clock display. How to turn the clock: 1. Press “Set”,and then press “Start/OK” or Press to select CLO 2. Press to set the clock. 3. Press “Start/OK” to save the changes. Temp Unit Using Temp Unit, you can switch the temperature units you want.
OPERATING THE OVEN 2. Press to select “On” or “Off” 3. Press “Start/OK” to save the changes. Cooking Modes Bake The oven can be programmed to bake at any temperature from 175 °F to 550 °F. Baking temperature and time will vary depending on the ingredients and the size and shape of the baking pan used.
OPERATING THE OVEN 6. Dark metal baking pans or those with a dull finish absorb heat faster than shiny pans, an dare excellent for pies and breads, or anything that needs browning or a crisper crust. 7. A shiny finish may work best for foods that require lighter, delicate browning (e.g. cakes and cookies), as it reflects some heat and gives a less intense baking surface.
OPERATING THE OVEN Pizza The oven can be programmed to bake at any temperature from 175 °F to 550 °F. Baking temperature and time will vary depending on the ingredients and the size and shape of the baking pan used. Dark or nonstick coatings may cook faster with more browning.
CLEANING INSTRUCTIONS 13. CLEANING INSTRUCTIONS Read these cleaning instructions and the ‘Safety and warnings’ section before you start cleaning your range. Before cleaning or removing any part, make sure that everything on the range has been turned off. Unless suggested otherwise in the following chart, allow any part to cool to a safe temperature before cleaning.
CLEANING INSTRUCTIONS 5. Do not use harsh or abrasive cleaning detergents, waxes, polishes, or commercial cooktop cleaners to clean the cooktop. 6. Use only a sponge, soft cloth, fibrous or plastic brush, and nylon pad for cleaning. 7. Always dry components completely before using thecooktop. 8.
CLEANING INSTRUCTIONS CLEANING THE OVEN DOOR GASKET Avoid cleaning this part. If you need to remove large food particles off it, proceed as follows: 1. Dampen a sponge with clean hot water. 2. Gently wipe off the soiling, but do not rub. 3.Press a dry towel gently on the gasket to dry.
REMOVING AND REPLACING THE OVEN DOOR 14. REMOVING AND REPLACING THE OVEN DOOR Do not lift the oven door by its handle. Doing so may damage the door. Make sure the oven and the door are cool before you begin to remove the door. IMPORTANT Before removing the door, make sure there is a large enough clear, protected surface in the kitchen to rest the door on.
REMOVING AND REPLACING THE OVEN DOOR REPLACING THE OVEN DOOR 1. Hold the door firmly in an approximately 3. Open the door fully as shown, open position. 2. Insert the hinge tongues into the 4. Fully close the levers on the left and slots making sure that the notches on right hinges, as shown, then close the bothsides drop into place as shown.
TROUBLESHOOTING GUIDE 15. Troubleshooting Guide If you can’t find an answer to your problem in the chart below, or if the problem cannot be fixed, you will need technical help. Contact your Authorized Service Center orCus- tomer Care. Problem Probable Causes What To Do COOKTOP Some burners will not...
Page 37
TROUBLESHOOTING GUIDE The flames have A draft or a spill has No action required. The burn- suddenly gone out. extinguished the flame. er will detect this and auto- matically relight. However, if there has been a large spill, we recommend turning the burners off and cleaning the burners and sump area.
TROUBLESHOOTING GUIDE Problem Probable Causes What To Do OVEN Check that the circuit breaker hasn’t tripped The oven doesn’t work (no No power supply (oven light and halos do and there is no power outage in your area. If heating). not come on either).
TROUBLESHOOTING GUIDE Follow mode selection and Oven settings are not clock settings as specified corrected. Oven will not heat in Oven Operation section of the manual. Foods over-cooked Incorrect cooking time or Adjust time, temperature, or under-cooked. temperature. or rack position. “Cracking”...
WARRANTY 16. Warranty&Service This product has been manufactured by Thor International, 4651 E Airport Drive, California 91761 For Customer Service, please call (877) 288 - 8099 For the most up to date warranty and service policy, please refer to our website WWW. THORKITCHEN.COM/WARRANTY-REGISTRATION For in-warranty service requests, please visit our website at WWW.THORKITCHEN.COM/ SERVICE...
Page 41
APPENDIX 1 Rubber Pad Installation on Back Panel In order to meet the requirement for the clearance for the back of you Thor Kitchen Range, please install 2 pcs Rubber Pad provided in the manual package. Please find the accessories and follow the below steps: 1.
