Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

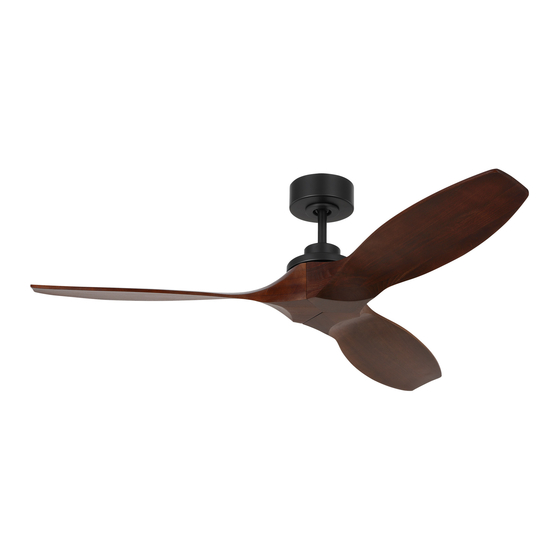

3CLNSM52XXX Series Fan
cETL Model NO. : 3CLNSM52XXX
RETAILER NAME:
RETAILER ADDRESS:
4.8 kg
10.6 lbs
Total fan weight
Advertisement
Related Manuals for Monte Carlo Fan Company 3CLNSM52 Series
Summary of Contents for Monte Carlo Fan Company 3CLNSM52 Series
- Page 1 Owner’s Guide and Installation Manual 3CLNSM52XXX Series Fan cETL Model NO. : 3CLNSM52XXX Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 4.8 kg 10.6 lbs Total fan weight...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. - Page 3 Switch power off at Service panel. Before installing this fan make sure the Use metal outlet box suitable for fan outlet box is properly installed to the support and use only the screws provided Lock service disconnecting means to house structure. with the outlet box (must support 35 prevent power from being switched on lbs).
- Page 4 Canopy Downrod Canopy bottom Top cover Cross pin Yoke cover Rubber pad Downrod Keeper pin Yoke Extension lead wire Place a rubber pad and a top cover over Partially loosen downrod set screws from Place downrod over canopy, canopy lead wires and safety cable and install the yoke at top of motor assembly.
- Page 5 Wall switch Black Note : For better performance of the remote Brown Grey Power source operation, keep the WIFI antenna apart from Blue White the antenna of the receiver. Ground/Green Receiver Ground/Green Wi-Fi antenna Receiver Canopy Black White Antenna of receiver Make wiring connections using wire connectors provided as indicated above.
- Page 6 Remote Controller Operation Remove the battery cover from the remote control transmitter and install batteries. Replace the cover. This remote uses 2 1.5V/AAA batteries. Note: If not using for long periods of time, remove the batteries to prevent damage to remote controller, and store the remote controller away from excess heat or humidity.
- Page 7 Install Transmitter wall mount cradle with 2 screws provided. Useful tips: The remote transmitter can be removed by pressing it upward from the lower half. The remote transmitter can be held on magnetic metal materials by a magnet built in the transmitter. The receiver provides the following protective functions: Lock protection: The DC motor has a build-in safety feature Wall mount cradle...
- Page 8 Fan operation with Bond Home APP Download the Bond Home app with your smart devices. The app is available on the Google Play Store and Apple Store. Or get it from bond home link, http://bondhome.io/app Create a new account following on-screen operating steps. Make the fan (Smart by Bond wi-fi...
-
Page 9: Troubleshooting
Troubleshooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning and lock the service panel to prevent the power from being switched back on accidentally. If the service panel cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the service panel. - Page 10 Oct.2022...
