Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

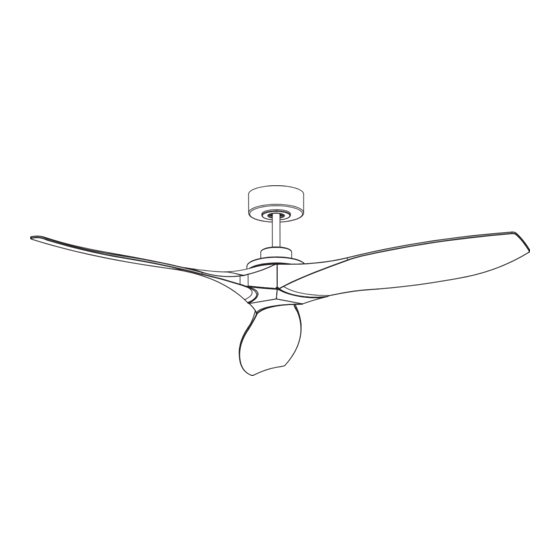

3CLNCSM60XXX Series Fan
cETL Model NO. : 3CLNCSM60XX
RETAILER NAME:
RETAILER ADDRESS:
6.33 kg
14 lbs
Total fan weight
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Monte Carlo Fan Company 3CLNCSM60 Series
Summary of Contents for Monte Carlo Fan Company 3CLNCSM60 Series
- Page 1 Owner’s Guide and Installation Manual 3CLNCSM60XXX Series Fan cETL Model NO. : 3CLNCSM60XX Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 6.33 kg 14 lbs Total fan weight...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, FOLLOW THESE INSTRUCTIONS. Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. - Page 3 Mounting bracket Switch power off at Service panel. Before installing this fan make sure the Use metal outlet box suitable for fan outlet box is properly installed to the support and use only the screws provided Lock service disconnecting means to house structure.
- Page 4 Decorative plate Downrod Top cover Cross pin Keeper pin Rubber pad Yoke Snap a decorative plate onto each blade. Flip over the fan body with blades again. Partially loosen downrod set screws from yoke at top of motor assembly. Note: Make sure they are engaged with Place a rubber pad and a top cover over the blades firmly to make the blades lead wires and safety cable and install the...
- Page 5 SAFETY CABLE INSTALLATION Wall switch Black Note : For better performance of the Power Brown Grey remote operation, keep the WIFI antenna source apart from the antenna of the receiver. Blue White Ground/Green Receiver Wi-Fi antenna Ground/Green Lag screw Canopy Receiver Black Safety cable...
- Page 6 Remote Controller Operation Remove the battery cover from the remote control transmitter and install batteries. Replace the cover. This remote uses 2 1.5V/AAA batteries. Note: If not using for long periods of time, remove the batteries to prevent damage to remote controller, and store the remote controller away from excess heat or humidity.
- Page 7 Install Transmitter wall mount cradle with 2 screws provided. Useful tips: The remote transmitter can be removed by pressing it upward from the lower half. The remote transmitter can be held on magnetic metal materials by a magnet built in the transmitter. The receiver provides the following protective functions: Lock protection: The DC motor has a build-in safety feature Wall mount cradle...
- Page 8 Fan operation with Bond Home APP Download the Bond Home app with your smart devices. The app is available on the Google Play Store and Apple Store. Or get it from bond home link, http://bondhome.io/app Create a new account following on-screen operating steps. Make the fan (Smart by Bond wi-fi...
-
Page 9: Troubleshooting
Troubleshooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning and lock the service panel to prevent the power from being switched back on accidentally. If the service panel cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the service panel. - Page 10 Aug.2021 Nov.2021 update about Bond App Mar.2022 Add a wording about antennas of w-fi and receiver Jul.2022 UI of the Bnon App...
