Summary of Contents for Vicon IQeye 9 Series

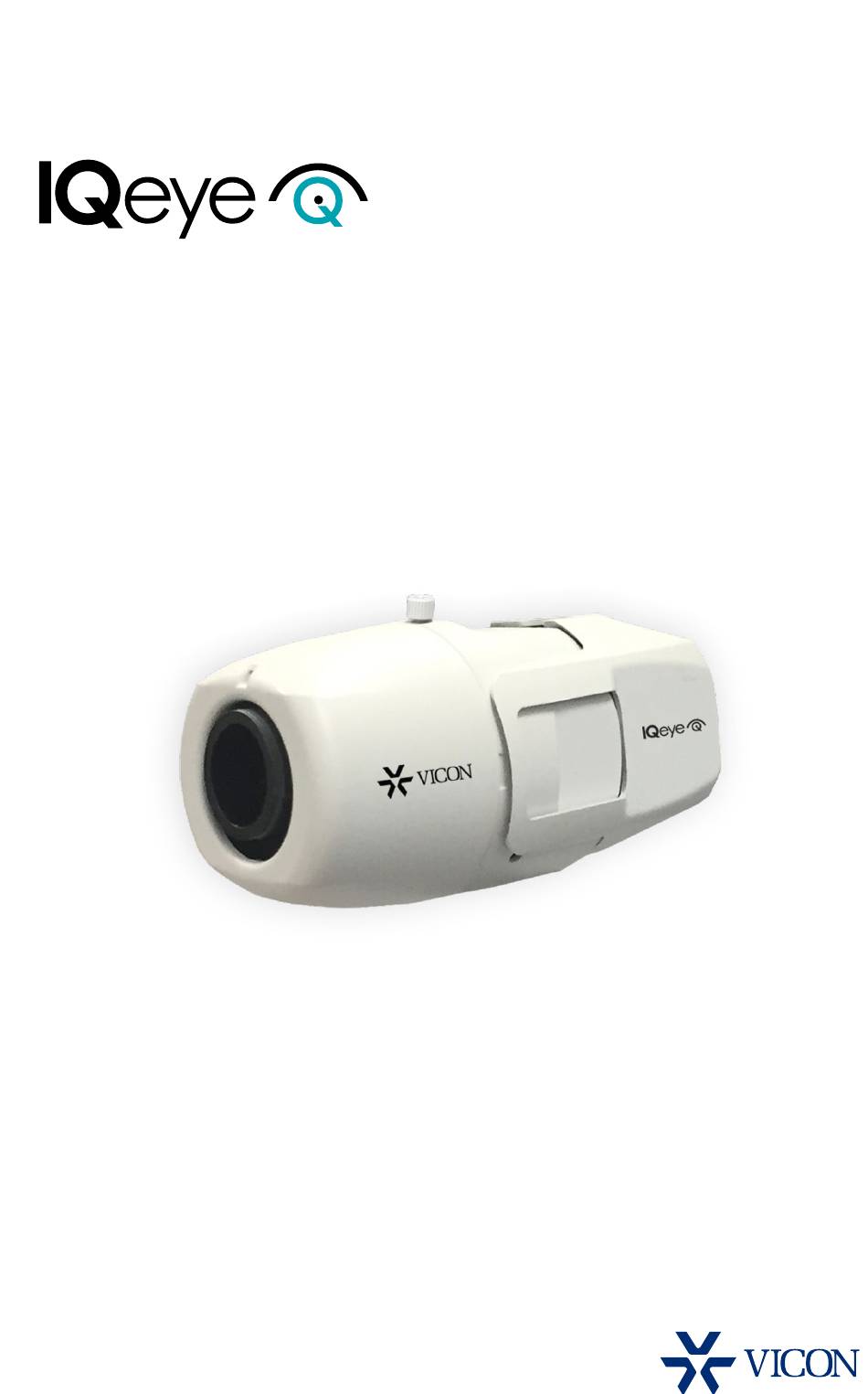

- Page 1 IQeye 9 Series Megapixel Indoor IP Camera Quick Install Guide...
-
Page 2: Table Of Contents
The firmware in this device contains open source software licensed under various open source licenses. For complete license information please open the URL: http://<camera_ ip>/thirdpartysoftwarelicenses.txt Contents Unpacking Service Description Installation Camera Connection Overview Mounting Options Connections Field-of-View and Focus Adjustments PC Configuration Factory Reset Reassembly Shipping Instructions Vicon Warranty... -
Page 3: Unpacking
1 Unpacking Unpack carefully. This is an electromechanical device and should be handled carefully. Be sure to go to our website www.vicon-security.com to assure you have the most current documentation and utility tools. 2 Service If the unit needs repair service or parts, the customer should contact Vicon Industries for authorization to return, as well as shipping instructions. -
Page 4: Installation
4 Installation The camera is delivered fully assembled. To access connectors, the back cover and front cap must be removed. Pull off the back cover to access connections for Ethernet, AUX power, Alarm, Audio and Video Out. To remove the back cover, gently pull out on the tabs holding the back cover in place. -
Page 5: Camera Connection Overview
5 Camera Connection Overview 3, 4, 5 Figure 3 Network Connector - RJ-45 Power-over-Ethernet connector. AUX Power Connector - Captive 2-pin push-in terminal for 12-24 VDC or 24 VAC power source. Alarm In/Alarm Out - Push-in terminal connections for alarm in, alarm (relay control) out and alarm ground. -
Page 6: Mounting Options
6 Mounting Options The camera has two standard 1/4-20 mounting holes, on top and bottom, to attach the camera onto any appropriate mount. 7 Connections Refer to the previous Connection Overview as needed when making camera connections. Power 1. Plug the IQeye camera into the network. 2. - Page 7 Alarm, Audio and Video Out A push-in terminal is provided for connections for I/O Alarms, Audio In and Out and Video Out. A 1.5 mm screwdriver is provided with the camera to push down on the tabs while inserting wires. Refer to Figure 6. Figure 6 Alarm External devices can be used to signal the camera to react upon events.
- Page 8 Audio The camera provides an internal microphone. Additionally, there are push-in terminal connections for Audio In, Audio Out and Audio Ground for external devices. Note: These are line level signals and are not intended for direct microphone input. Use an external MIC to line amplifier if Audio In is to be used for microphone applications.
-
Page 9: Field-Of-View And Focus Adjustments
Enable the IR Capability From the camera web interface, select the Setup tab and then select Advanced. Under Daynight Settings, in the IR accessory installed field, select enabled from the dropdown. Refer to Figure 9A. Figure 9A 8 Field-of-View and Focus Adjustments The 9 series camera position, field-of-view and focus adjustment can be performed using an analog monitor or by using a browser to view the camera image. -
Page 10: Pc Configuration
IP address using Automatic Private IP addressing. A static IP address can be configured using either IQfinder or IQmanager. 1. Download and install IQfinder from the Vicon website. Launch and scan for cameras on the network by clicking the refresh button. The detected cameras will be displayed in the IQfinder window. -
Page 11: Factory Reset
3. To view a camera, double-click a camera entry (refer to Figure 10). The “Live” page will be displayed through the default browser (IE recommended). It is also possible to open Internet Explorer and enter the IP address of the IQeye camera in the address field of the browser. -
Page 12: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 13: Vicon Warranty
Vicon. The sole remedy under this Warranty is that defective equipment be repaired or (at the Company’s option) replaced, at Company repair centers, provided the equipment has been... - Page 14 (f) to consumables (such as storage media or batteries) (g) to products that have been purchased “as is” and Vicon the seller or the liquidator expressly disclaim their warranty obligation pertaining to the...
- Page 15 THE TERMS OF THIS WARRANTY APPLY ONLY TO SALES MADE WHILE THIS WARRANTY IS IN EFFECT. THIS WARRANTY SHALL BE OF NO EFFECT IF AT THE TIME OF SALE A DIFFERENT WARRANTY IS POSTED ON THE COMPANY’S WEBSITE, WWW.VICON- SECURITY.COM. IN THAT EVENT, THE TERMS OF THE POSTED WARRANTY SHALL...
- Page 16 135 Fell Court Hauppauge, NY 11788 | www.vicon-security.com 901-0389 Rev B...
