Ecolink WST-611 Installation Manual

WST-611 Flood and Freeze Sensor
Installation Manual
SPECIFICATIONS
Frequency: 319.5 MHz
Battery: One 3Vdc lithium CR2450 (620mAH)
Battery life: up to 10 years
Detect Freeze at 41°F (5°C) restores at 45°F (7°C)
Detect a minimum of 1/64
OPERATION
The WST-611 sensor is designed to detect water across the gold probes and will alert immediately when present.
The Freeze sensor will trigger when the temperature is below 41°F (5°C) and will send a restoral at 45°F (7°C).
ENROLLING
To enroll the sensor, set your panel into sensor learn mode. Refer to your specific alarm panel instruction manual
for details on these menus. On the WST-611 locate the vertical line on the side of the sensor, you will need a
magnet (not included) to initiate a transmission from the sensor.
1. To learn in as a flood sensor, tap a magnet to the sensor at the point indicated by the line. Repeat as
required.
2. To learn the freeze sensor, tap and hold a magnet at the point indicated by the line, until the LED lights up
(approximately 2 second). Repeat as required.
Alternately, the serial number printed on the back of each unit can be manually entered into the panel.
PLACEMENT
Place the flood detector anywhere that you wish to detect a flood or freezing
temperature, such as under a sink, in or near a hot water heater, a basement or
behind a washing machine. If you would like to make sure the flood does not

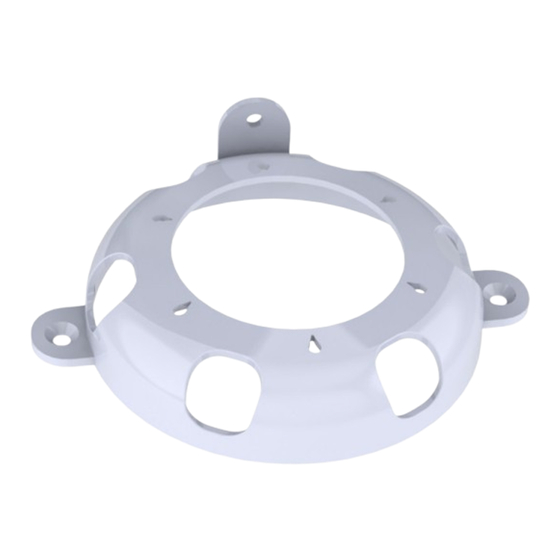

move from its intended location, use the provided sensor bracket and secure it
either to the floor or wall.
Testing the unit
By using a magnet you can send a Flood OR Freeze transmission. Place the magnet on the line located on the side
of the case and remove it within 1 second. This will send a Flood transmission, if you hold the magnet for 2 seconds,
it will send a Freeze transmission. Placing wet fingers on any two adjacent probes will also trigger a flood
transmission.
REPLACING THE BATTERY
When the battery is low a signal will be sent to the control panel. To replace the battery:
1. Carefully remove the white rubber feet on the bottom of the flood detector.
2. Remove the 3 screws and open the case. Replace battery with a Panasonic CR2450 Lithium Battery
3. Replace the screws and rubber feet
th in of water
patent pending
Operating Temperature: 32°-120°F (0°-49°C)
Operating Humidity: 5-95% RH non condensing
Compatible with Interlogix / UTC
Supervisory signal interval: 64 min(approx.)
