FLZB1-ECO
Flood Sensor
Installation Manual & User Guide
SPECIFICATIONS
Frequency: 2.4GHz
Battery: Two,1.5Vdc AAAA Alkaline (3Vdc Nominal) Operating Humidity: 5-95% RH non condensing
Battery life: 4 years?
Water Detect Depth: Minimum of 0.397mm (1/64")
3
Party Certifications: FCC, IC, ETL, ZigBee 3.0
rd
OPERATION

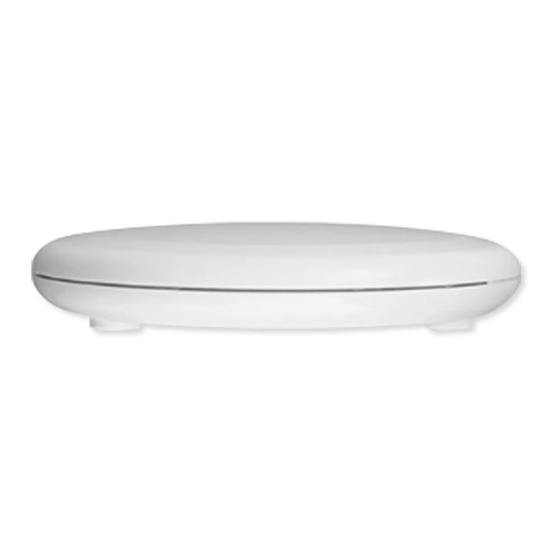

The FLZB1-ECO is a battery-powered sensor for home security or home automation applications. The FLZB1-ECO is
triggered by the presence of water in contact with the built in flood probes on the bottom of the case which
causes the FLZB1-ECO to transmit.
ENROLLING
To enroll the sensor, remove the top cover by prying off
at one of the tabs on either side. Set your panel into
program mode. Refer to your specific alarm panel
instruction manual for details on these menus. Once in
program mode, place the batteries into the sensor and
follow the instructions that appear on the panel. When
"Trip to Pair" appears on the screen, press the tamper
button to complete the enrollment process. See LED
section below for more information on initial power up
behavior.
NOTE: For best results, pair the device to your panel
before installation.
MOUNTING
The device is designed to be used on a flat surface without the need for mounting. A protective cover is supplied
which can be screwed down over the sensor to protect it from damage or from being moved from the set location.
Operating Temperature: 32°-120°F (0°-49°C)
Supervisory signal interval: 27 min(approx.)
Maximum current draw: 135mA during transmission
A Universal Electronics Company
Advertisement
Table of Contents
Related Manuals for Ecolink FLZB1-ECO
Summary of Contents for Ecolink FLZB1-ECO
- Page 1 Party Certifications: FCC, IC, ETL, ZigBee 3.0 OPERATION The FLZB1-ECO is a battery-powered sensor for home security or home automation applications. The FLZB1-ECO is triggered by the presence of water in contact with the built in flood probes on the bottom of the case which causes the FLZB1-ECO to transmit.
- Page 2 Consult the dealer or an experienced radio/TV contractor for help. • WARNING: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 WARRANTY Ecolink Intelligent Technology Inc warrants that for a period of 3 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications.
