Product Overview

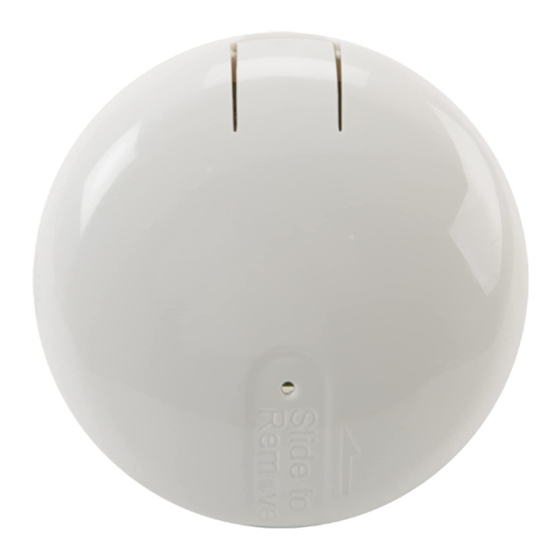

Z-Wave+™ enabled device which provides fire and CO (carbon monoxide)
status
Transmits Fire and CO alarm status
Reports tamper condition when cover is open
Product Specifications
For indoor use only
Detection Distance: 6 inches max
Operating frequency: 908.42 MHz
Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature)
Operating humidity 5-95% non-condensing
Battery type required: 3V Lithium CR123A
Battery life approximately 5 years
Network Inclusion
The sensor must be added to a Z-Wave network prior to use. To include the sensor in a network both the
sensor and the network controller must be in inclusion mode at the same time. Refer to the instructions
provided by the manufacturer of your specific controller for details on initiating the controller's inclusion mode.
1)
Verify that the Z-wave Plus controller you are using is compatible with the FireFighter
2)
Either mount or move the FireFighter
remain. See installation section below.
3)
Put your Z-wave Plus Controller into add (inclusion) mode.
4)
Open the FireFighter
starts blinking continually, the sensor has not been added. Repeat steps 3 and 4.
Network Exclusion
1)
Any sensor can be removed from any Z-Wave Plus controller. Follow the directions to put your Z-
Wave Plus Controller into exclusion mode.
2)
Open the FireFighter
successfully removed from the Z-Wave Plus network, the devices Green LED should blink slowly
continuously.
© 2016 Ecolink Intelligent Technology Inc.
Audio Detector Installation Instructions
tm
case and press the learn button on the device for one second. If the LED
tm
case and press the learn button on the device for one second. If
tm
sensor as close as possible to the location the sensor will
tm
.
PN FF-ZWAVE5-ECO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ecolink firefighter
Summary of Contents for Ecolink firefighter
- Page 1 Refer to the instructions provided by the manufacturer of your specific controller for details on initiating the controller’s inclusion mode. Verify that the Z-wave Plus controller you are using is compatible with the FireFighter Either mount or move the FireFighter sensor as close as possible to the location the sensor will remain.
-
Page 2: Led Status
Factory Default The FireFighter™ can be restored back to factory default settings which will remove its Z-Wave Plus node ID from the sensor (but not the controller) with the following steps. Please use this procedure only when the network primary controller is missing or otherwise inoperable. -
Page 3: Installation
Identify Location for Sensor: STEP ONE Determine the location of the smoke or CO detector that you require the FireFighter to detect. Note, that the sensor must be mounted within 6 inches of the detector with the microphone oriented toward the detector. - Page 4 6” max Microphone (Left) Smoke Detector (Right) Firefighter. Make sure the microphone (holes on side of unit) is pointed toward the smoke detector STEP TWO Mount the sensors mounting plate to a clean dry surface with the adheasive tape and/or the screws provided Note: the arrow should point toward the device that the FireFighter is intended to detect.
- Page 5 Z-Wave Plus command class functionality. The following information is intended for software engineers working on Z-Wave Plus controllers and home automation enthusiasts to integrate the Z-Wave Plus FireFighter™ into their system. Generic Device Class...
- Page 6 Z-Wave Plus Command Class Multi Level Sensor The FireFighter™ has a temperature sensor built into the device and can be queried on a Wake Up Notification with a Multi-Level Sensor Get command. The sensor supports reporting both in Celsius and Fahrenheit.
-
Page 7: Wake-Up Notification
200 seconds. The sensor will also send a wakeup notification whenever the case is closed. The FireFighter™ detector does not detect the presence of smoke, heat, or fire directly. It relies solely on the presence of an audio alarm signal generated by an existing smoke or fire detector in proximity to the Firefighter™... - Page 8 Warranty Ecolink Intelligent Technology Inc . warrants that for a period of 3 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications.
