Ecolink WST-621v2 Installation Manual

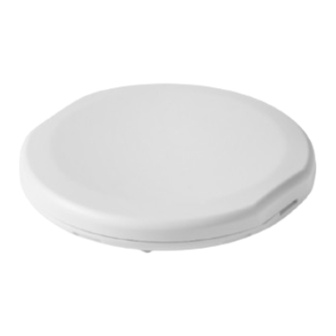

WST-621v2 Flood and Freeze Sensor
Installation Manual
Specifications
Frequency: 319.5MHz
Operating Temperature: 32° – 120°F (0° –
Operating Humidity: 5 – 95% RH non condensing
Battery: One 3Vdc lithium CR2450 (620mAH)
Battery life: Up to 8 years
Detect Freeze at 41°F (5°C) restores at 45°F (7°C)
Detect a minimum of 1/64th in of water
Compatible with Honeywell receivers
Supervisory signal interval: 64 min(approx.)
Package Contents
1x Flood and Freeze Sensor
1x Installation Manual
1x CR2450 Battery
Optional Accessories
(included in select kits)
1x External Sensor Adapter / Mounting Bracket
2x Mounting Screws
1x Water Detection Rope

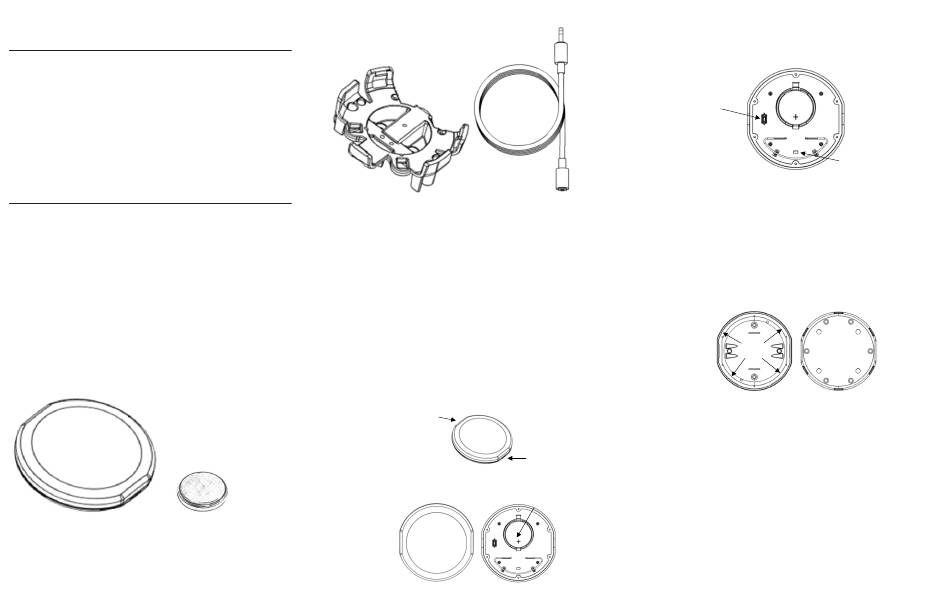

Component Identification
Flood and Freeze Sensor CR2450 Battery
Component Identification (Optional Accessories)
patent pending
External Sensor Adapter / Mounting Bracket
49°C)
OPERATION
The WST-621 sensor is designed to detect water across the gold
probes and will alert immediately when present. The Freeze sensor will
trigger when the temperature is below 41°F (5°C) and will send a
restoral at 45°F (7°C).
ENROLLING
To enroll the sensor, set your panel into sensor learn mode. Refer to
your specific alarm panel instruction manual for details on these
menus.
1. On the WST-621 locate the pry points on opposite edges of the
sensor. Carefully use a plastic pry tool or standard slot head
screwdriver to remove the top cover. (Tools not included)
2. Insert the CR2450 battery with the (+) symbol facing up, if not
already installed.
Water Detection Rope
Mounting Screws
(not shown)
Pry Points
Insert battery this way
3. To learn in as a flood sensor, press and hold the Learn Button
(SW1) for 1 - 2 seconds, then release. A single short on/off blink
at 1 second confirms flood learn is initiated. The LED will remain
solid ON during the learn transmission. The Flood sensor function
enrolls as Loop 1 of the Flood S/N. Repeat as required.
Learn Button (SW1)
4. To learn in as a freeze sensor, press and hold the Learn Button
(SW1) for 2 - 3 seconds, then release. A single short on/off blink
at 1 second plus a double on/off blink at 2 seconds confirms
freeze learn is initiated. The LED will remain solid ON during the
learn transmission. The Freeze sensor function enrolls as Loop 1
of the Freeze S/N. Repeat as required.
5. After successful enrollment, verify the gasket in the top cover is
properly seated, then snap the top cover onto the bottom
cover aligning the flat sides. Inspect the seam all the way
around the edge of the device to ensure it is completely
sealed.
Gasket
Note: Alternately, the 7 digit serial numbers printed on the back of each unit can be manually entered into the
panel. For 2GIG systems the equipment code is "0637"
Testing the Unit
After successful enrollment, a test transmission sending current states
can be initiated by pressing and immediately releasing the Learn
Button (SW1), with the top cover open. The LED will remain solid ON
during the button-initiated test transmission. With the unit fully
assembled and sealed, placing wet fingers on any two probes will
trigger a flood transmission. Note the LED will not illuminate for a wet
flood test and remains OFF during all normal operation.
PLACEMENT
Place the flood detector anywhere that you wish to detect a flood or
freezing temperature, such as under a sink, in or near a hot water
heater, a basement or behind a washing machine. As a best practice
send a test transmission from the desired placement location to ensure
the panel can receive it.
Light Emitting Diode (LED)
