ZigBee Home Automation 1.2
Wireless Digital Pet Immune PIR Detector
1. INTRODUCTION
The URC4470BC0-X-R is a microprocessor-controlled wireless digital PIR detector supported by ZigBee HA 1.2.
The detector's features are as follows :
Up to 15 meters (49.2 ft)
Uniform Detection
White light immunity
Enhanced Pet immunity up to 85Ibs
Enhanced false alarm rejection
In normal mode, after detection, the detector goes to sleep to save battery power. It wakes again (reverts to the ready state) if there is no
subsequent detection throughout the following 3-minute period.
Temperature compensation.
Tamper protection.
For UL installations: The detector is for use with UL listed control unit only. Pet immunity has not been evaluated by UL.

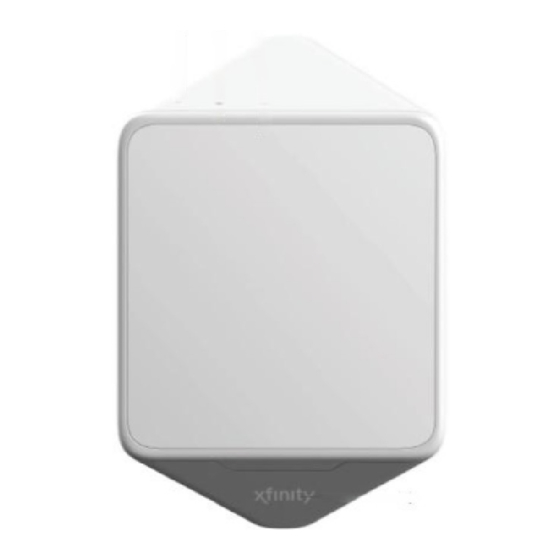

MODEL URC4470BC0-X-R FLAT PIR

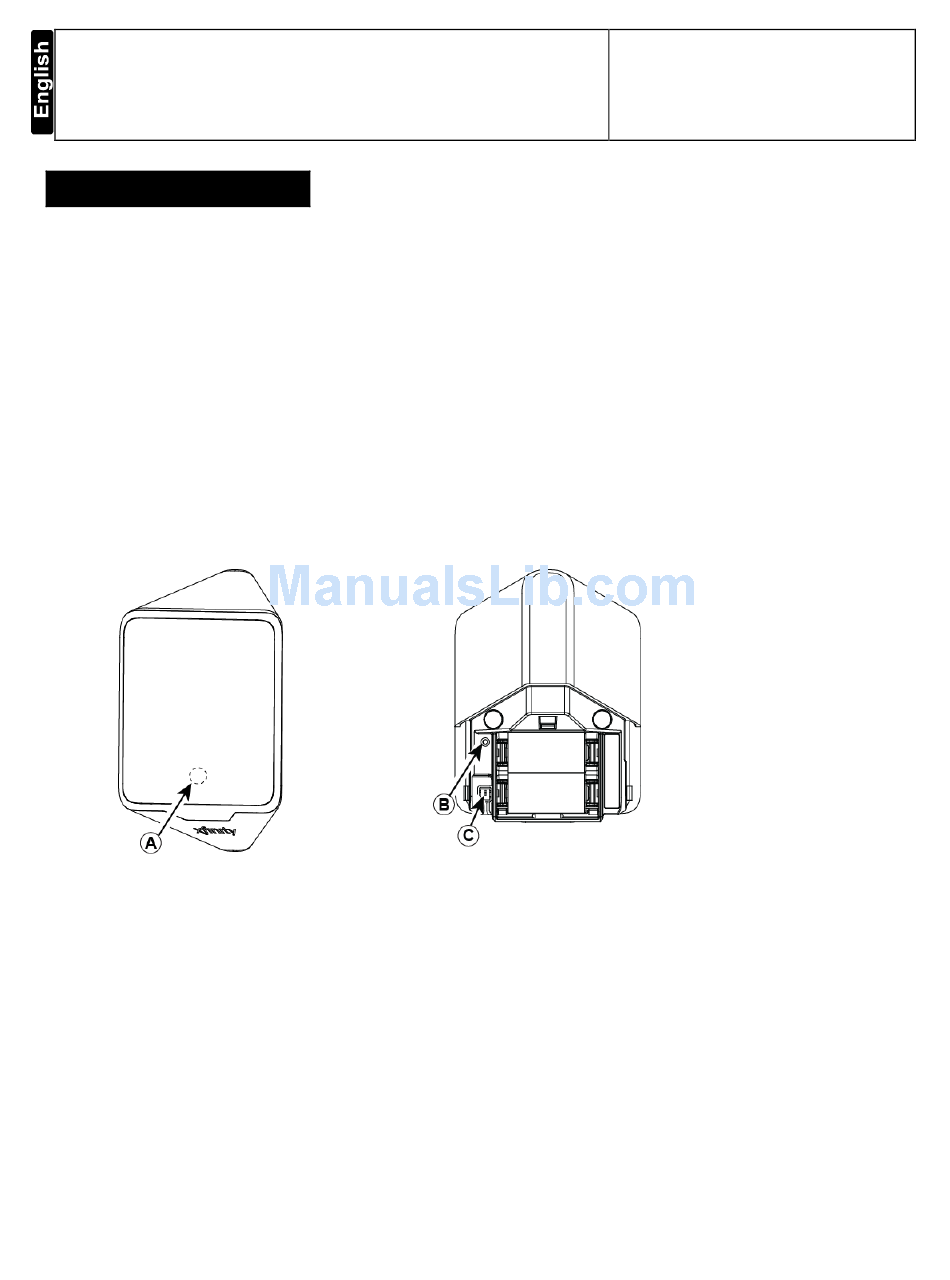

Figure 1 - MP-841
Installation Instructions
A. Red LED
B. Green LED
C. Tamper Switch
1
Advertisement
Table of Contents
Related Manuals for Ecolink URC4470BC0-X-R
Summary of Contents for Ecolink URC4470BC0-X-R
- Page 1 ZigBee Home Automation 1.2 Wireless Digital Pet Immune PIR Detector Installation Instructions 1. INTRODUCTION The URC4470BC0-X-R is a microprocessor-controlled wireless digital PIR detector supported by ZigBee HA 1.2. The detector’s features are as follows : Up to 15 meters (49.2 ft) ...
- Page 2 2. SPECIFICATIONS Two - Dual element low-noise pyroelectric sensor Detector Type 18 parabolic mirrors for long range Optical Data 18 parabolic mirrors for close range 15 x 15 m, (49.2 x 49.2 ft) / 90° Max. Coverage Up to 38 kg (85 lb) Pet Immunity ELECTRICAL Two 3V Lithium batteries, type CR-123A.
- Page 3 7. Mount on solid stable surface. Figure 2. General Guidelines 3.2 Installation Procedure Figure 4 – Bracket Mounting Figure 3 – Opening the Unit Figure 5 – Removing activation strip Figure 6 – Mounting Detector on Bracket MODEL URC4470BC0-X-R FLAT PIR...
- Page 4 Push in the direction of the arrow shown in the drawing to separate the detector from the bracket. Mount the bracket on the wall. Install new batteries. -OR- If batteries are already installed, pull the activation strip. Mount the detector on the bracket by sliding it downward until a click is heard.
- Page 5 TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. MODEL URC4470BC0-X-R FLAT PIR...
- Page 6 To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. USA: CFR 47 Part 15, UL 639 MODEL XXXX FLAT PIR...
