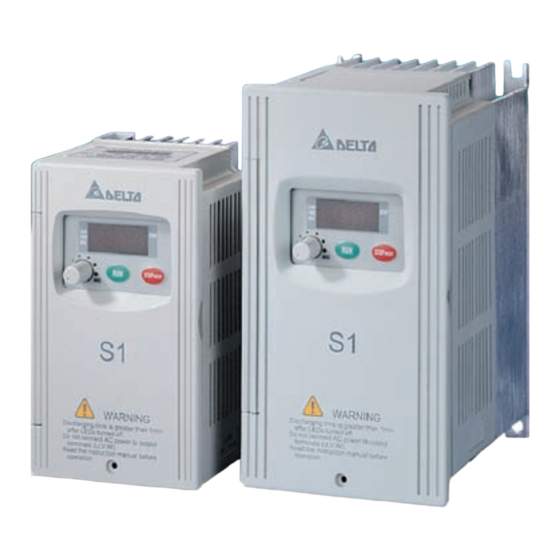

Delta Electronics VFD S 115V Series User Manual

Compact low-cost easy-to-use general-purpose ac motor drives
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Delta Electronics VFD S 115V Series

Summary of Contents for Delta Electronics VFD S 115V Series

  • Page 4: Preface

    Preface Thank you for choosing DELTA’s high-performance VFD-S Series. The VFD-S Series is manufactured with high-quality components and materials and incorporate the latest microprocessor technology available. This manual is to be used for the installation, parameter setting, troubleshooting, and daily maintenance of the AC motor drive.
  • Page 5 WARNING! DO NOT use Hi-pot test for internal components. The semi-conductor used in the AC motor drive is easily damaged by high-pressure. There are highly sensitive MOS components on the printed circuit boards. These components are especially sensitive to static electricity. To prevent damage to these components, do not touch these components or the circuit boards with metal objects or your bare hands.

  • Page 6: Table Of Contents

    Table of Contents Preface ......................i Table of Contents ...................iii Chapter 1 Introduction .................1-1 1.1 Receiving and Inspection..............1-1 1.1.1 Nameplate Information..............1-1 1.1.2 Model Explanation ..............1-1 1.1.3 Series Number Explanation ............1-2 1.1.4 Drive Frames ................1-2 1.2 Appearances..................1-2 1.3 Installation Steps ................
  • Page 7 3.1 Preparations before Start-up............... 3-1 3.2 Operation Method ................3-2 3.3 Trial Run ..................... 3-2 Chapter 4 Digital Keypad Operation ............4-1 4.1 Description of the Digital Keypad............4-1 4.2 Explanation of LED Indicators............. 4-1 4.3 Explanations of Display Messages ............. 4-1 4.4 How to Operate the Digital Keypad.............
  • Page 8 Group 3: Output Function Parameters ..........5-31 Group 4: Input Function Parameters..........5-35 Group 5: Multi-step Speeds and PLC Parameters......5-47 Group 6: Protection Parameters ............5-52 Group 7: Motor Parameters .............. 5-57 Group 8: Special Parameters............. 5-58 Group 9: Communication Parameters..........5-62 Group A: PID Control .................
  • Page 9 7.15 Affecting Other Machines ............... 7-10 Chapter 8 Maintenance and Inspections ............8-1 Appendix A Specifications ................. A-1 Appendix B Accessories ................B-1 B.1 All Brake Resistors & Brake Units Used in AC Motor Drives ....B-1 B.1.1 Dimensions and Weights for Brake resistors ......B-3 B.2 EMI Filters ..................

  • Page 10: Chapter 1 Introduction

    OUTPUT : 3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP Output Frequency Range Frequency Range : 1-400Hz Serial Number & Bar Code 007S23A0T7010001 MADE IN XXXXX DELTA ELECTRONICS INC. 1.1.2 Model Explanation Version Type Input Voltage 11:Single phase 115V 21:Single phase 230V 23:Three phase 230V...

  • Page 11: Series Number Explanation

    Chapter 1 Introduction|VFD-S Series 1.1.3 Series Number Explanation 007S23A Production number Production week Production year 2006 Production factory (Taoyuan) 230V 3-phase 1HP(0.75kW) Model If the nameplate information does not correspond to your purchase order or if there are any problems, please contact your distributor. 1.1.4 Drive Frames Frame Power range...

  • Page 12: Installation Steps

    Chapter 1 Introduction|VFD-S Series 1.3 Installation Steps KNOB COVER CASE HEAT SINK SCREW DIVISION PLATE Installation Steps Remove front cover screw and open. Remove Division Plate. If using optional conduit bracket, please refer to next page. Connect AC Input Power and motor leads. Never connect the AC drive output terminals U/T1, V/T2, W/T3 to main AC Input power.

  • Page 13: Storage

    Chapter 1 Introduction|VFD-S Series SCREW DIVISION PLATE Reinstall Division Plate. Screw Torque: 5 to 6 kgf-cm (4.3 to 5.2 in-lbf) CONDUIT BRACKET SCREW SCREW Install Conduit Bracket cover and tighten screws. 1.4 Storage The AC motor drive should be kept in the shipping carton or crate before installation. In order to retain the warranty coverage, the AC motor drive should be stored properly when it is not to be used for an extended period of time.
  • Page 14 Chapter 1 Introduction|VFD-S Series If the AC motor drive is stored for more than 3 months, the temperature should not be higher than 30 °C. Storage longer than one year is not recommended, it could result in the degradation of the electrolytic capacitors. When the AC motor drive is not used for a long time after installation on building sites or places with humidity and dust, it’s best to move the AC motor drive to an environment as stated above.
  • Page 15 Chapter 1 Introduction|VFD-S Series This page intentionally left blank. Revision August 2008, SE09, SW V2.61...

  • Page 16: Chapter 2 Installation And Wiring

    Chapter 2 Installation and Wiring 2.1 Ambient Conditions Install the AC motor drive in an environment with the following conditions: Operation Air Temperature: -10 ~ +40°C (14 ~ 104°F), Non-condensing and not frozen Relative Humidity: <90%, no condensation allowed Atmosphere pressure: 86 ~ 106 kPa Installation Site Altitude: <1000m...
  • Page 17 Chapter 2 Installation and Wiring|VFD-S Series When installing multiple AC motor drives in the same cabinet, they should be adjacent in a row with enough space. When installing one AC motor drive below another one, use a metal separation barrier between the AC motor drives to prevent mutual heating. Refer to figure below for details.

  • Page 18: Dimensions

    Chapter 2 Installation and Wiring|VFD-S Series 2.3 Dimensions (Dimensions are in millimeter and [inch]) Frame S1: VFD002S11A, VFD002S21A, VFD002S23A 85.0 [3.35] 5.8 [0.23] 88.0 [3.47] 13.0 [0.51] 74.0 [2.92] 5.0 [0.20] 5.0 [0.20] Revision August 2008, SE09, SW V2.61...
  • Page 19 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD002S11B, VFD002S21B 8 5 .0 [3 .3 5] 5 . 8 [0. 23 ] 88 .0 [3 .4 7 ] 74 .0 [2 .9 2] 1 3 .0 [0 .5 1] 73 .0 [2 .8 8 ] 67 .8 [2 .6 7] 13 .0 [0 .5 1] 5 .
  • Page 20 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD004S11A, VFD004S21A, VFD004S23A 8 5 .0 [3 .3 5] 5. 8 [0 . 23 ] 10 2 . 0 [ 4. 02 ] 7 4 .0 [2 .9 2] 2 . 8 [0. 11 ] 5 .
  • Page 21 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD004S11B, VFD004S21B 85 .0 [3 .3 5] 5. 8 [0. 23 ] 10 2. 0 [ 4. 02 ] 74 .0 [2 .9 2] 74 .0 [2 .9 2] 2 . 8 [0. 11 ] 73 .0 [2 .8 8 ] 67 .8 [2 .6 7] 27 .0 [1 .0 6]...
  • Page 22 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD007S21A, VFD007S23A 85 .0 [3 .3 5] 5. 8 [0. 23 ] 12 4. 0 [ 4. 89] 74 .0 [2 .9 2] 2. 8 [0. 11 ] 5. 0 [0. 20 ] 5.
  • Page 23 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD007S21B 85 .0 [3 .3 5] 5. 8 [0. 23 ] 12 4. 0 [ 4. 89] 74 .0 [2 .9 2] 74 .0 [2 .9 2] 2. 8 [0. 11 ] 67 .8 [2 .6 7] 50 .0 [1 .9 7] 73 .0 [2 .8 8]...
  • Page 24 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD004S43A, VFD004S43E, VFD007S43A, VFD007S43E 85 .0 [3 .3 5] 5. 8 [0. 23 ] 12 6. 0 [ 4. 96] 74 .0 [2 .9 2] 3. 0 [0. 12 ] 5. 0 [0. 20 ] 5.
  • Page 25 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD004S43B, VFD007S43B 85 .0 [3 .3 5] 5. 8 [0. 23 ] 12 6. 0 [ 4. 96] 74 .0 [2 .9 2] 3 . 0 [0. 12 ] 73 .0 [2 .8 8] 67 .8 [2 .6 7] 51 .0 [2 .0 1] 5.
  • Page 26 Chapter 2 Installation and Wiring|VFD-S Series Frame S1: VFD002S21E, VFD004S21E, VFD007S21E, VFD015S23D 85 .0 [3 .3 5] 5. 8 [ 0. 23 ] 12 7. 0 [ 5. 00] 74 .0 [2 .9 2] 8. 5 [ 0. 33 ] 5.
  • Page 27 Chapter 2 Installation and Wiring|VFD-S Series Frame S2: VFD007S11A 10 0. 0 [ 3. 94] 86 .5 [3 .4 1] 5. 4 [0. 21 ] 12 9. 0 [ 5. 08] 5. 5 [0. 22 ] 5. 5 [0. 22 ] 2-12 Revision August 2008, SE09, SW V2.61...
  • Page 28 Chapter 2 Installation and Wiring|VFD-S Series Frame S2: VFD007S11B 10 0. 0 [ 3. 94] 86 .5 [3 .4 1] 5. 4 [0. 21 ] 12 9. 0 [ 5. 08] 73 .0 [2 .8 8] 67 .8 [2 .6 7] 53 .5 [2 .11] 5.
  • Page 29 Chapter 2 Installation and Wiring|VFD-S Series Frame S2: VFD015S21D, VFD015S21E, VFD015S43D, VFD015S43E, VFD022S21D, VFD022S21E, VFD022S23D, VFD022S43D, VFD022S43E 10 0 . 0 [ 3. 94 ] 5 . 4 [0. 2 1 ] 12 9. 3 [ 5. 09] 86 .5 [3 .4 1] 8.
  • Page 30 Chapter 2 Installation and Wiring|VFD-S Series Frame S2: VFD015S21U, VFD015S43U, VFD022S21U, VFD022S43U 5.4 [0.21] 129.3 [5.09] 100.0 [3.94] 86.5 [3.41] 8.5 [0.33] 67.8 [2.67] 53.9 [2.12] 73.0 [2.88] 5.5 [0.22] 5.5 [0.22] Revision August 2008, SE09, SW V2.61 2-15...

  • Page 31: Wiring

    Chapter 2 Installation and Wiring|VFD-S Series 2.4 Wiring After removing the front cover, check if the power and control terminals are clear of debris. Be sure to observe the following precautions when wiring. General Wiring Information Applicable Codes All VFD-S series are Underwriters Laboratories, Inc. (UL) and Canadian Underwriters Laboratories (cUL) listed, and therefore comply with the requirements of the National Electrical Code (NEC) and the Canadian Electrical Code (CEC).

  • Page 32: Basic Wiring

    Chapter 2 Installation and Wiring|VFD-S Series 2.4.1 Basic Wiring Make sure that power is only applied to the R/L1, S/L2, T/L3 terminals. Failure to comply may result in damage to the equipment. The voltage and current should lie within the range as indicated on the nameplate.
  • Page 33 Chapter 2 Installation and Wiring|VFD-S Series For VFDXXXSXXA/B/D/U Brake Resistor (optional) Jumper select 80 120W, 200 120W, Ω Ω 120W Ω Main Circuit Power +2/B1 AC Motor R/L1 R/L1 U/T1 S/L2 S/L2 V/T2 T/L3 T/L3 W/T3 Recommended Circuit Grounding resistance when power supply less than 100 is turned OFF by a...
  • Page 34 Chapter 2 Installation and Wiring|VFD-S Series For VFDXXXSXXE NPN (sink mode) Brake Resistor (optional) Jumper 120W, 200 120W select 80Ω Ω 120W Ω Main Circuit Power AC Motor +2/B1 U/T1 R/L1 R/L1 V/T2 S/L2 S/L2 +17V W/T3 T/L3 T/L3 Grounding resistance less than 100 Ω...
  • Page 35 Chapter 2 Installation and Wiring|VFD-S Series Two/Three wire control Forward/Stop The wiring for Reverse/Stop Pr.4-04=d1 Reset Multi-function Multi-step 1 Input Terminals Multi-step 2 Multi-step 3 Common Signal Run/Stop The wiring for Forward/Reverse Pr.4-04=d2 Reset Multi-function Multi-step 1 Input Terminals Multi-step 2 Multi-step 3 Comm on Signal Stop...
  • Page 36 Chapter 2 Installation and Wiring|VFD-S Series For VFDXXXSXXE NPN Mode NPN mode with external power NPN mode without external power +17V +17V Forward/Stop Forward/Stop Reverse/Stop Reverse/Stop Reset Reset Multi-step 1 Multi-step 1 Multi-step 2 Multi-step 2 Multi-step 3 Multi-step 3 Common Signal NOTE Don't apply the mains voltage...

  • Page 37: External Wiring

    Chapter 2 Installation and Wiring|VFD-S Series 2.4.2 External Wiring Power Supply Items Explanations Please follow the specific power Power supply requirements shown in supply Appendix A. FUSE/NFB There may be an inrush current during power up. Please check the Fuse/NFB chart of Appendix B and select the (Optional) correct fuse with rated current.

  • Page 38: Main Terminals Connections

    Chapter 2 Installation and Wiring|VFD-S Series 2.4.3 Main Terminals Connections Terminal Symbol Explanation of Terminal Function R/L1, S/L2, T/L3 AC line input terminals (3-phase) L/L1, N/L2 AC line input terminals (1-phase) AC drive output terminals for connecting 3-phase induction U/T1, V/T2, W/T3 motor Connections for DC choke.
  • Page 39 Chapter 2 Installation and Wiring|VFD-S Series DO NOT connect phase-compensation capacitors or surge absorbers at the output terminals of AC motor drives. With long motor cables, high capacitive switching current peaks can cause over-current, high leakage current or lower current readout accuracy. To prevent this, the motor cable should be less than 20m for 3.7kW models and below.

  • Page 40: Control Terminals

    Chapter 2 Installation and Wiring|VFD-S Series 2.4.4 Control Terminals Control Terminal Wiring (Factory Setting) A. XXXSXXA/B/D/U AFM M0 M5 GND M2 M3 Relay contactor output Factory setting : Fault indication Photo coupler output Operation freq. setting Factory setting : in work potentiometer VR : 3K~5K RJ11...
  • Page 41 Chapter 2 Installation and Wiring|VFD-S Series Terminal Factory Settings (NPN mode) Terminal Function Symbol ON: Connect to GND The voltage output type for this analog signal is PWM, so this analog voltage is only suitable to connect an external movable coil meter, not suitable to connect a digital meter or for A/D signal conversion.
  • Page 42 Chapter 2 Installation and Wiring|VFD-S Series Analog input terminals (AVI, GND) Analog input signals are easily affected by external noise. Use shielded wiring and keep it as short as possible (<20m) with proper grounding. If the noise is inductive, connecting the shield to terminal GND can bring improvement.

  • Page 43: Main Circuit Terminals

    Chapter 2 Installation and Wiring|VFD-S Series 2.4.5 Main Circuit Terminals VFD002S11A/11B, VFD004S11A/11B Power terminal AC Input Line Motor Ter minal Conne ction Groun d Br ak e Res is tor Power Terminal: Torque: 12 kgf-cm (10 lbf-in) Wire Gauge: 14-20 AWG (2.1-0.5mm Wire Type: Copper only, 75 2-28 Revision August 2008, SE09, SW V2.61...
  • Page 44 Chapter 2 Installation and Wiring|VFD-S Series VFD002S21B/23A, VFD004S21B/23A/43A/43B/43E, VFD007S21B/23A/43A/43B/43E, VFD015S23D Power terminal AC Input Line Motor Ter minal Conne ction G roun d Br ak e DC Reac to r Res istor Power Terminal: Torque: 12 kgf-cm (10 lbf-in) Wire Gauge: 14-20 AWG (2.1-0.5mm Wire Type: Copper only, 75 Revision August 2008, SE09, SW V2.61 2-29...
  • Page 45 Chapter 2 Installation and Wiring|VFD-S Series VFD002S21A/E, VFD004S21A/E, VFD007S21A/E Power terminal AC Input Line Motor Terminal Conne ction Groun d DC Reactor Brak e Res istor Power Terminal: Torque: 12 kgf-cm (10 lbf-in) Wire Gauge: 14-20 AWG (2.1-0.5mm Wire Type: Copper only, 75 2-30 Revision August 2008, SE09, SW V2.61...
  • Page 46 Chapter 2 Installation and Wiring|VFD-S Series VFD007S11A/B Power terminal AC Input Line Motor Terminal Conne ction G roun d Brak e Res is tor Power Terminal: Torque: 20 kgf-cm (17.4 lbf-in) Wire Gauge: 10-18 AWG (5.3-0.8mm Wire Type: stranded copper only, 75 Revision August 2008, SE09, SW V2.61 2-31...
  • Page 47 Chapter 2 Installation and Wiring|VFD-S Series VFD015S21U/43D/43E/43U, VFD022S21U/23D/43D/43E/43U Power terminal AC Input Line Motor Terminal Conne ction Br ak e DC Reacto r Groun d Res istor Power Terminal: Torque: 20 kgf-cm (17.4 lbf-in) Wire Gauge: 10-18 AWG (5.3-0.8mm Wire Type: stranded copper only, 75 2-32 Revision August 2008, SE09, SW V2.61...
  • Page 48 Chapter 2 Installation and Wiring|VFD-S Series VFD015S21D/E, VFD022S21D/E Power terminal AC Input Line Motor Ter minal Conne ction Groun d Br ak e DC Reacto r Res istor Power Terminal: Torque: 20 kgf-cm (17.4 lbf-in) Wire Gauge: 10-18 AWG (5.3-0.8mm Wire Type: stranded copper only, 75 Revision August 2008, SE09, SW V2.61 2-33...
  • Page 49 Chapter 2 Installation and Wiring|VFD-S Series This page intentionally left blank 2-34 Revision August 2008, SE09, SW V2.61...

  • Page 50: Chapter 3 Start Up

    Chapter 3 Start Up 3.1 Preparations before Start-up Carefully check the following items before proceeding. Make sure that the wiring is correct. In particular, check that the output terminals U/T1, V/T2, W/T3 are NOT connected to power and that the drive is well grounded. Verify that there are no short-circuits between terminals and from terminals to ground or mains power.

  • Page 51: Operation Method

    Chapter 3 Start Up| VFD-S Series 3.2 Operation Method Refer to 4.2 How to operate the digital keypad and chapter 5 parameters for setting. Please choose a suitable method depending on application and operation rule. The operation is usually done as shown in the following table.
  • Page 52 Chapter 3 Start Up| VFD-S Series NOTE 1. Stop running immediately if any fault occurs and refer to the troubleshooting guide for solving the problem. 2. Do NOT touch output terminals U/T1, V/T2, W/T3 when power is still applied to R/L1, S/L2, T/L3 even when the AC motor drive has stopped.
  • Page 53 Chapter 3 Start Up| VFD-S Series This page intentionally left blank Revision August 2008, SE09, SW V2.61...

  • Page 54: Chapter 4 Digital Keypad Operation

    Chapter 4 Digital Keypad Operation 4.1 Description of the Digital Keypad LED Display LED indication Indicate frequency, motor Light during RUN, parameter setting value STOP, FWD and and alarm contents. REV operation. STOP RUN Key Start inverter drive operation. STOP/RESET Key Potentiometer for Stop inverter drive operation frequency setting.
  • Page 55 Chapter 4 Digital Keypad Operation|VFD-S Series Display Message Descriptions The internal PLC process step currently being performed. Displays the DC-BUS voltage Displays the output voltage Displays the AC motor drive forward run status. Displays the AC motor drive reverse run status. The counter value (C).

  • Page 56: How To Operate The Digital Keypad

    Chapter 4 Digital Keypad Operation|VFD-S Series 4.4 How to Operate the Digital Keypad Setting Mode START GO START Note： In the selection mode, press to set the parameters. Setting parameters move down to the previous display Success to Input data error set parameter.
  • Page 57 Chapter 4 Digital Keypad Operation|VFD-S Series This page intentionally left blank Revision August 2008, SE09, SW V2.61...

  • Page 58: Chapter 5 Parameters

    Chapter 5 Parameters The VFD-S parameters are divided into 11 groups by property for easy setting. In most applications, the user can finish all parameter settings before start-up without the need for re-adjustment during operation. The 11 groups are as follows: Group 0: User Parameters Group 1:...

  • Page 59: Summary Of Parameter Settings

    Chapter 5 Parameters|VFD-S Series 5.1 Summary of Parameter Settings : The parameter can be set during operation. Group 0 User Parameters Factory Explanation Settings NOTE Setting 0-00 Identity Code of the AC Motor Drive Read-only 0-01 Rated Current Display of the AC Read-only d##.# Motor Drive...

  • Page 60: Group 2 Operation Method Parameters

    Chapter 5 Parameters|VFD-S Series Factory Explanation Settings NOTE Setting 230V series: d2.0V to d255V 1-04 Mid-Point Voltage (Vmid) 460V series: d4.0V to d510V 1-05 Minimum Output Frequency (Fmin) d1.0 to d60.0 Hz d1.0 230V series: d2.0V to d255V d12.0 1-06 Minimum Output Voltage (Vmin) 460V series: d4.0V to d510V d24.0...
  • Page 61 Chapter 5 Parameters|VFD-S Series Factory Explanation Settings NOTE Setting d3: Master Frequency determined by Potentiometer on the digital keypad. (won’t record the frequency of power loss and it can do analog overlap plus) d4: Master Frequency operated by RS-485 serial communication interface and record frequency Source of Master Frequency of power loss.

  • Page 62: Group 3 Output Function Parameters

    Chapter 5 Parameters|VFD-S Series Group 3 Output Function Parameters Factory Explanation Settings NOTE Setting d0: analog frequency meter 3-00 Analog Output Signal d1: analog current meter 3-01 Analog Output Gain d1 to d200% d100 3-02 Desired Frequency Attained d1.0 to d400 Hz d1.0 3-03 Terminal Count Value...
  • Page 63 Chapter 5 Parameters|VFD-S Series Factory Explanation Settings NOTE Setting d0: No Function d1: FWD/STOP, REV/STOP d2: FWD/REV, RUN/STOP d3: 3-wire Operation Control Mode Multi-Function Input Terminal 1 (M0, d4: E.F. External Fault Input (N.O.) 4-04 d5: E.F. External Fault Input (N.C.) d6: Reset d7: Multi-Step Speed Command 1 d8: Multi-Step Speed Command 2...

  • Page 64: Group 5 Multi-Step Speed And Plc Parameters

    Chapter 5 Parameters|VFD-S Series Group 5 Multi-Step Speed and PLC Parameters Factory Explanation Settings NOTE Setting 5-00 1st Step Speed Freq. d0.0 to d400 Hz d0.0 5-01 2nd Step Speed Freq. d0.0 to d400 Hz d0.0 5-02 3rd Step Speed Freq. d0.0 to d400 Hz d0.0 5-03...
  • Page 65 Chapter 5 Parameters|VFD-S Series Factory Explanation Settings NOTE Setting d4: Enabled during running. After the over-torque is detected, stop running. 6-04 Over-Torque Detection Level d30 to d200% d150 6-05 Over-Torque Detection Time d0.1 to d10.0 Sec d0.1 Electronic Thermal Overload Relay 6-06 d0 to d2 Selection...

  • Page 66: Group 7 Motor Parameters

    Chapter 5 Parameters|VFD-S Series Factory Explanation Settings NOTE Setting d35: Reserved d36: PID error (Pld) d37: Reserved d38: Phase loss (PHL) Group 7 Motor Parameters Factory Explanation Settings NOTE Setting 7-00 Motor Rated Current d30 to d120% 7-01 Motor No-Load Current d0 to d90% 7-02 Torque Compensation d0 to d10...

  • Page 67: Group 9 Communication Parameters

    Chapter 5 Parameters|VFD-S Series Group 9 Communication Parameters Factory Explanation Settings NOTE Setting Communication 9-00 d1 to d254 Address d0: Baud Rate 4800 bps d1: Baud Rate 9600 bps 9-01 Transmission Speed d2: Baud Rate 19200 bps d3: Baud Rate 38400 bps d0: Warn and Keep Operating Transmission Fault d1: Warn and Ramp to Stop...
  • Page 68 Chapter 5 Parameters|VFD-S Series Factory Explanation Settings NOTE Setting Treatment of the Erroneous d0: warn and RAMP to stop A-09 Feedback Signals d1: warn and COAST to stop A-10 Sleep Frequency d0.0 to d400Hz d0.0 A-11 Wakeup Frequency d0.0 to d400Hz d0.0 A-12 Sleep Period...

  • Page 69: Parameter Settings For Applications

    Chapter 5 Parameters|VFD-S Series 5.2 Parameter Settings for Applications Speed Search Related Applications Purpose Functions Parameters Windmill, winding Restart free- Before the free-running motor is 8-06 machine, fan and all running motor completely stopped, it can be restarted 8-07 inertia loads without detection of motor speed.
  • Page 70 Chapter 5 Parameters|VFD-S Series Two-wire/three-wire Related Applications Purpose Functions Parameters FWD/STOP 4-04~4-08 M0 "Open": Stop, "Close": FWD Run REV/STOP M1 "Open": Stop, "Close":REV Run To run, stop, M0 "Open": Stop, "Close": Run RUN/STOP forward and General application reverse by external M1 "Open": FWD, "Close":REV REV/FWD terminals...
  • Page 71 Chapter 5 Parameters|VFD-S Series Over-torque Setting Related Applications Purpose Functions Parameters The over-torque detection level can be 6-03~6-05 set. Once OC stall, OV stall and over- To protect torque occurs, the output frequency Pumps, fans and machines and to will be adjusted automatically. It is extruders have continuous/ suitable for machines like fans and...
  • Page 72 Chapter 5 Parameters|VFD-S Series Output Signal during Running Related Applications Purpose Functions Parameters Signal available to stop braking (brake 3-05~3-06 release) when the AC motor drive is Provide a signal for General application running. (This signal will disappear running status when the AC motor drive is free- running.) Output Signal in Zero Speed...
  • Page 73 Chapter 5 Parameters|VFD-S Series Output Signal when Frequency Attained Related Applications Purpose Functions Parameters When the output frequency is at the 3-05~3-06 desired frequency (by frequency Provide a signal for 3-04 General application command), a signal is given for running status 3-10 external system or control wiring (frequency attained).

  • Page 74: Description Of Parameter Settings

    Chapter 5 Parameters|VFD-S Series 5.3 Description of Parameter Settings Group 0: User Parameters This parameter can be set during operation. 0-00 Identity Code of the AC Motor Drive Settings Read Only Factory setting: d# 0-01 Rated Current Display of the AC motor drive Settings Read Only Factory setting: d ##.#...
  • Page 75 Chapter 5 Parameters|VFD-S Series Multifunction display, see Pr.0-04 Display output current (LED A) Display forward/reverse command (Frd/rEv) 0-04 Content of Multi-function Display Factory Setting: d0 Settings d0 Display the user-defined unit (u) Display the counter value (C) Display the content of PLC time (1.tt) Display the DC BUS voltage (U) Display the output voltage (E) Display frequency commands of PID (P)
  • Page 76 Chapter 5 Parameters|VFD-S Series 0-06 Software Version Settings Read Only Display d #.# 0-07 Password Input Unit: 1 Settings d0 to d999 Factory Setting: d0 Pr.0-07 and Pr.0-08 work together to provide data security for the AC drive. When Pr.0-08 is set to a value other than 0, a password must be entered to alter the values of parameters.
  • Page 77 Chapter 5 Parameters|VFD-S Series Password Decode Flow Chart 0-07 0-08 Displays 0 when Incorrect Password Correct Password entering correct password into Pr.0-07. 0-08 0-07 Displays 0 when 3 chances to enter the correct entering correct password. password into 1st time displays "d 1" if Pr.0-07.
  • Page 78 Chapter 5 Parameters|VFD-S Series bit 5 bit4 Bit 3 bit 1 Setting for Pr. 0-09 8 (factory setting) When Pr. 0-09 is set to b5=0, Pr. 0-09 setting will be saved after power on again. When Pr. 0-02 is set to d10, all parameters (includes Pr.0-09) will be set to factory setting. Revision August 2008, SE09, SW V2.61 5-21...

  • Page 79: Group 1: Basic Parameters

    Chapter 5 Parameters|VFD-S Series Group 1: Basic Parameters Maximum Output Frequency (Fmax) Unit: 0.1 1-00 Settings d50.0 to d400 Hz Factory Setting: d60.0 This parameter determines the AC motor drive’s Maximum Output Frequency. All the AC motor drive frequency command sources (analog inputs 0 to +10V and 4 to 20mA) are scaled to correspond to the output frequency range.
  • Page 80 Chapter 5 Parameters|VFD-S Series This parameter sets the Mid-Point Voltage of any V/f curve. With this setting, the V/f ratio between Minimum Frequency and Mid-Point Frequency can be determined. This parameter must be equal to or greater than Minimum Output Voltage (Pr.1-06) and equal to or less than Maximum Output Voltage (Pr.1-02).
  • Page 81 Chapter 5 Parameters|VFD-S Series If the Upper Limit of Output Frequency is 50Hz and the Maximum Output Frequency is 60Hz, the Maximum Output Frequency will be limited to 50Hz. If the Lower Limit of Output Frequency is 10Hz, and the Minimum Output Frequency (Pr.1-05) is set at 1.0Hz, then any Command Frequency between 1-10Hz will generate a 10Hz output from the drive.
  • Page 82 Chapter 5 Parameters|VFD-S Series The JOG function can be selected using Multi-function Input terminals (Pr.4-04 to Pr.4-08) if programmed for Jog (d10). When the Jog terminal is “closed”, the AC drive will accelerate from Minimum Output Frequency (Pr.1-05) to Jog Frequency (Pr.1-14). When the Jog terminal “open”, the AC drive will decelerate from Jog Frequency to zero.
  • Page 83 Chapter 5 Parameters|VFD-S Series 1-16 Acceleration S-Curve 1-17 Deceleration S-Curve Settings d0 to d7 Factory Setting: d0 These two parameters allow you to configure whether the acceleration and/or deceleration ramps are linear or S-shaped. The S-curve is enabled when set at d1-d7. Setting d1 offers the quickest S-curve and d7 offers the longest and smoothest S-curve.

  • Page 84: Group 2: Operation Method Parameters

    Chapter 5 Parameters|VFD-S Series Group 2: Operation Method Parameters 2-00 Source of Master Frequency Command Factory Setting: d0 Settings Master Frequency input determined by digital keypad. (record the frequency of power loss and it can do analog overlap plus) Master Frequency determined by analog signal DC 0V-10V (external terminal AVI).
  • Page 85 Chapter 5 Parameters|VFD-S Series 2-01 Source of Operation Command Factory Setting: d0 Settings Controlled by the keypad External terminals. Keypad STOP/RESET enabled. External terminals. Keypad STOP/RESET disabled. RS-485 serial communication (RJ-11). Keypad STOP/RESET enabled. RS-485 serial communication (RJ-11). Keypad STOP/RESET disabled.
  • Page 86 Chapter 5 Parameters|VFD-S Series Frequency Frequency output output frequency frequency motor motor speed speed Time Time stops according to free run to stop operation operation decel eration time command STOP STOP command ramp to stop and free run to stop 2-03 Unit: 1 PWM Carrier Frequency Selections...
  • Page 87 Chapter 5 Parameters|VFD-S Series 2-05 Loss of ACI Signal (4-20mA) Factory Setting: d0 Settings Decelerate to 0 Hz Coast to stop and display “EF” Continue operation by last frequency command This parameter is only effective when the Source of Frequency is commanded by a 4 to 20mA signal.

  • Page 88: Group 3: Output Function Parameters

    Chapter 5 Parameters|VFD-S Series Group 3: Output Function Parameters 3-00 Analog Output Signal (AFM) Factory Setting: d0 Settings Analog Frequency Meter (0 to Maximum Output Frequency) Analog Current Meter (0 to 250% of rated AC motor drive current) This parameter sets the function of the AFM output 0~+10VDC (ACM is common). The voltage output type for this analog signal is PWM.
  • Page 89 Chapter 5 Parameters|VFD-S Series For example: When using the meter with full scale of 5 volts, adjust Pr.3-01 to 50%. 3-02 Desired Frequency Attained Unit: 0.1 Settings d1.0 to d400 Hz Factory Setting: d1.0 If a multi-function output terminal is set to function as Desired Frequency Attained (Pr.3-05 or 3-06=d9), then the output will be activated when the programmed frequency is attained.
  • Page 90 Chapter 5 Parameters|VFD-S Series Display (Pr.0-04=d1) Counter Trigger Signal Multi-function Input Terminal Preliminary Counter Value Attained Output The width of trigger signal (Pr. 3-04=d3) should not be less than (Pr. 3-05 to Pr. 3-06=d15) 2ms(<250 Hz) Terminal Count Value Attained Output (Pr.3-03=d5) (Pr.3-05 to Pr.3-06=d14) 3-05...
  • Page 91 Chapter 5 Parameters|VFD-S Series Setting Function Description PLC Program Running the output will be activated when the PLC program is running. PLC Program Step the output will be activated for 0.5 sec. when each multi- Completed step speed is attained. PLC Program Completed the output will be activated for 0.5 sec.

  • Page 92: Group 4: Input Function Parameters

    Chapter 5 Parameters|VFD-S Series Group 4: Input Function Parameters 4-00 Potentiometer Bias Frequency Unit: 0. 1 Settings d0.0 to d100.0% Factory Setting: d0.0 4-01 Potentiometer Bias Polarity Factory Setting: d0 Settings Positive Bias Negative Bias 4-02 Potentiometer Frequency Gain Unit: 1 Settings d1 to d200% Factory Setting: d100...
  • Page 93 Chapter 5 Parameters|VFD-S Series Example 3: The example also shows the popular method. The whole scale of the potentiometer can be used as desired. In addition to signals of 0 to 10V and4 to 20mA, the popular voltage signals also include signals of 0 to 5V, 20 to 4mA or that under 10V.
  • Page 94 Chapter 5 Parameters|VFD-S Series Example 6: In this example, a negative bias is used to provide a noise margin. Also a potentiometer frequency gain is used to allow the Maximum Output Frequency to be reached. Max. Pr.1-00 Output Freq. Gain adjustment 60Hz Factory Settings Pr.1-00=60Hz--Max.
  • Page 95 Chapter 5 Parameters|VFD-S Series Max. Pr.1-00 Output Freq. 60Hz Factory Settings anti-slope Pr.1-00=60Hz--Max. output Freq. Pr.4-00=60Hz--Potentiometer bias freq. Pr.4-01=1 -- bias polarity Pr.4-02=100% -- pot. freq. gain Pr.4-03=1 -- pot. REV. motion enable 20mA Potentiometer Scale 20mA 4-04 Multi-function Input Terminal (M0, M1) Settings d0 to d29 (Only M1 can be set to d0~d29) Factory Setting: d1...
  • Page 96 Chapter 5 Parameters|VFD-S Series Explanations: d0 Parameter Disable: Enter value (d0) to disable any Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4- 06), M4 (Pr.4-07) or M5 (Pr.4-08). NOTE The purpose of this function is to provide isolation for unused Multi-Function Input Terminals. Any unused terminals should be programmed to d0 to insure they have no effect on drive operation.
  • Page 97 Chapter 5 Parameters|VFD-S Series NOTE When value d3 is selected for Pr. 4-04, this will over ride any value entered in Pr.4-05, since Pr.4-05 must be used for three wire control as shown above. d4, d5 External Faults: Parameter values d4, d5 programs Multi-Function Input Terminals: M1 (Pr. 4-04), M2 (Pr. 4-05), M3 (Pr.
  • Page 98 Chapter 5 Parameters|VFD-S Series D7 Multi-step 1 Mx "Close": Operation available Mx "Close": Operation available D8 Multi-step 2 Mx "Close": Operation available D9 Multi-step 3 These three inputs select the multi-step speeds defined by Pr.5-00 to Pr.5-06 as shown in the following diagram.
  • Page 99 Chapter 5 Parameters|VFD-S Series Frequency Master Frequency Deceleration Acceleration inhibit inhibit Acceleration Deceleration inhibit inhibit Actual operation frequency Time Mx-GND Operation command d12 First or Second Acceleration/Deceleration Time Selection: Parameter value d12 programs a Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-06), M4 (Pr.4-07) or M5 (Pr.4-08) to control selection of First or Second Acceleration/deceleration time.
  • Page 100 Chapter 5 Parameters|VFD-S Series B.B.(N.O.) Mx "Close": Operation available. setting by d13 B.B.(N.C.) Mx "Open":Operation available. setting by d14 NOTE When a Base-Block signal is received, the AC drive will stop all output and the motor will free run. When base block control is deactivated, the AC drive will start its speed search function and synchronize with the motor speed, and then accelerate to Master Frequency.
  • Page 101 Chapter 5 Parameters|VFD-S Series PLC operation Mx "Close": Run PLC. setting by d17 Mx "Close":Pause PLC. setting by d18 NOTE Pr.5-00 to Pr.5-16 define the PLC program. d19 Counter Trigger: Parameter value d19 programs Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4- 06), M4 (Pr.4-07) or M5 (Pr.4-08) to increase the AC drive’s internal counter.
  • Page 102 Chapter 5 Parameters|VFD-S Series d20 Counter Reset: Parameter value d20 programs Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr. 4-05), M3 (Pr.4- 06), M4 (Pr.4-07) or M5 (Pr.4-08) to reset the counter. Reset counter Mx "close": reset counter. d20 reset the counter value.
  • Page 103 Chapter 5 Parameters|VFD-S Series d29 M0: 0: RUN 1: STOP, M1: no function, Direction is controlled by keypad RUN/STOP M0 "Open": Stop, "Close": Run M1 No Function 4-09 Line Start Lockout Factory Setting: d0 Settings Disable Enable When enabled, the AC drive will not start when powered up with run commands applied. To start in Line Start Lockout mode, the AC drive must see the run command go from stop to run after power up.

  • Page 104: Group 5: Multi-Step Speeds And Plc Parameters

    Chapter 5 Parameters|VFD-S Series Group 5: Multi-step Speeds and PLC (Process Logic Control) Parameters 5-00 1st Step Speed Frequency Unit: 0.01 5-01 2nd Step Speed Frequency Unit: 0.01 5-02 3rd Step Speed Frequency Unit: 0.01 5-03 4th Step Speed Frequency Unit: 0.01 5-04 5th Step Speed Frequency...
  • Page 105 Chapter 5 Parameters|VFD-S Series Frequency Master freq.=5Hz Pr.5-03 5-00=10 Hz 4-07=d17 5-09=10 Sec 60Hz 5-01=20 Hz 3-05=d10 5-10=10 Sec 5-02=40 Hz 3-06=d11 5-11=12 Sec Pr.5-04 5-03=60 Hz 5-07=d1 5-12=15 Sec 50Hz 5-04=50 Hz 5-08=d0 5-13=15 Sec 5-05=30 Hz Pr.5-02 5-14=8 Sec 40Hz 5-06=15 Hz 5-15=17 Sec...
  • Page 106 Chapter 5 Parameters|VFD-S Series Example 3 (Pr. 5-07 = d3) Execute one cycle step by step: The example shows how the PLC can perform one cycle at a time, within a complete cycle. Each step will use the acceleration/deceleration times in Pr.1-09 to Pr.1-12. It should be noticed that the time each step spends at its intended frequency is diminished, due to the time spent during acceleration/deceleration.
  • Page 107 Chapter 5 Parameters|VFD-S Series Example 5 (Pr. 5-07 = d1 Execute one cycle of the PLC program): In this example, the PLC program runs continuously. It should be noted that the times of reserve motion may be shorter than expected, due to the acceleration/deceleration times. Frequency Master freq.=5Hz 5-00=10 Hz...
  • Page 108 Chapter 5 Parameters|VFD-S Series Weights 0=Forward 1=Reverse Direction Direction of 1st speed for Pr.5-00 =FWD Direction of 2nd speed for Pr.5-01 =REV Direction of 3rd speed for Pr.5-02 = F Direction of 4th speed for Pr.5-03 = F Direction of 5 th speed for Pr.5-04 = F Direction of 6...

  • Page 109: Group 6: Protection Parameters

    Chapter 5 Parameters|VFD-S Series Group 6: Protection Parameters 6-00 Over-Voltage Stall Prevention Factory Setting: d1 Settings d0 Disable Enable During deceleration, the motor DC bus voltage may exceed its Maximum Allowable Value due to motor regeneration. When this function is enabled, the AC drive will stop decelerating. Maintaining a constant output frequency when it happens.
  • Page 110 Chapter 5 Parameters|VFD-S Series DC bus voltage Over-voltage Band=20V detection level Pr.6-01 time Output Freq. time Over-voltage Stall Prevention 6-02 Unit: 1 Over-Current Stall Prevention Level Settings d20 to d150% Factory Setting: d130 A setting of 100% is equal to the Rated Output Current of the drive. During acceleration and steady-state operation, the AC drive output current may increase abruptly to exceed the value specified by Pr.6-02 due to rapid acceleration or excessive load on the motor.
  • Page 111 Chapter 5 Parameters|VFD-S Series 6-03 Over-Torque Detection Mode (OL2) Factory Setting: d0 Settings Over-Torque detection disabled. Enabled during constant speed operation. After the over-torque is detected, keep running until OL1 or OL occurs. Enabled during constant speed operation. After the over-torque is detected, stop running.
  • Page 112 Chapter 5 Parameters|VFD-S Series Operation time(min) 60Hz or more 50Hz 10Hz Load 20 40 60 80 100 120 140 160 180 200 factor (%) 6-08 Present Fault Record 6-09 Second Most Recent Fault Record 6-10 Third Most Recent Fault Record Factory Setting: d0 Readings No fault...
  • Page 113 Chapter 5 Parameters|VFD-S Series Software protection enable (codE) Reserved CPU failure (cF3.1) CPU failure (cF3.2) CPU failure (cF3.3) CPU failure (cF3.4) CPU failure (cF3.5) CPU failure (cF3.6) CPU failure (cF3.7) Hardware protection failure (HPF.1) Hardware protection failure (HPF.2) Hardware protection failure (HPF.3) Communication time-out (CE10) Reserved Software error (SErr)

  • Page 114: Group 7: Motor Parameters

    Chapter 5 Parameters|VFD-S Series Group 7: Motor Parameters 7-00 Motor Rated Current Unit: 1 Settings d30 to d120% Factory Setting: d85 This parameter will limit the AC drive output current in order to prevent the motor from overheating. Motor No-load Current 7-01 Unit: 1 Settings...

  • Page 115: Group 8: Special Parameters

    Chapter 5 Parameters|VFD-S Series Group 8: Special Parameters 8-00 DC Brake Current Level Unit: 1 Settings d0 to d30% Factory Setting: d0 This parameter determines the level of DC Brake Voltage Level output to the motor during start-up and stopping. When setting DC Brake Voltage, the Maximum Output Voltage (Pr.1- 02) is regarded as 100%.
  • Page 116 Chapter 5 Parameters|VFD-S Series DC Brake during Start-up is used for loads that may move before AC drive starts, such as fans and pumps. These loads may also be moving in the wrong direction. Under such circumstances, DC Brake can be executed to hold the load in position before applying a forward motion.
  • Page 117 Chapter 5 Parameters|VFD-S Series Following a power failure, the AC drive will start its speed search operation, only if the output current is greater than the value determined by Pr.8-07. When the output current is less than that of Pr.8-07, the AC drive output frequency is at a “speed synchronization point”. The drive will start to accelerate or decelerate back to the operating frequency at which it was running prior to the power failure.
  • Page 118 Chapter 5 Parameters|VFD-S Series 8-15 Automatic Voltage Regulation (AVR) Factory Setting: d0 Settings AVR function enabled AVR function disabled AVR function disabled when deceleration AVR function automatically regulates the AC drive output voltage to the Maximum Output Voltage (Pr.1-02). For instance, if Pr.1-02 is set at 200 VAC and the input voltage is at 200V to 264VAC, then the Maximum Output Voltage will automatically be reduced to a maximum of 200 VAC.

  • Page 119: Group 9: Communication Parameters

    Chapter 5 Parameters|VFD-S Series Group 9: Communication Parameters 9-00 Communication Address Settings d1 to d254 Factory Setting: d1 If the AC drive is controlled by RS-485 serial communication, the communication address must be set via this parameter. RS485 Computer 9-01 Transmission Speed Factory Setting: d1 Settings...
  • Page 120 Chapter 5 Parameters|VFD-S Series 9-03 Time-out Detection Factory Setting: d0 Settings Disable d1~d20 1~20 sec If this function is enabled, the timer will start counting once the first valid Modbus communication signal is received after power-up or reset. The timer will reset to 0 after each valid Modbus communication message is received.
  • Page 121 Chapter 5 Parameters|VFD-S Series Code Description: ASCII mode: Each 8-bit data is the combination of two ASCII characters. For example, a 1-byte data: 64 Hex, shown as ‘64’ in ASCII, consists of ‘6’ (36Hex) and ‘4’ (34Hex). Character ‘0’ ‘1’ ‘2’...
  • Page 122 Chapter 5 Parameters|VFD-S Series 2.2 11-bit character frame (For 8-bit character): ( 8.N.2 ) Start Stop Stop 8-bit character 11-bit character frame ( 8.E.1 ) Even Start Stop parity 8-bit character 11-bit character frame ( 8.O.1 ) Start Stop parity 8-bit character 11-bit character frame 3.
  • Page 123 Chapter 5 Parameters|VFD-S Series 3.2 ADR (Communication Address) Valid communication addresses are in the range of 0 to 254. A communication address equal to 0, means broadcast to all AC drives (AMD). In this case, the AMD will not reply any message to the master device.
  • Page 124 Chapter 5 Parameters|VFD-S Series RTU mode: Command message: Response message: Starting data Number of data address (count by byte) Number of data Content of address (count by word) 2102H CRC CHK Low Content of address 2103H CRC CHK High CRC CHK Low CRC CHK High (2) 06H: single write, write single data to register.
  • Page 125 Chapter 5 Parameters|VFD-S Series (3) Command code: 10H, write n word, n<=12 For example, writing 6000(1770H) to Pr 5-00 (address 0500H) and1000(03E8H) to Pr 5- 01 (address 0501H) with slave address 01H. ASCII Mode: Command message: Response message: ‘:’ ‘:’ ADR 1 ‘0’...
  • Page 126 Chapter 5 Parameters|VFD-S Series 3.4 Check sum ASCII mode: LRC (Longitudinal Redundancy Check) is calculated by summing up, module 256, the values of the bytes from ADR1 to last data character then calculating the hexadecimal representation of the 2’s-complement negation of the sum. For example, reading 1 word from address 0401H of the AC drive with address 01H ‘:’...
  • Page 127 Chapter 5 Parameters|VFD-S Series Step 5: Repeat step 3 and 4 until eight shifts have been performed. When this is done, a complete 8-bit byte will have been processed. Step 6: Repeat step 2 to 5 for the next 8-bit byte of the command message. Continue doing this until all bytes have been processed.
  • Page 128 Chapter 5 Parameters|VFD-S Series Content Address Functions Command 2000H Bit 0-1 00: No function 01: Stop 10: Run 11: Jog + Run Bit 2-3 Not used 00: No function 01: FWD Bit 4-5 10: REV 11: Change direction Bit 6-15 Not used 2001H Freq.
  • Page 129 Chapter 5 Parameters|VFD-S Series Content Address Functions 35: Reserved 36: PID error (Pld) 37: Reserved 38: Phase loss (PHL) 2101H Status of AC Drive 00: RUN LED light off, STOP LED light up 01: RUN LED blink, STOP LED light up Bit 0-1 10: RUN LED light up, STOP LED blink 11: RUN LED light up, STOP LED light off...
  • Page 130 Chapter 5 Parameters|VFD-S Series Example of an exception response of command code 06H and exception code 02H: ASCII mode: RTU mode: ‘:’ ADR 1 ‘0’ ADR 0 ‘1’ Exception code CMD1 ‘8’ CRC CHK Low CMD0 ‘6’ CRC CHK High ‘0’...
  • Page 131 Chapter 5 Parameters|VFD-S Series 3.7 Communication program of PC: The following is a simple example of how to write a communication program for Modbus ASCII mode on a PC in C language. #include<stdio.h> #include<dos.h> #include<conio.h> #include<process.h> #define PORT 0x03F8 /* the address of COM1 */ /* the address offset value relative to COM1 */ #define THR 0x0000 #define RDR 0x0000...

  • Page 132: Group A: Pid Control

    Chapter 5 Parameters|VFD-S Series Group A: PID Control A-00 Input Terminal for PID Feedback Factory Setting: d0 Settings Disable Negative PID feedback from external terminal (AVI) 0 to +10V Negative PID feedback from external terminal (ACI) 4 to 20mA Positive PID feedback from external terminal (AVI) 0 to +10V Positive PID feedback from external terminal (ACI) 4 to 20mA Select an input terminal to serve as the PID feedback location.
  • Page 133 Chapter 5 Parameters|VFD-S Series When this parameter is set to gain =1, PID output is Derivative time. At this time, error value – error value of the preceding item= additional respond speed and it is easy to have over compensation situation. A-05 Upper Bound for Integral Control Unit: 1...
  • Page 134 Chapter 5 Parameters|VFD-S Series This parameter selects the operation of the drive upon a loss of PID feedback signal. Sleep Frequency A-10 Unit: 0.1 Settings d0.0 to d400Hz Factory Setting: d0.0 A-11 Wakeup Frequency Unit: 0.1 Settings d0.0 to d400Hz Factory Setting: d0.0 A-12 Sleep Period...
  • Page 135 Chapter 5 Parameters|VFD-S Series the setting frequency of parameters, such as Max. operation frequency, 1 speed and etc., they are still needed to set with actual value. PID Frequency One-Time Integration's Output Target Delay Upper Command Value Bound A-06 Limit A-02 A-03 Frequency...

  • Page 136: Chapter 6 Fault Code Information

    Chapter 6 Fault Code Information The AC motor drive has a comprehensive fault diagnostic system that includes several different alarms and fault messages. Once a fault is detected, the corresponding protective functions will be activated. The following faults are displayed as shown on the AC motor drive digital keypad display. The three most recent faults can be read from the digital keypad or communication.
  • Page 137 Chapter 6 Fault Code Information|VFD-S Series Fault Fault Descriptions Corrective Actions Name 1. Ensure that the ambient temperature falls within the specified temperature range. 2. Make sure that the ventilation holes are not obstructed. Overheating 3. Remove any foreign objects from the heatsinks Heat sink temperature too high and check for possible dirty heat sink fins.
  • Page 138 Chapter 6 Fault Code Information|VFD-S Series Fault Fault Descriptions Corrective Actions Name Short-circuit at motor output: Check for possible poor insulation at the output line. Sudden increase in motor loading: Check for Over-current during possible motor stall. constant speed operation AC motor drive output power is too small: Replace the AC motor drive with the next higher power model.

  • Page 139: Reset

    Chapter 6 Fault Code Information|VFD-S Series Fault Fault Descriptions Corrective Actions Name Software protection failure Return to the factory. Keypad will be locked. Turn the power ON after Password is locked. power OFF to re-enter the correct password. See Pr.0-07 and 0-08. Check parameter setting (Pr.A-00) and AVI/ACI wiring Analog feedback error or...

  • Page 140: Chapter 7 Troubleshooting

    Chapter 7 Troubleshooting 7.1 Over Current (OC) Over-current Over-current Over current during deceleration during acceleration Remove short circuit Check if there is any short circuits and or ground fault grounding between the U, V, W and motor Reduce the load or increase the power Check if load is too large of AC motor drive...

  • Page 141: Ground Fault

    Chapter 7 Troubleshooting |VFD-S Series 7.2 Ground Fault Maybe AC motor drive has Is output circuit(cable or malfunction or misoperation motor) of AC motor drive due to noise. Please Ground fault grounded? contact DELTA. Remove ground fault 7.3 Over Voltage (OV) Over voltage Is voltage within Reduce voltage to...

  • Page 142: Low Voltage (Lv)

    Chapter 7 Troubleshooting |VFD-S Series 7.4 Low Voltage (Lv) Low voltage Is input power correct? Or power cut, Restart after reset including momentary power loss Check if there is any malfunction Change defective component component or disconnection and check connection power supply circuit Make necessary corrections, Check if voltage is...

  • Page 143: Over Heat (Oh)

    Chapter 7 Troubleshooting |VFD-S Series 7.5 Over Heat (OH) AC motor drive overheats Heat sink overheats Check if temperature of heat sink Temperature detection malfunctions. is greater than 90 Please contact DELTA. Is load too large Reduce load If cooling fan functions normally Change cooling fan Remove obstruction...

  • Page 144: Keypad Display Is Abnormal

    Chapter 7 Troubleshooting |VFD-S Series 7.7 Keypad Display is Abnormal Abnormal display or no display Cycle power to AC motor drive Fix connector and eliminate noise Check if all connectors are connect Display normal? correctly and no noise is present AC motor drive works normally AC motor drive has malfunction.

  • Page 145: Motor Cannot Run

    Chapter 7 Troubleshooting |VFD-S Series 7.9 Motor cannot Run Check PU01 Check if non-fuse for normal breaker and magnetic Set them to ON Motor cannot run display contactor are ON Reset after clearing Check if any faults Check if there is any fault and then RUN Check if input occur, such as...

  • Page 146: Motor Speed Cannot Be Changed

    Chapter 7 Troubleshooting |VFD-S Series 7.10 Motor Speed cannot be Changed Motor can run but cannot change speed Check if the setting of the Modify the setting max. frequency is too low If the setting of Check to see if frequency is Pr.5-09 to Pr.5-16 out of range (upper/lower) Modify the setting...

  • Page 147: Motor Stalls During Acceleration

    Chapter 7 Troubleshooting |VFD-S Series 7.11 Motor Stalls during Acceleration Check if acceleration Motor stalls during Increase setting time time is too short acceleration Check if the inertia Use special motor? of the motor and load is too high Thicken or shorten the Reduce load or Check for low voltage wiring between the...

  • Page 148: Electromagnetic/Induction Noise

    Chapter 7 Troubleshooting |VFD-S Series 7.13 Electromagnetic/Induction Noise Many sources of noise surround AC motor drives and penetrate it by radiation or conduction. It may cause malfunctioning of the control circuits and even damage the AC motor drive. Of course, there are solutions to increase the noise tolerance of an AC motor drive.

  • Page 149: Affecting Other Machines

    Chapter 7 Troubleshooting |VFD-S Series Store within a relative humidity range of 0% to 90% and non-condensing environment. Use an air conditioner and/or exsiccator. 7.15 Affecting Other Machines An AC motor drive may affect the operation of other machines due to many reasons. Some solutions are: High Harmonics at Power Side High harmonics at power side during running can be improved by:...

  • Page 150: Chapter 8 Maintenance And Inspections

    Chapter 8 Maintenance and Inspections Modern AC motor drives are based on solid-state electronics technology. Preventive maintenance is required to keep the AC motor drive in its optimal condition, and to ensure a long life. It is recommended to have a qualified technician perform a check-up of the AC motor drive regularly. Daily Inspection: Basic check-up items to detect if there were any abnormalities during operation are: Whether the motors are operating as expected.
  • Page 151 Chapter 8 Maintenance and Inspections|VFD-S Series Periodical Maintenance Ambient environment Maintenance Period Check Items Methods and Criterion Half Daily Year Year Check the ambient temperature, Visual inspection and measurement humidity, vibration and see if with equipment with standard there is any dust, gas, oil or specification water drops Check for any dangerous...
  • Page 152 Chapter 8 Maintenance and Inspections|VFD-S Series Maintenance Period Check Items Methods and Criterion Half Daily Year Year Check partsfor deformity or Visual inspection damaged If there is any color change Visual inspection caused by overheating Check for dust and dirt Visual inspection Main circuit Maintenance...
  • Page 153 Chapter 8 Maintenance and Inspections|VFD-S Series DC capacity of main circuit Maintenance Period Check Items Methods and Criterion Half Daily Year Year If there is any leakage of liquid, change of color, cracks or Visual inspection deformation Measure static capacity when ≥...
  • Page 154 Chapter 8 Maintenance and Inspections|VFD-S Series Printed circuit board and connector of main circuit Maintenance Period Check Items Methods and Criterion Half Daily Year Year If there are any loose screws and Tighten the screws and press the connectors connectors firmly in place. If there is any peculiar smell and Visual inspection and smell color change...
  • Page 155 Chapter 8 Maintenance and Inspections|VFD-S Series This page intentionally left blank Revision August 2008, SE09, SW V2.61...

  • Page 156: Appendix A Specifications

    Appendix A Specifications Voltage Class 115V Class Model Number VFD-_ _ _S Max. Applicable Motor Output (kW) 0.75 Max. Applicable Motor Output (HP) 0.25 Rated Output Capacity (KVA) Rated Output Current (A) Maximum Output Voltage (V) 3-phase Proportional to Twice the Input Voltage Output Frequency (Hz) 1.0~400 Hz Carrier Frequency (kHz)
  • Page 157 Appendix A Specifications|VFD-S Series Voltage Class 460V Class Model Number VFD-_ _ _S Max. Applicable Motor Output (kW) 0.75 Max. Applicable Motor Output (HP) Rated Output Capacity (KVA) Rated Output Current (A) Maximum Output Voltage (V) 3-phase Proportional to Input Voltage Output Frequency (Hz) 1.0~400 Hz Carrier Frequency (kHz)

  • Page 158: Appendix B Accessories

    Appendix B Accessories B.1 All Brake Resistors & Brake Units Used in AC Motor Drives Note: Please only use DELTA resistors and recommended values. Other resistors and values will void Delta’s warranty. Please contact your nearest Delta representative for use of special resistors. The brake unit should be at least 10 cm away from AC motor drive to avoid possible interference.
  • Page 159 Appendix B Accessories|VFD-S Series Please read the wiring information in the user manual of the brake unit thoroughly prior to installation and operation. In applications with brake resistor or brake unit, Pr.6-00 (Over-voltage stall prevention) must be disabled. And Pr.8-15 (AVR function) shall not be used. Definition for Brake Usage ED% Explanation: The definition of the barke usage ED(%) is for assurance of enough time for the brake unit and brake resistor to dissipate away heat generated by braking.

  • Page 160: Dimensions And Weights For Brake Resistors

    Appendix B Accessories|VFD-S Series B.1.1 Dimensions and Weights for Brake resistors (Dimensions are in millimeter) Order P/N: BR080W200, BR080W750, BR300W70, BR300W100, BR300W250, BR300W400, BR400W150, BR400W040 Model no. Max. Weight (g) BR080W200 BR080W750 BR300W70 BR300W100 BR300W250 BR300W400 BR400W150 BR400W040 Revision August 2008, SE09, SW V2.61...

  • Page 161: Emi Filters

    Appendix B Accessories|VFD-S Series B.2 EMI Filters The DELTA VFD-S Series 0.25-3HP, 115V, 230V, 460V AC drive uses DELTA EMI Filter. Use the table below to find the appropriate filter for your DELTA VFD-S drive. Model of AC Motor Drive EMI Filter VFD002S21A/B, VFD004S21A/B, VFD007S21A/B RF007S21AA...
  • Page 162 Appendix B Accessories|VFD-S Series Use the cable with shielding (double shielding is the best). The shielding on both ends of the motor cable should be grounded with the minimum length and maximum contact area. Remove any paint on metal saddle for good ground contact with the plate and shielding. Remove any paint on metal saddle for good ground contact with the plate and shielding.
  • Page 163 Appendix B Accessories|VFD-S Series The length of motor cable When motor is driven by an AC motor drive of PWM type, the motor terminals will experience surge voltages easily due to components conversion of AC motor drive and cable capacitance. When the motor cable is very long (especially for the 460V series), surge voltages may reduce insulation quality.

  • Page 164: Dimensions

    Appendix B Accessories|VFD-S Series If the length is too long, the stray capacitance between cables will increase and may cause leakage current. It will activate the protection of over current, increase leakage current or not insure the correction of current display. The worst case is that AC motor drive may damage.
  • Page 165 Appendix B Accessories|VFD-S Series Order P/N: RF022S21BA (1.97) (3.94) (1.06) (2.91) (9.49) (8.98) (8.98) (0.59) (0.94) (0.22) Revision August 2008, SE09, SW V2.61...
  • Page 166 Appendix B Accessories|VFD-S Series Order P/N: 12DKT1W3S Order P/N: 08TDT1W4S Revision August 2008, SE09, SW V2.61...
  • Page 167 Appendix B Accessories|VFD-S Series Order P/N: 22DRT1W3S Order P/N: 35DRT1W3C B-10 Revision August 2008, SE09, SW V2.61...

  • Page 168: Ac Reactor

    Appendix B Accessories|VFD-S Series B.3 AC Reactor B.3.1 AC Input Reactor Recommended Value 230V, 50/60Hz, 1-Phase Inductance (mH) Fundamental Max. continuous Amps Amps 3~5% impedance 0.75 1.25 460V, 50/60Hz, 3-Phase Inductance (mH) Fundamental Max. continuous Amps Amps 3% impedance 5% impedance 0.75 B.3.2 AC Output Reactor Recommended Value 115V/230V, 50/60Hz, 3-Phase...

  • Page 169: Applications For Ac Reactor

    Appendix B Accessories|VFD-S Series B.3.3 Applications for AC Reactor Connected in input circuit Application 1 Question When more than one AC motor drive is When applying power to one of the AC motor connected to the same mains power, and one drive, the charge current of the capacitors of them is ON during operation.
  • Page 170 Appendix B Accessories|VFD-S Series Application 3 Question Used to improve the input power factor, to When the mains power capacity is too large, reduce harmonics and provide protection line impedance will be small and the charge from AC line disturbances (surges, switching current will be too high.

  • Page 171: Dc Choke Recommended Values

    Appendix B Accessories|VFD-S Series B.4 DC Choke Recommended Values 230V DC Choke Input voltage DC Amps Inductance (mh) MTE CAT. NO 20.00 2RB003 15.00 4RB003 230Vac 50/60Hz 0.75 7.50 9RB003 3-Phase 4.00 12RB003 2.75 18RB003 50.00 25.00 230Vac 50/60Hz 0.75 12.00 1-Phase 8.00...

  • Page 172: Zero Phase Reactor (Rf220X00A

    Appendix B Accessories|VFD-S Series B.5 Zero Phase Reactor (RF220X00A) Dimensions are in millimeter and (inch) Motor Recommended Wire Size Qty. 0.5 - 5.5 0.75 3.5 - 5.5 0.5 - 5.5 0.75 Wiring Method Please wind each wire 4 times around the core. The reactor must be put at inverter output as close as possible.

  • Page 173: Din Rail-Dr01

    Appendix B Accessories|VFD-S Series B.6 Din Rail-DR01 (Dimensions are in millimeter) Models Screw Size VFD002S11A/B M4*22 VFD002S21A/B/E M4*22 VFD002S23A/B M4*22 To install the Din Rail Adapter use the specified screws for different models. Refer to the above VFD004S11A/B M4*12 chart. VFD004S21A/B/E M4*12 To mount the drive on a Din Rail, place the drive...

  • Page 174: Remote Controller

    Appendix B Accessories|VFD-S Series B.7 Remote Controller RC-01 (Dimensions are in millimeter) RC-01 4 16 15 14 13 11 Terminal block (Wiring connections) VFD-S GND M2 M0 AFM GND +10V M1 M3 Block VFD-S Programming Pr. 2-00 set to d01 Pr.

  • Page 175: Conduit Bracket (Bk-S

    Appendix B Accessories|VFD-S Series B.8 Conduit Bracket (BK-S) (Dimensions are in millimeter) 73.0(2.87) B-18 Revision August 2008, SE09, SW V2.61...

  • Page 176: Non-Fuse Circuit Breaker Chart

    Appendix B Accessories|VFD-S Series B.9 Non-fuse Circuit Breaker Chart The fuse should comply with UL248 and the breaker should comply with UL489. The current rating of the breaker shall be within 2~4 times maximum input current rating. (Refer to Appendix A for rated input/output current) 1-phase 3-phase Recommended...
  • Page 177 Appendix B Accessories|VFD-S Series This page intentionally left blank B-20 Revision August 2008, SE09, SW V2.61...

  • Page 178: Appendix C How To Select The Right Ac Motor Drive

    Appendix C How to Select the Right AC Motor Drive The choice of the right AC motor drive for the application is very important and has great influence on its lifetime and the performance. If the capacity of AC motor drive is too large, it cannot offer complete protection to the motor and it may be damaged.

  • Page 179: Capacity Formulas

    Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series C.1 Capacity Formulas 1. When one AC motor drive operates one motor The starting capacity should be less than 1.5x rated capacity of AC motor drive The starting capacity is ⎛...
  • Page 180 Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series 2.3 When it is running continuously The requirement of load capacity should be less than the capacity of the AC motor drive(kVA) The requirement of load capacity is ×...

  • Page 181: General Precautions

    Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series C.2 General Precautions Selection Note When the AC Motor Drive is connected directly to a large-capacity power transformer (600kVA or above) or when phase lead capacitors are switched, excess peak currents may occur in the power input circuit and the rectifier section might be damaged.

  • Page 182: How To Choose A Suitable Motor

    Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series If the stall prevention function is activated, the accel./decel. time is automatically extended to a length that the AC Motor Drive can handle. If the motor needs to decelerate within a certain time with high load inertia that can’t be handled by the AC Motor Drive in the required time, either use an external brake resistor and/or brake unit, depending on the model, (to shorten deceleration time only) or increase the capacity for...
  • Page 183 Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series Motor dynamic balance and rotor endurance should be considered if the operating speed exceeds the rated speed (60Hz) of a standard motor. Motor torque characteristics vary when an AC Motor Drive instead of commercial power supply drives the motor.
  • Page 184 Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series Gear reduction motor: The lubricating method of reduction gearbox and speed range for continuous operation will be different and depending on brand. The lubricating function for operating long time at low speed and for high-speed operation needs to be considered carefully.
  • Page 185 Chapter 8Appendix C How to Select the Right AC Motor Drive |VFD-S Series AC motor drive Motor 60 seconds 60 seconds 60 seconds 0 3 20 0 3 20 Frequency (Hz) Frequency (Hz) Base freq.: 60Hz Base freq.: 60Hz V/F for 220V/60Hz V/F for 220V/60Hz 60 seconds 60 seconds...

This manual is also suitable for:

Vfd s 230v seriesVfd s 460v seriesVfd015s43uVfd007s21bVfd004s21b

Table of Contents
