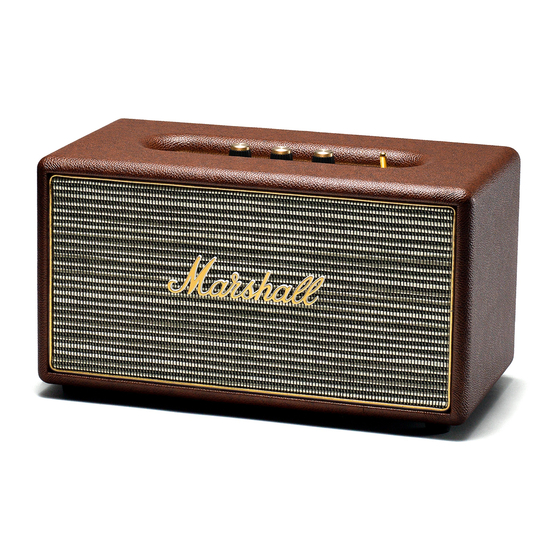

Marshall Amplification STANMORE User Manual

Bluetooth - stereo loudspeaker
Hide thumbs Also See for STANMORE:
Table of Contents

Advertisement

Quick Links

See also: User Manual
STANMORE BLUETOOTH - STEREO LOUDSPEAKER

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STANMORE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marshall Amplification STANMORE

Summary of Contents for Marshall Amplification STANMORE

  • Page 1: User Manual

    STANMORE BLUETOOTH - STEREO LOUDSPEAKER USER MANUAL...

  • Page 2: Important Safety Instructions

    • WARNING – do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts. • WARNING – do not plug a guitar into the Stanmore Bluetooth. • WARNING – do not insert body parts or objects into the bass port for risk of injury.
  • Page 3 COMPLIANCE MARKS FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    005. BOX CONTENTS 007. GENERAL DESCRIPTION 009. PLUGGING IN THE STANMORE BLUETOOTH 010. TURNING THE POWER ON/OFF 011. USING THE STANMORE BLUETOOTH WITH YOUR DEVICES 012. CONNECTING VIA BLUETOOTH (PAIRING) 014. BLUETOOTH AUTO CONNECTION 015. CONNECTING SOUND SOURCE VIA CABLE 018.

  • Page 5: Box Contents

    001. QUICKSTART MANUAL AND SAFETY INFORMATION 002. DOUBLE-ENDED COIL CORD WITH 3.5MM STEREO PLUGS TO CONNECT TO YOUR MUSIC PLAYER 003. POWER CORD 004. MARSHALL STANMORE BLUETOOTH ACTIVE STEREO LOUDSPEAKER NOTE: RCA CABLE NOT INCLUDED WITH THE STANMORE BLUETOOTH MUST PURCHASED SEPARATELY.
  • Page 6 BOX CONTENTS CONTINUED CAUTION: LIFT ACTIVE LOUDSPEAKER FROM BOTTOM. DO NOT LIFT BY PROTECTIVE BAG FOR RISK OF DROPPING THE PRODUCT. 006.

  • Page 7: General Description

    GENERAL DESCRIPTION 001. INPUT FOR 3.5MM STEREO PLUG 002. SOURCE INDICATORS 003. VOLUME KNOB 004. BASS KNOB 005. TREBLE KNOB 006. PAIR BUTTON 007. SOURCE BUTTON 008. POWER SWITCH 007.
  • Page 8 GENERAL DESCRIPTION CONTINUED 009. RCA INPUT (LEFT & RIGHT) 010. BACKPLATE 011. BASS PORT 012. POWER JACK 013. POWER CORD NOTE: DATE CODE AND SERIAL NUM- BER STICKER LOCATED HERE. 012. 013. 012. 013. 008.

  • Page 9: Plugging In The Stanmore Bluetooth

    PLUGGING IN THE STANMORE BLUETOOTH IMPORTANT: BEFORE PROCEEDING TO POINT 001 BELOW, CHECK THE INCLUDED POWER CORD AND PLUG AND YOUR STANMORE BLUETOOTH ACTIVE STEREO LOUDSPEAKER ARE COMPATIBLE WITH YOUR MAINS ELECTRICITY SUPPLY AND ASSOCIATED WALL SOCKET. 001. INSERT THE POWER CORD INTO THE POWER JACK ON THE BACK OF THE SPEAKER.
  • Page 10 PLUGGING IN THE STANMORE BLUETOOTH 004. 003. 005. 006. 010.
  • Page 11 USING THE STANMORE BLUETOOTH WITH YOUR DEVICES THERE ARE LOADS OF WAYS TO CONNECT TO YOUR SPEAKER, WHETHER VIA YOUR PHONE, TURNTABLES, TV OR WIRELESSLY VIA WIRELESS BLUETOOTH®, FEATURING APTX® TECHNOLOGY. BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES: •...

  • Page 12: Connecting Via Bluetooth (Pairing

    CONNECTING VIA BLUETOOTH (PAIRING) FOLLOW THESE STEPS TO PAIR THE STANMORE BLUETOOTH WIRELESSLY TO YOUR BLUETOOTH DEVICE. 001. ENSURE THAT THE STANMORE BLUETOOTH IS POWERED ON. 002. PUSH THE PAIR BUTTON. 003. THE RED BLUETOOTH INDICATOR STARTS TO FLASH RAPIDLY.

  • Page 13: Connecting Via Bluetooth

    CONNECTING VIA BLUETOOTH (PAIRING) 004. ENABLE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE. (SMARTPHONE, TABLET, COMPUTER). 005. ON YOUR DEVICE, SELECT THE STANMORE BLUETOOTH FROM THE BLUETOOTH LIST AND ACCEPT PAIRING. 006. THE BLUETOOTH INDICATOR ON THE SPEAKER TURNS TO A STEADY RED AND THE UNITS ARE NOW CONNECTED.

  • Page 14: Bluetooth Auto Connection

    BLUETOOTH AUTO CONNECTION IF A BLUETOOTH CONNECTED DEVICE IS MOVED OUTSIDE THE RANGE OF THE STANMORE BLUETOOTH (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), IT IS DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE. THE SPEAKER STORES UP TO SIX DEVICES AND TRIES TO CONNECT TO THE LAST CONNECTED BLUETOOTH DEVICE FIRST.

  • Page 15: Connecting Sound Source Via Cable

    CONNECTING SOUND SOURCE VIA CABLE THERE ARE TWO WAYS TO CONNECT TO YOUR STANMORE BLUETOOTH THE OLD FASHIONED WAY, USING A CABLE. USE ONE OF THE TWO AUDIO INPUTS AVAILABLE: INPUT 1 - 3.5MM STEREO PLUG, INPUT 2 - RCA ANALOGUE INPUT.
  • Page 16 INPUT 1 - 3.5MM STEREO PLUG 001. ENSURE THAT THE STANMORE BLUETOOTH IS TURNED OFF. 002. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT LABELLED INPUT 1 ON THE SPEAKER. 003. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER AND TURN ON THE SPEAKER.
  • Page 17 INPUT 2 - RCA PORTS 001. ENSURE THAT THE STANMORE BLUETOOTH IS TURNED OFF. 002. CONNECT THE CORD WITH THE RCA PLUGS TO THE RCA INPUTS (LEFT AND RIGHT) ON THE BACK OF THE SPEAKER. 003. CONNECT THE OTHER END OF THE CORD TO THE RCA OUTPUT ON YOUR SOUND SOURCE AND TURN ON THE SPEAKER.

  • Page 18: Choosing Your Source

    CHOOSING YOUR SOURCE THE INPUT SOURCE THAT IS CURRENTLY SELECTED IS SHOWN BY A LIT INDICATOR. TO SELECT A DIFFERENT SOUND SOURCE: 001. PUSH THE SOURCE BUTTON TO CHOOSE YOUR SOURCE AND/OR TO SWITCH BETWEEN CONNECTED SOURCES. 002. A LIT INDICATOR SHOWS WHICH SOURCE YOU HAVE SELECTED. •...

  • Page 19: Adjusting The Sound

    ADJUSTING THE VOLUME/BASS/TREBLE SOUND THE STANMORE BLUETOOTH HAS THREE KNOBS FOR ADJUSTING THE SOUND: 001. VOLUME KNOB 002. BASS KNOB 003. TREBLE KNOB 019.

  • Page 20: Technical Information

    TECHNICAL INFORMATION SOUND SPECIFICATION • ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM • DIGITAL CLASS D AMPLIFIER: 2X20W + 1X40W • ¾” DOME TWEETERS: 2X • 5 ¼” WOOFER: 1X • BASS AND TREBLE TONE CONTROLS • FREQUENCY RESPONSE: 45 - 22 000Hz +-3db •...

  • Page 21: Trouble Shooting

    TROUBLE SHOOTING PROBLEM CAUSE ACTION THE STANMORE Ensure that the STANMORE The speaker is not connected BLUETOOTH is plugged into BLUETOOTH DOES to AC mains. a working AC wall socket, NOT TURN ON. see page THERE IS NO Change the selected sound...
  • Page 22 Try another sound file (mp3) or quality. music player. Volume is set too high on the Lower the volume on the STANMORE BLUETOOTH. STANMORE BLUETOOTH, see page Too much bass/treble boost on Lower the bass/treble on the the speaker. STANMORE BLUETOOTH, see...
  • Page 23 IN THE FOLLOWING CASES: • WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVING/TRANSMITTING SYSTEM FOR THE BLUETOOTH DEVICE OR THE STANMORE BLUETOOTH. • ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS, CORNERS, ETC. • EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME FREQUENCY BAND, FOR EXAMPLE MEDICAL EQUIPMENT, MICROWAVE OVENS AND WIRELESS NETWORKS.
  • Page 24 WWW.MARSHALLHEADPHONES.COM 024.
