Variobot variAnt Instructions Manual page 9

2) Mounting the Motors

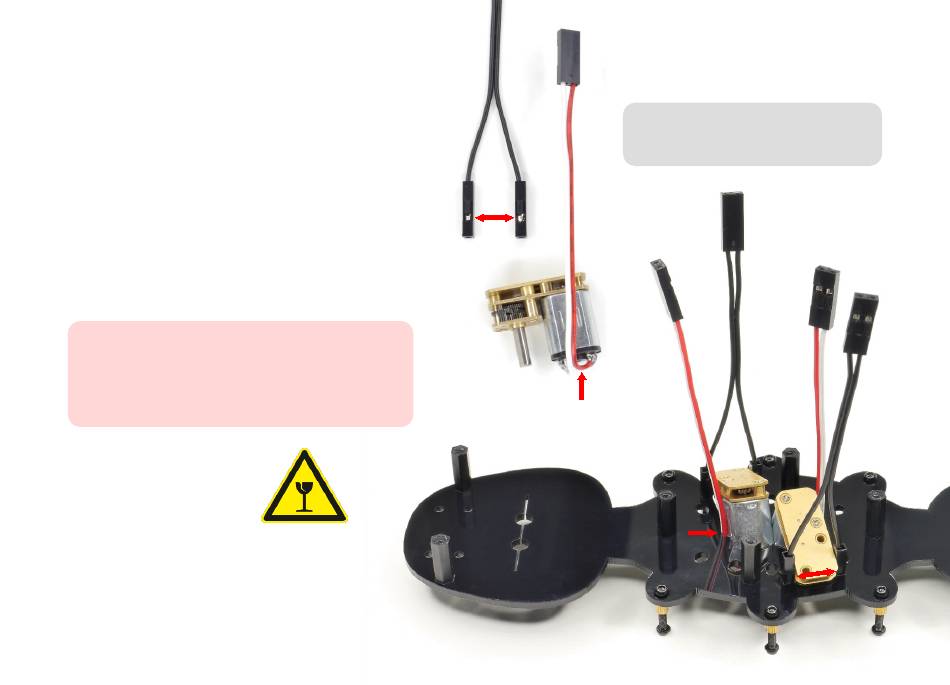

Bend the connectors of each of the black twin
cables apart. Assure the indentations (1) are
facing in the same direction.
Push them through the small square openings in
the acrylic plate at the height of the indentations
(2).
After that, bend the motor cables by 180° so that
they lie flat against the side of the motor housing.
Press the motors' red cables right next to
the black caps of the motor housings (3).
This will prevent them from bumping into
the gears while using variAnt.
Now, ensuring you use little
pressure, slant the motors
and set them into the
corresponding openings.
The motors' cables should run through
the small openings (4) next to the motors
and the black cable connectors should now
be stabilized.
2 black twin cables
2 gear motors with cables
1
3
4
2
