4) Mounting the Boards
Plug the connectors of the split 10-pin flat ribbon
cable onto the back pin header of the control board
(brown » +5 V, . . . , black » GND).
Bend the cable 180°, so that it runs under the
control board. Then use the 4 short screws to
mount the board onto the brass spacers.
1 breadboard
1 control board
4 short screws
Nr. 5
1
2
Now place the breadboard into the 2
large openings on variAnt's head,
just far enough that it sits firmly.

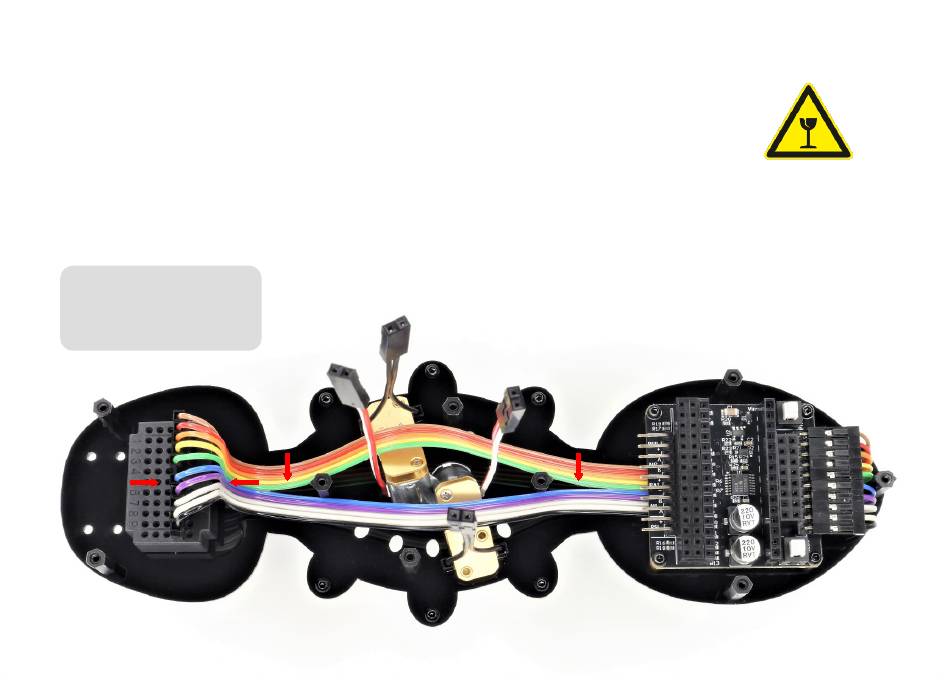

Push the cable's 10 pins into the 4th row of the
breadboard. Leave position number 5 vacant.
To finish the job, bend down the cable on the left
and on the right of the 2 spacers in the middle (1),
pressing them close to the breadboard (2).
