Variobot variAnt Instructions Manual page 13

6) Connecting the Short Cables

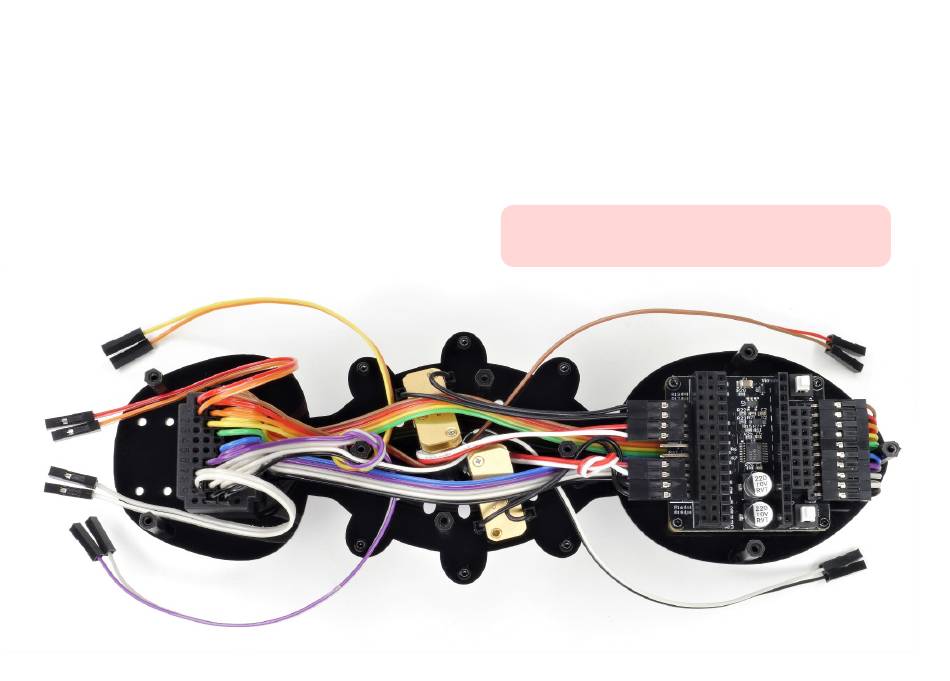

Insert the orange-red and white-gray cables (each
10 cm long) directly in front of the cables of the
same color on the breadboard. Then, bend them
backward and guide them to the front between the
breadboard and the spacers.
Now, plug the two black twin cables into the outer
contacts RSR and RSL on the front pin header of the
control board.
Knot the left motor cable. Then, connect both
motor cables to the contacts MR and ML on the
control board, ensuring that the red cable is
positioned on the right side for each connection.
Make sure the cables located near the motors
do not go too far above the black spacers.
