Variobot variAnt Instructions Manual page 8

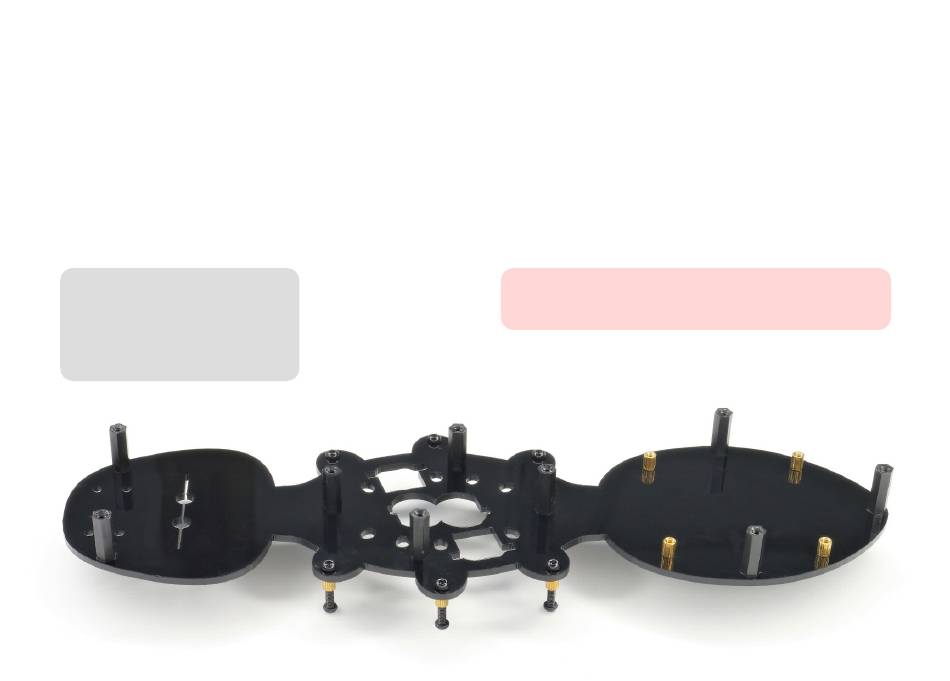

1) Mounting the Spacers
Mount the 9 black hexagonal spacers with the 9
long screws (8 mm) and an Allen key at the
indicated positions on the top side of the acrylic
plate, which is smooth.
Then, on the same side of the plate, mount 4 of the
short brass spacers with 4 of the 4 mm screws.
9 long spacers (plastic)
15 long screws (8 mm)
10 short spacers (brass)
10 short screws (4 mm)
Now attach 6 brass spacers with 4 mm screws onto
the bottom of the plate where variAnt's legs will be
mounted.
Once you've done that, screw a long 8 mm screw
into each of the spacers. Use the Allen Key to
tighten them from the top and the bottom.
The temporary feet will make mounting the
motors and gears easier.
