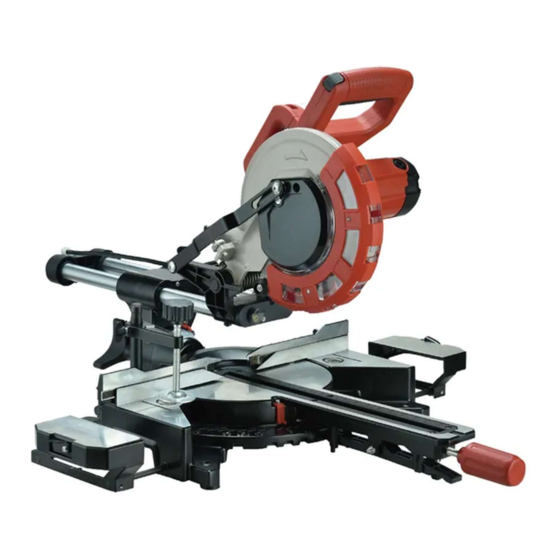

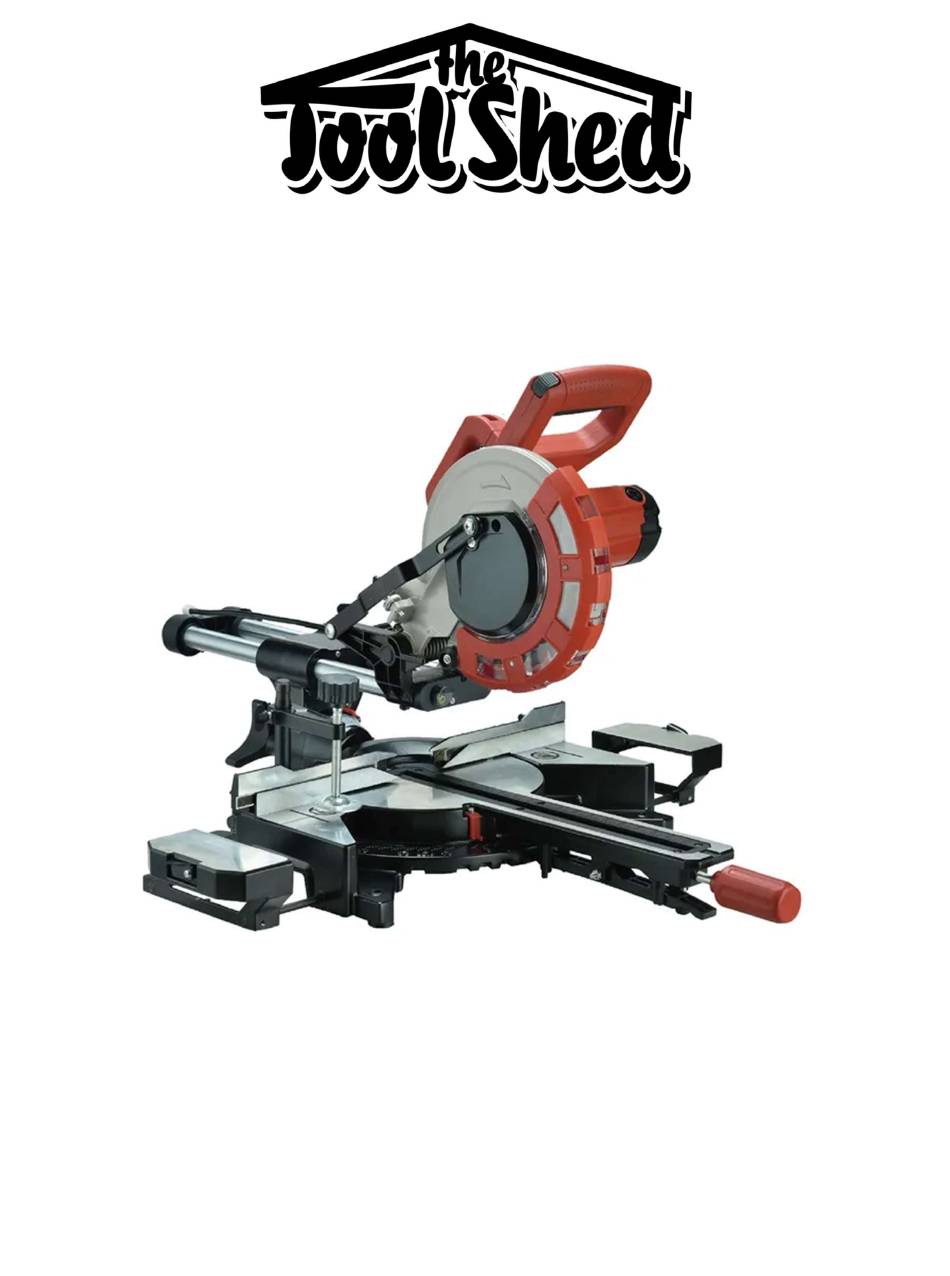

- Page 1 MITRE SAW COMPOUND SLIDING 210mm TSMS07 www.thetoolshed.co.nz...
-
Page 2: Product Details
PRODUCT ToolShed Mitre Saw Compound Sliding 210mm 1700W MODEL NO. TSMS07 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 3: Table Of Contents
OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Identification ............................5 Safety Guidelines ............................ 6 Figures ..............................11 Attachment & Operation ........................15 Transportation ............................19 Maintenance ............................20 Parts List ............................... 21 www.thetoolshed.co.nz... -
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS Motor 230V | 50Hz Power 1700W Operating Mode 2000W No Load Speed 4700RPM Carbide Saw Blade Ø210 x 25.4 x 2.4mm Number of Teeth Maximum Tooth Width of Saw Blade Mitre Range -45° / 0° / +45° Bevel Cut Range 0°... -
Page 5: Identification
OPERATION MANUAL IDENTIFICATION Safety Switch Sliding Rails Bevel Adjustment Handle Back Fence Handle / Power Switch Motor Blade Guard Extension Table Adjustment Handle www.thetoolshed.co.nz... -
Page 6: Safety Guidelines
OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. - Page 7 OPERATION MANUAL ELECTRICAL SAFETY Do NOT use the power tool or machinery in raining conditions or wet areas where the power tool or machinery could get wet. Water in the power tool or machinery can lead to electric shock. Only use the power tool or machinery when the plug correctly matches the power outlet. Modifying plugs greatly increases the risk of electric shock.
- Page 8 OPERATION MANUAL ADDITIONAL SAFETY FOR MITRE SAWS Mitre saws are intended to cut wood or wood-like products and they cannot be used with abrasive cut-off wheels for cutting ferrous material such as bars, rods, studs, etc. Abrasive dust causes moving parts such as the lower guard to jam. Sparks from abrasive cutting will burn the lower guard, the kerf insert, and other plastic parts.
- Page 9 OPERATION MANUAL tip if not securely supported. If the cut-off piece or workpiece tips, it can lift the lower guard or be thrown by the spinning blade. Do not use another person as a substitute for a table extension or as additional support. Unstable support for the workpiece can cause the blade to bind or the workpiece to shift during the cutting operation pulling you and the helper into the spinning blade.
- Page 10 OPERATION MANUAL Avoid overheating of the saw teeth. If teeth overheat, stop the saw, and do not use again until it has cooled down. When sawing plastic, use the appropriate blade and avoid melting the plastic. Protect yourself and your environment from accidents using suitable precautionary measures. Do not look directly into the laser beam with unprotected eyes.
- Page 11 OPERATION MANUAL www.thetoolshed.co.nz...
- Page 12 OPERATION MANUAL www.thetoolshed.co.nz...
- Page 13 OPERATION MANUAL www.thetoolshed.co.nz...
- Page 14 OPERATION MANUAL www.thetoolshed.co.nz...
- Page 15 OPERATION MANUAL BEFORE STARTING THE EQUIPMENT Open the packaging and remove the saw carefully. Remove the packaging material as well as the packaging and transport bracing (if available). Check the tool and accessory parts for transport damage. If possible, store the packaging until the warranty period has expired. The equipment must be set up where it can stand securely.
-
Page 16: Attachment & Operation
OPERATION MANUAL ATTACHMENT & OPERATION Attaching the Crosscut, Drag, and Mitre Saw (fig.1/2/4/5) 1. In order to adjust the rotary table (14), loosen the handle (11) approximately 2 turns and pull up the latched position lever (35) with your index finger. 2. - Page 17 OPERATION MANUAL 6. Use the handle (1) to push back the machine head (4) and fix it in this position if required (dependent on the cutting width). 7. Place the piece of wood to be cut at the stop rail (16) and on the turntable (14). 8.
- Page 18 OPERATION MANUAL Precision Adjustment of the Stop for Mitre Cut 45° (fig.1/2/5/9/10) 1. Lower the machine head (4) and secure it using the locking bolt (23). Fix the rotary table (14) in the 0° position. ATTENTION: For mitre cuts (inclined saw head), the left side of the moveable stop rails (16a) must be fixed in the outer position.
- Page 19 OPERATION MANUAL Mitre Cut 0° - 45° and Turntable 0° - 45° (fig.2/4/12) The crosscut, drag, and mitre saw can be used to make mitre cuts to the left of 0° - 45° in relation to the work face and, at the same time, 0° - 45° to the left or 0° - 45° to the right in relation to the stop rail (double mitre cut).
- Page 20 OPERATION MANUAL Changing the Saw Blade (fig.1/2/14-17) WARNING: Unplug the mitre saw from all power sources. WARNING: Wear safety gloves when changing the saw blade or you could risk injury. 1. Swing the machine head (4) upwards and lock with the locking bolt (23). 2.
-
Page 21: Maintenance
OPERATION MANUAL MAINTENANCE WARNING: Prior to any adjustment, maintenance, or service work, disconnect the mains power plug. General Maintenance Measures Wipe chips and dust off the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly. -
Page 22: Parts List
OPERATION MANUAL PARTS LIST www.thetoolshed.co.nz... - Page 23 OPERATION MANUAL www.thetoolshed.co.nz...
