Tool Shed TSMS11 Manual

Mitre saw compound sliding 255mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MITRE SAW COMPOUND
SLIDING 255mm
TSMS11
www.thetoolshed.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSMS11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tool Shed TSMS11

Summary of Contents for Tool Shed TSMS11

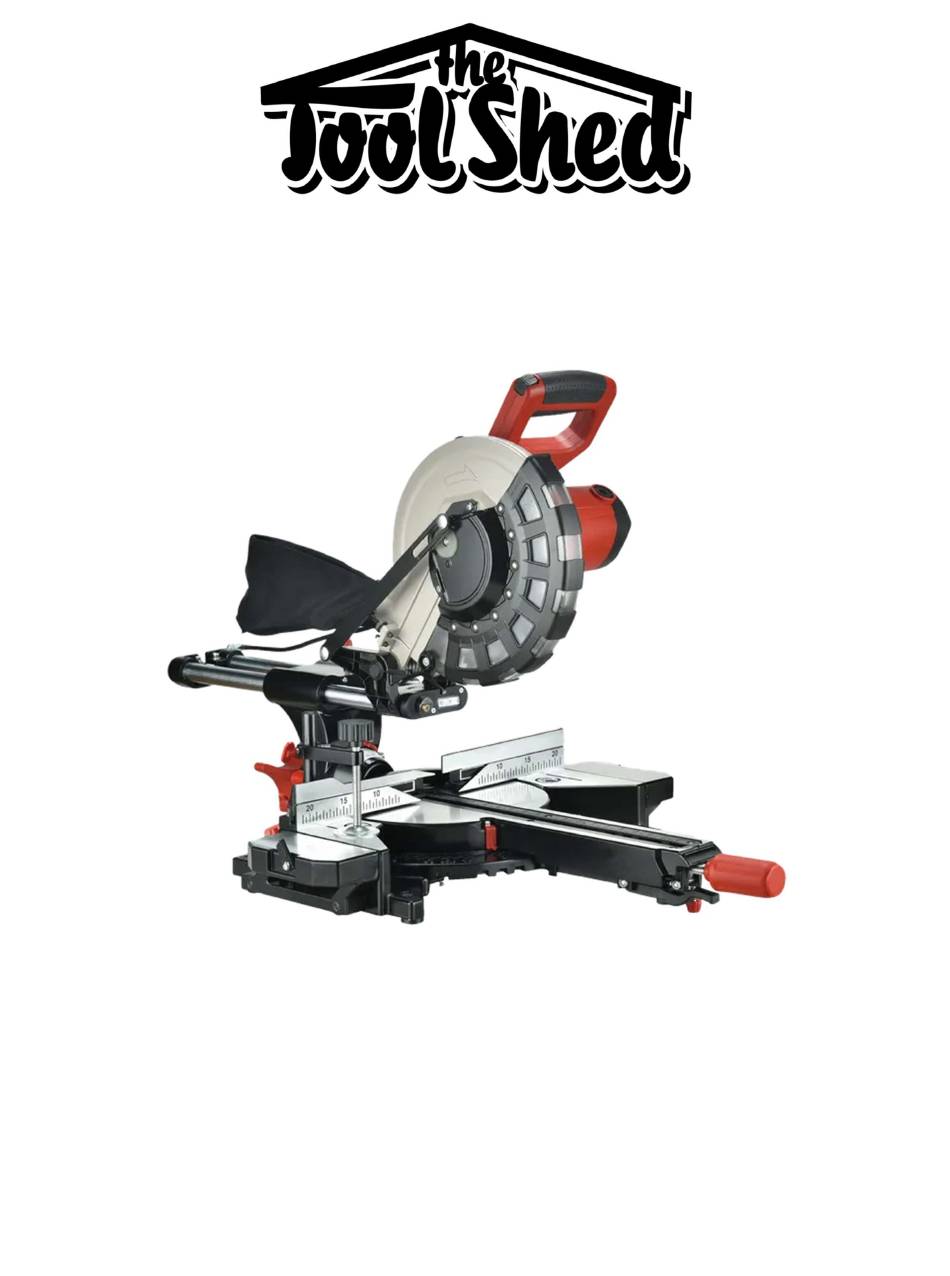

  • Page 1 MITRE SAW COMPOUND SLIDING 255mm TSMS11 www.thetoolshed.co.nz...

  • Page 2: Product Details

    PRODUCT ToolShed Mitre Saw Compound Sliding 255mm MODEL NO. TSMS11 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice.

  • Page 3: Table Of Contents

    OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Identification ............................5 Safety Information ..........................6 Figures ..............................11 Before Starting ............................. 16 Attachment & Operation ........................16 Transport .............................. 20 Maintenance ............................21 Parts List ...............................

  • Page 4: Specifications

    OPERATION MANUAL SPECIFICATIONS Motor 230V / 50Hz Power 2000W Idle Speed 4500min-1 Carbide Saw Blade Ø 255 x Ø 25.4 x 2.8mm Number of Teeth Mitre Range -45° / 0° / +45° Bevel Cut Range 0° - 45° to the left Cutting Capacity 0°...

  • Page 5: Identification

    OPERATION MANUAL IDENTIFICATION Safety switch Dust bag Sliding rails Bevel adjustment handle Back fence Handle / Power switch Motor Blade guard Extension tables Adjustment handle www.thetoolshed.co.nz...

  • Page 6: Safety Information

    OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean.
  • Page 7 OPERATION MANUAL ELECTRICAL SAFETY Do NOT use the power tool or machinery in raining conditions or wet areas where the power tool or machinery could get wet. Water in the power tool or machinery can lead to electric shock. Only use the power tool or machinery when the plug correctly matches the power outlet. Modifying plugs greatly increases the risk of electric shock.
  • Page 8 OPERATION MANUAL ADDITIONAL SAFETY FOR MITRE SAWS Mitre saws are intended to cut wood or wood-like products and they cannot be used with abrasive cut-off wheels for cutting ferrous material such as bars, rods, studs, etc. Abrasive dust causes moving parts such as the lower guard to jam. Sparks from abrasive cutting will burn the lower guard, the kerf insert, and other plastic parts.
  • Page 9 OPERATION MANUAL tip if not securely supported. If the cut-off piece or workpiece tips, it can lift the lower guard or be thrown by the spinning blade. Do not use another person as a substitute for a table extension or as additional support. Unstable support for the workpiece can cause the blade to bind or the workpiece to shift during the cutting operation pulling you and the helper into the spinning blade.
  • Page 10 OPERATION MANUAL Avoid overheating of the saw teeth. If teeth overheat, stop the saw, and do not use again until it has cooled down. When sawing plastic, use the appropriate blade and avoid melting the plastic. INTENDED USE The crosscut, drag, and mitre saw is designed to crosscut wood and plastic respective of the machine’s size.

  • Page 11: Figures

    OPERATION MANUAL www.thetoolshed.co.nz...
  • Page 12 OPERATION MANUAL www.thetoolshed.co.nz...
  • Page 13 OPERATION MANUAL www.thetoolshed.co.nz...
  • Page 14 OPERATION MANUAL www.thetoolshed.co.nz...
  • Page 15 OPERATION MANUAL LAYOUT – Fig. 1-19 Handle ON/OFF switch Lock switch Machine head Moving saw blade guard Saw blade Clamping device Workpiece support Table insert Set screw for rotary table Pointer Scale Rotary table Fixed saw table Stop rail 16a Moveable stop rail 16b Set screw Sawdust bag Scale...

  • Page 16: Before Starting

    OPERATION MANUAL BEFORE STARTING THE EQUIPMENT Open the packaging and remove the saw carefully. Remove the packaging material as well as the packaging and transport bracing (if available). Check the tool and accessory parts for transport damage. If possible, store the packaging until the warranty period has expired. The equipment must be set up where it can stand securely, i.e.
  • Page 17 OPERATION MANUAL Crosscut 90° and Turntable 0° (Fig. 1, 2, 7) Attention: For 90° crosscuts, the moveable stop rail (16a) must be fixed in the inner position. Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) inwards.
  • Page 18 OPERATION MANUAL Precision Adjustment of the Stop for Mitre Cut 45° (Fig. 1, 2, 5, 9, 10) No stop angle included. Lower the machine head (4) and secure it using the locking bolt (21). Fix the rotary table (13) in the 0° position. Attention: For mitre cuts (inclined saw head), the moveable stop rails (16a) must be fixed in the outer position.
  • Page 19 OPERATION MANUAL Mitre Cut 0° -45° and Turntable 0° -45° (Fig. 2, 4, 12) The mitre saw can be used to make mitre cuts to the left of 0° -45° to the left or 0° -45° to the right in relation to stop the rail (double mitre cut). Attention: For mitre cuts (inclined saw head), the moveable stop rails (16a) must be fixed in the outer position.

  • Page 20: Transport

    OPERATION MANUAL Changing the Saw Blade (Fig. 1, 2, 14-17) REMOVE THE POWER PLUG Important: Wear safety gloves when changing the saw blade. RISK OF INJURY. Swing the machine head (4) upwards and lock with the locking bolt (21). Loosen the retaining screw (5a) of the cover using a Philips screwdriver. WARNING: Do not fully remove this screw.

  • Page 21: Maintenance

    OPERATION MANUAL MAINTENANCE WARNING: Prior to any adjustment, maintenance, or service work, disconnect the mains power plug. General Maintenance Measures Wipe chips and dust off the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly.

  • Page 22: Parts List

    OPERATION MANUAL PARTS LIST www.thetoolshed.co.nz...
  • Page 23 OPERATION MANUAL www.thetoolshed.co.nz...
