Summary of Contents for Tool Shed TSPCRS

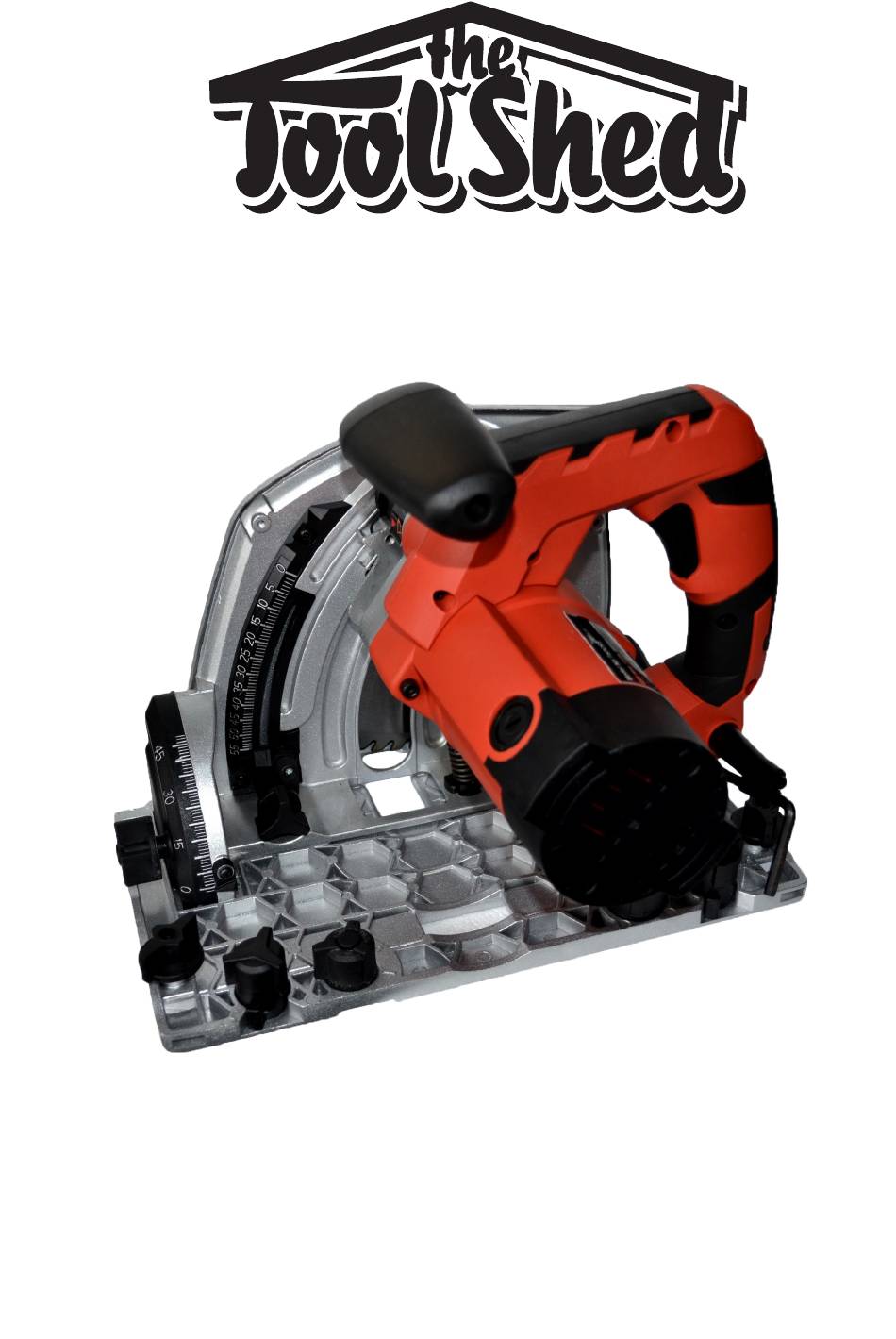

- Page 1 PLUNGE CUT RAIL SAW TSPCRS www.thetoolshed.co.nz...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Details Specifications Product Identification Safety Information Operation Cleaning & Maintenance... -
Page 3: Product Details
PRODUCT DETAILS Product Model ToolShed Plunge Cut Rail Circular Saw Product Code TSPCRS Distributed By Note: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 4: Specifications
SPECIFICATIONS Power 1200W No Load Speed 2000 - 6000/min Mitre Settings 0° - 45° Blade Size 165mm Max. Cutting Depth at 90° 54mm Max. Cutting Depth at 45° 38mm (on rail) / 42mm (without rail) Weight Service Have your tools and machinery serviced at The ToolShed with ToolShed replacement parts. -
Page 5: Product Identification

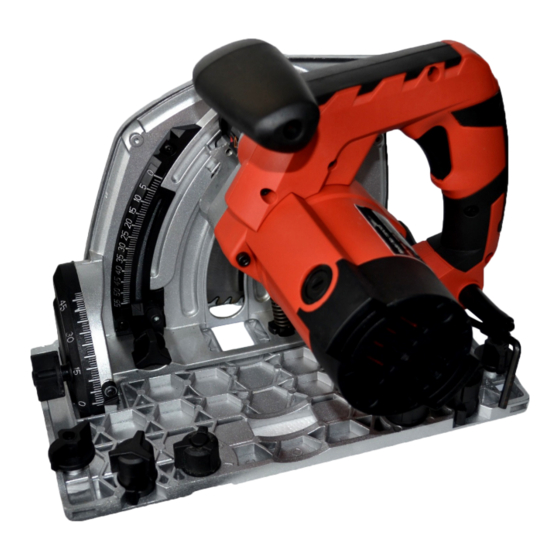

PRODUCT IDENTIFICATION 1. Handle 5. Guide Adjustment Knobs 2. ON/OFF Trigger 6. Bevel Adjustment 3. Motor 7. Gauges 4. Base Plate 8. Blade Guard / Housing... -
Page 6: Safety Information
SAFETY GUIDELINES of risk away from moving parts or they WARNING could be caught. - Always remain alert and DO NOT READ ALL SAFETY WARNINGS & operate the power tool or machinery INSTRUCTIONS. Failure to follow under the influence of any substances instructions and warnings could lead to (drugs, medications, alcohol). - Page 7 SAFETY GUIDELINES Electrical Safety Power Tool & Machinery Use and Care - DO NOT use the power tool or machinery in raining conditions or - Use the correct tool for the job. Forcing wet areas where the power tool or a tool to do a job it was not designed for machinery could get wet.
- Page 8 SAFETY GUIDELINES Specific Safety or it’s own cord. Contact with a “live” wire will also make exposed metal parts - Keep hands away from cutting area of the power tool “live” and could give the and the blade. Keep your second operator and electric shock.
- Page 9 SAFETY GUIDELINES to climb out of the kerf and jump back Large panels tend to sag under their own towards the operator. weight. Supports must be placed under the panel on both sides, near the line of cut Kickback is the result of saw misuse and/ and near the edge of the panel.
- Page 10 SAFETY GUIDELINES protruding blade may cut objects that can other part, in all angles and depths of cut. - Check the operation and condition of cause kickback. - Always hold the tool firmly with both the guard return spring. If the guard hands.
- Page 11 19. Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. Guard may operate sluggishly due to damaged parts, gummy deposits, SAFETY GUIDELINES or a build-up of debris. 20.
-
Page 12: Operation
OPERATION Set Cutting Depth NOTE The cutting depth can be set between 0-54mm: The graduated values on the scale (13) Loosen the cutting depth limit stop apply for straight cuts (90°). The guide knob (11) and slide it to the desired cutting rail track compensation (12) must be depth according to the graduated scale (13) tilted up when using the plunge saw... - Page 13 OPERATION Determine Cutting Line switch lock and the ON/OFF switch and push the motor down. Guide the saw Two cutting lines are marked on the base forward to cut. plate of the plunge saw. Alight position A (0 mark on base Mitre Cuts (Up to 48°) plate) at the front of the base plate with First, loosen both rotary knobs (10)
- Page 14 OPERATION Marked Cutting Change the Saw Blade Turn the selector switch to the WARNING marked cut function. Press the switch lock and push the Before any maintenance work, motor down. The casing stops in a 2mm always switch off the plunge saw and cutting depth position.
- Page 15 OPERATION Guide Rails & Clamps Place the plunge saw on the guide (Sold Separately) rail. The base plate has a groove which exactly fits into the guide ridge of the rail. The guide rails allows precise, clean, and straight cuts, mitre cuts, and fitting. The rails also protect the workpiece surface from damages.
- Page 16 OPERATION Fine Adjustment of Plunge Determine Cutting Line Saw Play on Rail Guide When using the saw with a guide rail, The play of the base plate on the guide rail always align position A (0 mark on base can be reduced to minimum with the fine plate) at the front of the base plate with adjustment screws.
- Page 17 OPERATION Plunge Cut with Guide Rail Set the selector switch to the marked cut function. Set the plunge saw speed Hold the plunge saw with both to 6. hands at the handles. Place the plunge saw at the rear end Switch the plunge saw on and wait of the guide rail.
- Page 18 OPERATION angle scale. Alternatively, the mitre angle limit stop can be installed on the guide rail in such a way that the pre-punched angle settings 0°, 15°, 30°. and 45° can be used. Place the mitre limit stop at the straight side of the workpiece.
- Page 19 OPERATION Parallel Limit Stop and/or Table Expansion (Optional) For cut-off widths up to 180mm a parallel limit stop can be used. The parallel limit stop can also be used as a table expansion. Slide the parallel limit stop into the respective guides at the front and rear of the base plate.
-
Page 20: Cleaning & Maintenance
CLEANING & MAINTENANCE Fine Adjustment of Cutting WARNING Precision The cutting precision for straight cuts (90°) Disconnect from mains power before is factory set. Use a 3mm hex key to adjust carrying out any maintenance work the cutting precision at the bottom of the on the plunge saw. - Page 21 PARTS DIAGRAM...
