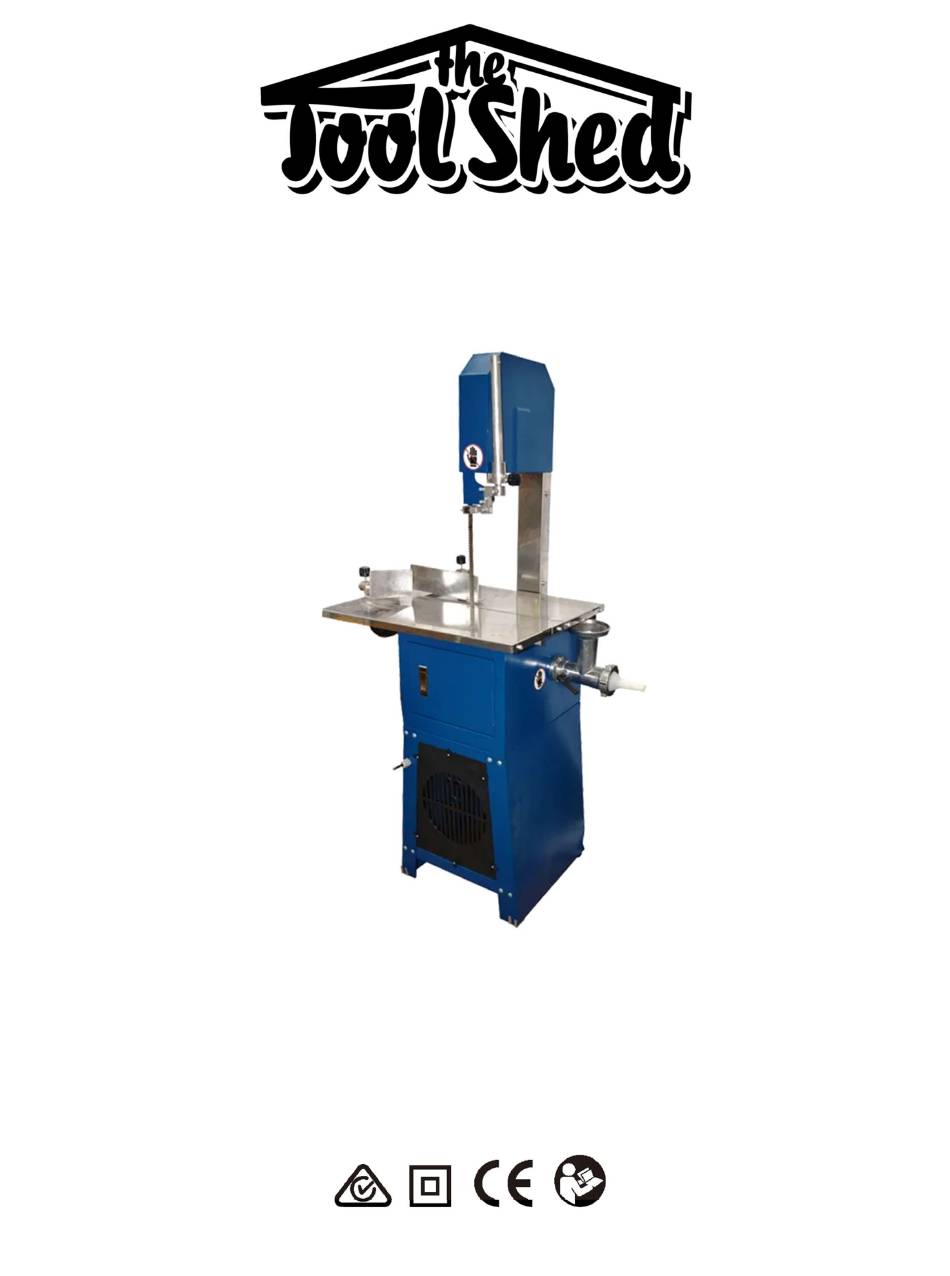

- Page 1 MEAT CUTTING BANDSAW TSBM www.thetoolshed.co.nz...
-
Page 2: Product Details
OPERATION MANUAL PRODUCT DETAILS PRODUCT Meat Cutting Bandsaw MODEL NO. TSBM ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 3: Table Of Contents
OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Identification ............................4 Important Information ........................... 5 General Safety Guidelines ........................5 Service ............................. 6 Additional Safety ........................... 7 Before Each Use ..........................7 Assembly .............................. -
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS Max. cutting width 245mm Max. cutting depth 240mm Wheel diameter 250mm Band length 2085mm Motor size 550w Voltage 230v Size 1500mm H x 610mm W x 550mm D Table size 600mm W x 465mm D Table height 865mm Net weight 52kg... -
Page 5: Important Information
OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. -
Page 6: Service
OPERATION MANUAL Avoid body contact with grounded or earthed surfaces. Surfaces such as radiators, ranges, pipes, and refrigerators can increase risk of electric shock due to your body being earthed or grounded. MACHINERY USE AND CARE Use the correct tool for the job. Forcing a tool to do a job it was not designed for increases the risk of accident or injury. -
Page 7: Additional Safety
OPERATION MANUAL ADDITIONAL SAFETY FOR MEAT CUTTING BAND SAW Safety is a combination of common sense, staying alert and knowing how your bandsaw works. Read and understand the following safety rules before operating. 1. Adjust the upper guide to just clear the workpiece. 2. -
Page 8: Assembly
OPERATION MANUAL ASSEMBLY ASSEMBLING STAND All parts of the stand, except for the rubber feet, get assembled using carriage bolts, washers, and hex nuts. Attach the stand sides (Fig.4) (A) to the stand top (B). Make sure the switch opening in the stand side is on the same side as the V-belt opening in the stand top. - Page 9 OPERATION MANUAL INSTALLING BANDSAW ON STAND Place the bandsaw base (Fig.8) (A) onto the top of the stand (B) and line up the stand and base corner mounting holes. From the inside of the stand, fix the bandsaw base to the stand using hex bolts.
- Page 10 OPERATION MANUAL ADJUSTING SLIDING TABLE Adjusting the sliding table may take some trial and error. It is important that the table slides correctly and that the blade does not make contact with the table. The position of the adjustable table rollers (Fig.12) (A) can be adjusted inwards or outwards.
-
Page 11: Adjustments
OPERATION MANUAL ADJUSTMENTS ADJUSTING BLADE GUARD The blade guard (Fig.15) (A) protects the operator from accidental contact with the blade. The blade guard lock knob (B) sets the height of the blade guard and blade guides (C). Always keep the blade guide assembly 1” away from the top of your piece of meat. - Page 12 OPERATION MANUAL ADJUSTING BLADE TENSION To prevent the blade from falling off the wheel during operation, the blade must be properly tensioned. DISCONNECT POWER CORD FROM POWER SOURCE BEFORE TENSIONNING BLADE. To tension blade, remove the upper wheel cover and then turn the tension hex nut (Fig.18) (A) clockwise to increase blade tension or counterclockwise to decrease blade tension.
-
Page 13: Operation
OPERATION MANUAL OPERATION TURNING MEAT BANDSAW ON/OFF Once all assembly and adjustment steps are completed, the meat bandsaw is ready for use. Connect the power cord to a power source. Make sure the power source matches the specifications indicated on the machine nameplate. To turn the machine on, place the switch to “On” and to turn it off, place the switch to “Off”. -
Page 14: Parts List
OPERATION MANUAL PARTS LIST www.thetoolshed.co.nz... - Page 15 OPERATION MANUAL www.thetoolshed.co.nz...
