ITM. / ART. 1760449
OWNER'S MANUAL

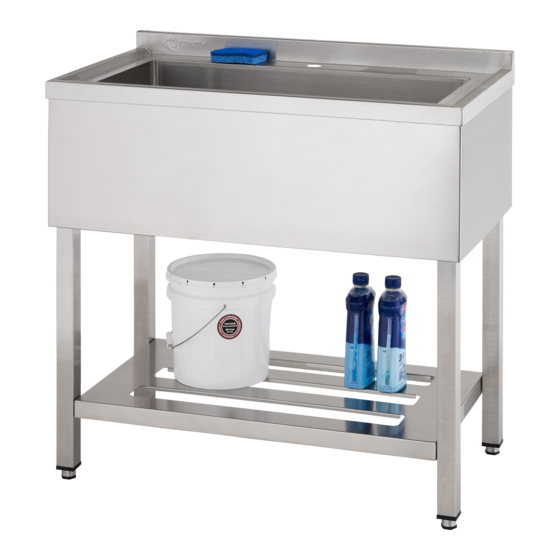

TRINITY STAINLESS STEEL UTILITY SINK
Model # CTHA-0326
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRINITY CTHA-0326 and is the answer not in the manual?

Questions and answers

Related Manuals for Bilt TRINITY CTHA-0326

Summary of Contents for Bilt TRINITY CTHA-0326

  • Page 1 ITM. / ART. 1760449 OWNER’S MANUAL TRINITY STAINLESS STEEL UTILITY SINK Model # CTHA-0326 Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...

  • Page 2: Parts List

    PARTS LIST Your TRINITY Stainless Steel Utility Sink should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 A (1) B (2) C (2) F (16) Carefully lay SINK (A) upside-down on a smooth flat surface. Two people are needed. Do NOT attempt this alone. Attach LEGS (B+C) to four corners of sink bottom with SCREWS (F). Ensure arrow on each leg is in same direction and overlaps with arrow on each corner of sink bottom.
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 2 D (1) F (4) Slide SINK SKIRT (D) down from outside of legs to bottom of sink as shown. Align each screw hole on sink skirt with screw hole on each leg. Insert SCREW (F) into each aligned hole and hand tighten it.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 4 Fully tighten each SCREW (F) with a Philips screwdriver to fasten sink skirt to legs. STEP 5 Carefully turn sink right-side up, G (1) standing it upright. Unscrew large 3-3/8” Nut from bottom of DRAIN ASSEMBLY (G). From inside SINK (A), insert Drain through White Seal and opening at bottom.

  • Page 6: Instrucciones De Ensamblaje

    ASSEMBLY INSTRUCTIONS / DIRECTIVES D’ASSEMBLAGE / INSTRUCCIONES DE ENSAMBLAJE STEP 6 Carefully move sink against wall at your desired location. If needed, H (1) I (2) J (2) use a pencil to mark off mounting height of BRACKET (H). Position BRACKET (H) on wall, marking off fastening location on wall through holes on BRACKET (H).
  • Page 7 SERVICE PARTS LIST – CTHA-0326 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBS-19-007-1600 Bracket XBS-03-106-3118 Shelf XGR-01-032-0440 Anchor XBK-98-018-4080 Feet Leveler XSV-01-033-0440 Mounting Screw XBS-04-062-3200 Left Leg XBS-18-033-3620 Sink Skirt XBS-18-032-3014 Sink ZSV-01-004-0610 Screw XGL-02-003-0002 Drain Assembly...
  • Page 8 WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. Do not leave salt in sink or near saltwater environment. • Rinse surface thoroughly with hot water after using soaps and detergents containing chlorides to prevent corrosion. • Do not use scouring pad, carbon steel brushes, or steel wool for cleaning.

  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY Stainless Steel Utility Sink. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY TRINITY Stainless Steel Utility Sink Model # CTHA-0326 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY Stainless Steel Utility Sink (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
