OWNER'S MANUAL

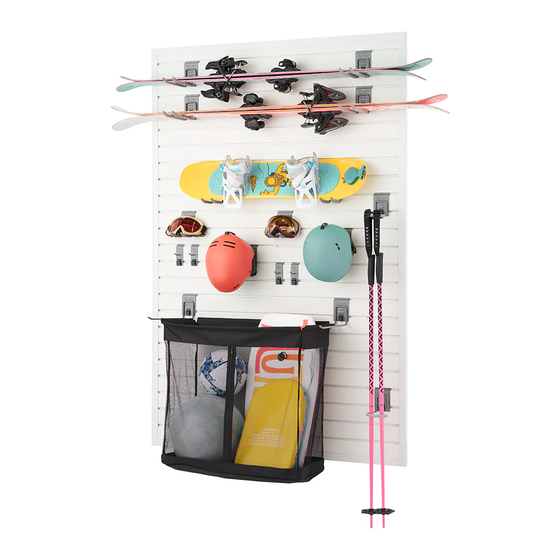

24 Sq Ft Modular Slatwall 19-Piece Accessory Sports Set
Model # TUP-0714
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Table of Contents
Related Manuals for Bilt TRINITY TUP-0714
Summary of Contents for Bilt TRINITY TUP-0714
- Page 1 OWNER’S MANUAL 24 Sq Ft Modular Slatwall 19-Piece Accessory Sports Set Model # TUP-0714 Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...
-
Page 2: Parts List
PARTS LIST Your TRINITY 24 Sq Ft Modular Slatwall 19-Piece Accessory Sports Set should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. -
Page 3: Before Installation
BEFORE INSTALLATION Two people are recommended for ease of assembly. Before you begin, remember to always work safely, follow tool manufacturers safety instructions. Notes: • TRINITY slatwall panels are designed to install over studs and properly studded drywall. For other surfaces please consult a local professional. - Page 4 SLATWALL INSTALLATION STEP 1 Pick location and coverage you want prior to installing your slatwall panels. If studs are covered by drywall, use a stud finder to mark locations of studs. Using a stud finder, locate all studs between start and finish, and mark along their length with a level.
- Page 5 SLATWALL INSTALLATION STEP 4 Make sure SLATWALL PANEL (A) has correct side up. Place first SLATWALL PANEL (A) into bottom EDGE TRIM (B) and confirm slatwall is level and plumb. Secure SLATWALL PANEL (A) to wall by driving (6) SCREWS (D) through channels on front face of panel, directly into center of every wall stud as shown.
- Page 6 SLATWALL INSTALLATION STEP 6 Finish side edge by overlapping your vertical EDGE TRIM (B) with your horizontal edge trim at bottom (wider side against wall). Insert edge of slatwall inside EDGE TRIM (B). Push edge trim onto panel to finish side edge.
- Page 7 SLATWALL INSTALLATION STEP 8 If you are adding another column of panels, use SEAM JOINT TRIM (C) to join next column. If you are done, skip to STEP 9. Front Side Cut SEAM JOINT TRIM (C) to fit between top and bottom trims.
-
Page 8: Hook Installation
HOOK USAGE HOOK INSTALLATION Place each HOOK (E/F/G/H/I) onto slatwall by inserting top edge of hook into channel of slatwall and then pushing bottom locking portion in until you hear a click. Make sure HOOK (E/F/G/H/I) is secured to slatwall tightly before hanging anything on it. - Page 9 MESH BAG INSTALLATION Attach BAG HOOKS (J) onto slatwall following hook installation instructions in previous page. Make sure distance between bag hooks match MESH BAG (K) width. Hang MESH BAG (K) onto BAG HOOKS (J) by inserting inner arm of each hook through sleeve on left and right side of MESH BAG (K) as shown.
-
Page 10: Service Parts List
SERVICE PARTS LIST TUP-0714 – TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XWH-02-071-0001 Edge trim PGR-02-073-0005 8” Double hook PGR-02-073-0012 Bag hook PGR-02-073-0003 4” Double hook XBK-24-011-2512 Mesh bag PGR-02-073-0002 4” Single hook XWH-20-013-4812 Slatwall panel PGR-02-073-0009... - Page 11 WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and / or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of the environment and ensure to use the product in a safe and responsible manner.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. • Avoid prolonged exposure to direct sunlight to prevent discoloration and / or deformation. • Keep clean with water and mild detergent. Do NOT use scouring pad for cleaning. •... -
Page 13: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY 24 Sq Ft Modular Slatwall 19-Piece Accessory Sports Set. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. -
Page 14: Year Limited Warranty
1 YEAR LIMITED WARRANTY 24 Sq Ft Modular Slatwall 19-Piece Accessory Sports Set Model # TUP-0714 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY 24 Sq Ft Modular Slatwall 19-Piece Accessory Sports Set (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. - Page 15 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
