Bilt Trinity TBFZ-0906 Owner's Manual

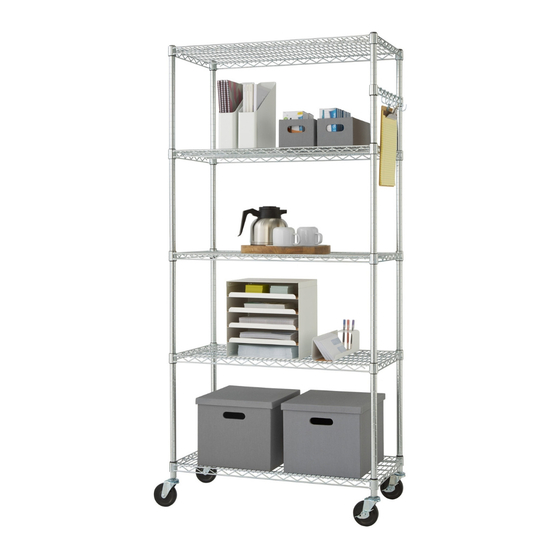

5-tier nsf 36" x 18" x 72" wire shelving rack with wheels
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

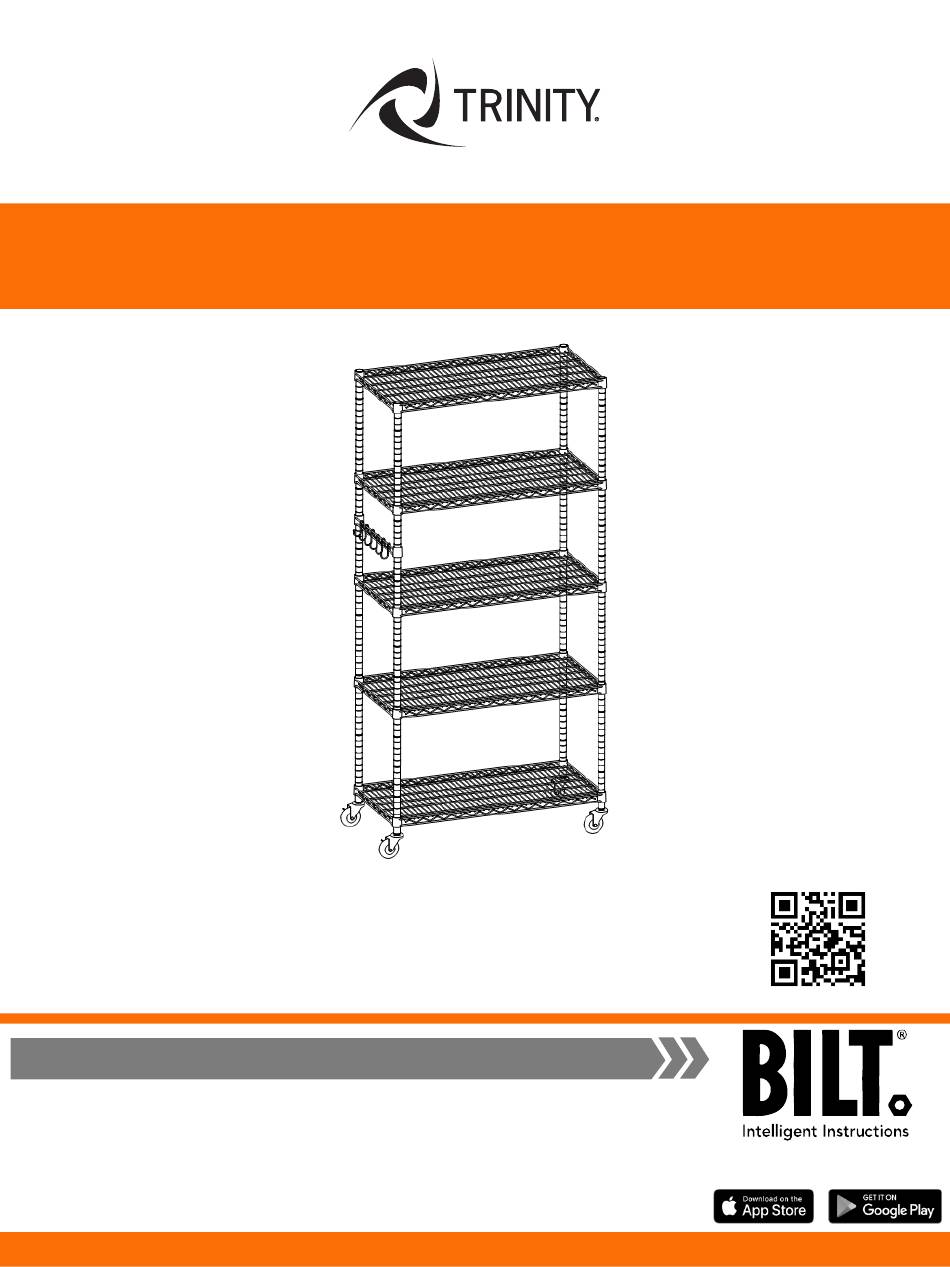

OWNER'S MANUAL
TRINITY 5-TIER NSF 36" x 18" x 72"
WIRE SHELVING RACK w/WHEELS
Model # TBFZ-0906 / TBFPBK-0906
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Direct ives int elligent es
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Inst rucciones Int eligent es
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trinity TBFZ-0906 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bilt Trinity TBFZ-0906

Summary of Contents for Bilt Trinity TBFZ-0906

  • Page 1 OWNER’S MANUAL TRINITY 5-TIER NSF 36" x 18" x 72" WIRE SHELVING RACK w/WHEELS Model # TBFZ-0906 / TBFPBK-0906 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Direct ives int elligent es POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Inst rucciones Int eligent es PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...

  • Page 2: Parts List

    PARTS LIST Your TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1: Stationary Option A (4) E (4) F (4) Screw each FEET LEVELER (F) into the bottom of each BOTTOM POLE (A). Turn clockwise to screw in place. STEP 1: Mobile Option Screw each CASTER (E) into the bottom of each BOTTOM POLE (A).

  • Page 4: Step 4: Installing Shelves

    ASSEMBLY INSTRUCTIONS STEP 3: INSTALLING BOTTOM SHELF Place SHELF (C) on its side and slide the (4) BOTTOM POLES (A) through the holes in the SHELF (C). Make sure that the SHELF (C) corner cylinders are positioned over the SLIP SLEEVES (D). Stand the unit upright.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 5: INSTALLING TOP POLES Screw the TOP POLE (B) into the BOTTOM POLE (A). The tops of these poles are indicated by the BLACK END CAP. B (4) STEP 6: INSTALLING SHELVES On POLE (A+B), place 1 pair of SLIP SLEEVES (D) at the desired distance between SHELVES (C).
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 7: INSTALLING SIDEBAR & HOOKS (OPTIONAL) Attach 2 pairs of SLIP SLEEVES (D) at the desired level on 2 POLES (A+B). Make sure that the heights are identical for both POLES (A+B). D (4) G (1) H (6) Slide in the SIDEBAR (G) so that the cylinders of the SIDEBAR (G) are positioned over the SLIP SLEEVES (D).

  • Page 7: Service Parts List

    SERVICE PARTS LIST – TBFZ-0906 Chrome Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description ZSV-03-007-3618 Shelf XBK-98-003-2538 Feet Leveler XBK-01-011-2543 Slip Sleeve XXX-97-002-0001 Wrench ZSV-04-006-3600 Top Pole ZSV-99-008-4010 Locking Caster ZSV-01-013-2523 Pole Connector ZSV-02-008-0001 “S”...
  • Page 8 SERVICE PARTS LIST – TBFPBK-0906 Black Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBK-03-007-3618 Shelf XBK-98-003-2538 Feet Leveler XBK-01-012-2543 Slip Sleeve XXX-97-002-0001 Wrench PBK-04-006-3600 Top Pole ZSV-99-008-4010 Locking Caster ZSV-01-013-2523 Pole Connector PBK-02-008-0001 “S”...

  • Page 9: Care And Maintenance

    WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. Use the provided caster wrench to tighten casters completely. Failure to do as instructed could result in the caster stem breaking thereby causing the shelving rack to collapse. 3.

  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels Model # TBFZ-0906 / TBFPBK-0906 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels(“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...

This manual is also suitable for:

Trinity tbfpbk-0906
