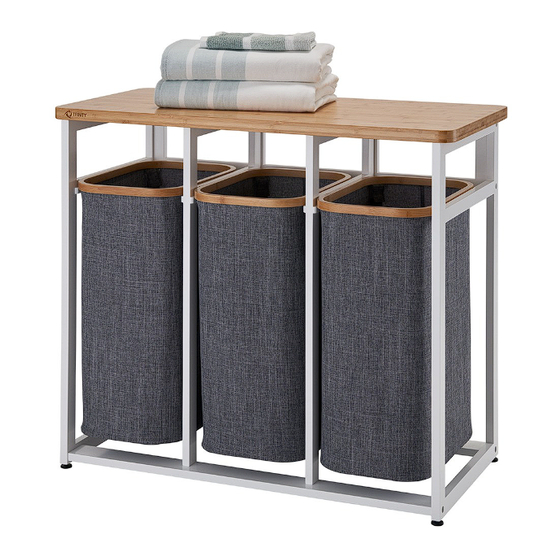

Bamboo laundry station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
TRINITY ECOSTORAGE® BAMBOO LAUNDRY STATION
Model # TRJLWH-2111 / TRJLDG-2111
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRINITY ECOSTORAGE TRJLWH-2111 and is the answer not in the manual?

Questions and answers

Related Manuals for Bilt TRINITY ECOSTORAGE TRJLWH-2111

Summary of Contents for Bilt TRINITY ECOSTORAGE TRJLWH-2111

  • Page 1 OWNER’S MANUAL TRINITY ECOSTORAGE® BAMBOO LAUNDRY STATION Model # TRJLWH-2111 / TRJLDG-2111 Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...

  • Page 2: Parts List

    PARTS LIST Your TRINITY Ecostorage® Bamboo Laundry Station should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 Screw FEET LEVELERS (I) into bottom of LEFT (B) and RIGHT (C) SIDE FRAMES. STEP 2 Two people are recommended for ease of assembly. Insert WOOD DOWEL (L) into hole without nut on each end of BOTTOM CROSS BEAMS (F). Attach TOP CROSS BEAM (D) and (2) BOTTOM CROSS BEAMS (F) to LEFT SIDE FRAME (B) using (4) SCREWS (J) as shown.
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 3 Attach RIGHT SIDE FRAME (C) to partially assembled unit from step 2 using (4) SCREWS (J) as shown. Fully tighten SCREWS (J) with provided HEX KEY (K). STEP 4 Attach (2) MIDDLE FRAMES (E) to partially assembled unit from step 3 using (6) SCREWS (J) as shown.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 5 Lay BAMBOO TOP (A) upside down on a clean smooth surface. Insert WOOD DOWEL (L) into middle hole on each end of BAMBOO TOP (A). Attach partially assembled unit from step 4 to BAMBOO TOP (A) by inserting wood dowls into middle hole on top of LEFT (B) and RIGHT (C) SIDE FRAMES.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 7 Insert BASKET SUPPORT (H) into cloth strip at each inner corner of LAUNDRY BASKET (G) as shown. Cloth strip STEP 8 Place (3) LAUNDRY BASKETS (G) into laundry station by inserting bamboo ring of laundry basket into slots on fully assembled unit as shown. Slot on frame Bamboo ring of laundry basket...

  • Page 7: Service Parts List

    SERVICE PARTS LIST – TRJLWH-2111 (White) TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description LNA-19-020-2100 Basket Support LWH-13-020-3255 Bottom Cross Beam XGR-24-009-1015 Laundry Basket LWH-14-052-1730 Left Side Frame LNA-20-010-3617 Bamboo Top LWH-14-054-1529 Middle Frame ZBK-01-037-0627 Screw XXX-97-001-0001...
  • Page 8 SERVICE PARTS LIST – TRJLDG-2111 (Dark Gray) TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description LNA-19-020-2100 Basket Support LDG-13-020-3255 Bottom Cross Beam XGR-24-009-1015 Laundry Basket LDG-14-052-1730 Left Side Frame LNA-20-010-3617 Bamboo Top LDG-14-054-1529 Middle Frame ZBK-01-037-0627 Screw XXX-97-001-0001...

  • Page 9: Care And Maintenance

    WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner.

  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY Ecostorage® Bamboo Laundry Station. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY TRINITY ECOSTORAGE® BAMBOO LAUNDRY STATION Model # TRJLWH-2111 / TRJLDG-2111 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY Ecostorage® Bamboo Laundry Station (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
