OWNER'S MANUAL

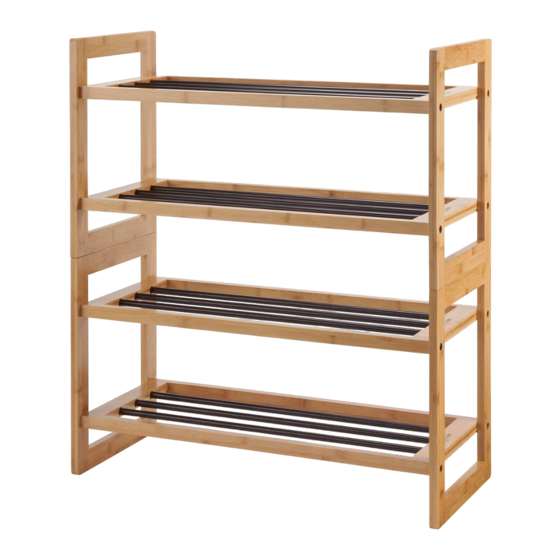

TRINITY BAMBOO & METAL SHOE RACK
(2 PACK)
Model # CTBFPBR-24152 / TBFPBR-24152
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Direct ives int elligent es
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Inst rucciones Int eligent es
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trinity CTBFPBR-24152 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bilt Trinity CTBFPBR-24152

Summary of Contents for Bilt Trinity CTBFPBR-24152

  • Page 1 OWNER’S MANUAL TRINITY BAMBOO & METAL SHOE RACK (2 PACK) Model # CTBFPBR-24152 / TBFPBR-24152 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Direct ives int elligent es POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Inst rucciones Int eligent es PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...

  • Page 2: Parts List

    PARTS LIST Your TRINITY Bamboo & Metal Shoe Rack (2 Pack) should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.

  • Page 3: Assembly Options

    ASSEMBLY OPTIONS Please note that you can stack one shoe rack on top of another or put two shoe racks side by side. Option 1: Shoe Racks Stacked Note: When shoe racks are stacked, frame connecting parts have square corners, making straight lines; shoe rack frame top and bottom parts have rounded corners.
  • Page 4 ASSEMBLY INSTRUCTIONS Option 1 Shoe Racks Stacked STEP 1 A (4) B (4) C (16) D (1) Align screw holes of FRAME (A) and SHELF (B) as shown, insert SCREWS (C) into screw holes to connect FRAMES (A) and SHELVES (B). Make sure one pair of FRAMES (A) rounded corners are on top, square corners are on bottom, other pair of FRAMES (A) are opposite: square corners on top, round corners on bottom.
  • Page 5 ASSEMBLY INSTRUCTIONS Option 1 Shoe Racks Stacked STEP 2 Insert DOWELS (E) into holes on E (4) FRAME (A) of bottom shoe rack as shown, lift other shoe rack by both FRAMES (A) and align holes with DOWELS (E). Push units together making sure DOWELS (E) are securely inside holes.
  • Page 6 ASSEMBLY INSTRUCTIONS Option 2 Shoe Racks Placed Side by Side STEP 1 A (4) B (4) C (16) D (1) Align screw holes of FRAME (A) and SHELF (B) as shown, insert SCREWS (C) into screw holes to connect FRAMES (A) and SHELVES (B). Make sure both shoe racks FRAMES (A) rounded corners are on top, square corners are on bottom.
  • Page 7 ASSEMBLY INSTRUCTIONS Option 2 Shoe Racks Placed Side by Side STEP 2 Place shoe racks side by side. Make sure FRAMES (A) rounded corners are on top, square corners are on bottom. © 2020 TRINITY - 800.985.5506...

  • Page 8: Service Parts List

    SERVICE PARTS LIST – CTBFPBR-24152 TRINITY Customer Service provides the following replacement parts: Part Number Description LNA-14-041-1216 Frame PBR-03-092-2611 Shelf ZBK-01-037-0627 Screw XXX-97-001-0001 Hex Key XNA-01-006-0830 Dowel © 2020 TRINITY - 800.985.5506...

  • Page 9: Care And Maintenance

    WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of the environment and ensure to use the product in a safe and responsible manner.

  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY Bamboo & Metal Shoe Rack (2 Pack). In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY TRINITY Bamboo & Metal Shoe Rack (2 Pack) Model # CTBFPBR-24152 / TBFPBR-24152 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY Bamboo & Metal Shoe Rack (2 Pack) (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
