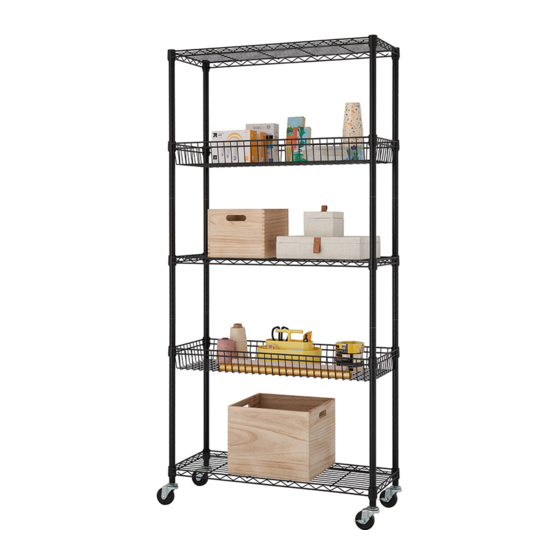

Bilt TRINITY TBFZ-0960 Owner's Manual

5-tier nsf wire shelving w/ baskets & wheels
Hide thumbs

Advertisement

Quick Links

Download this manual

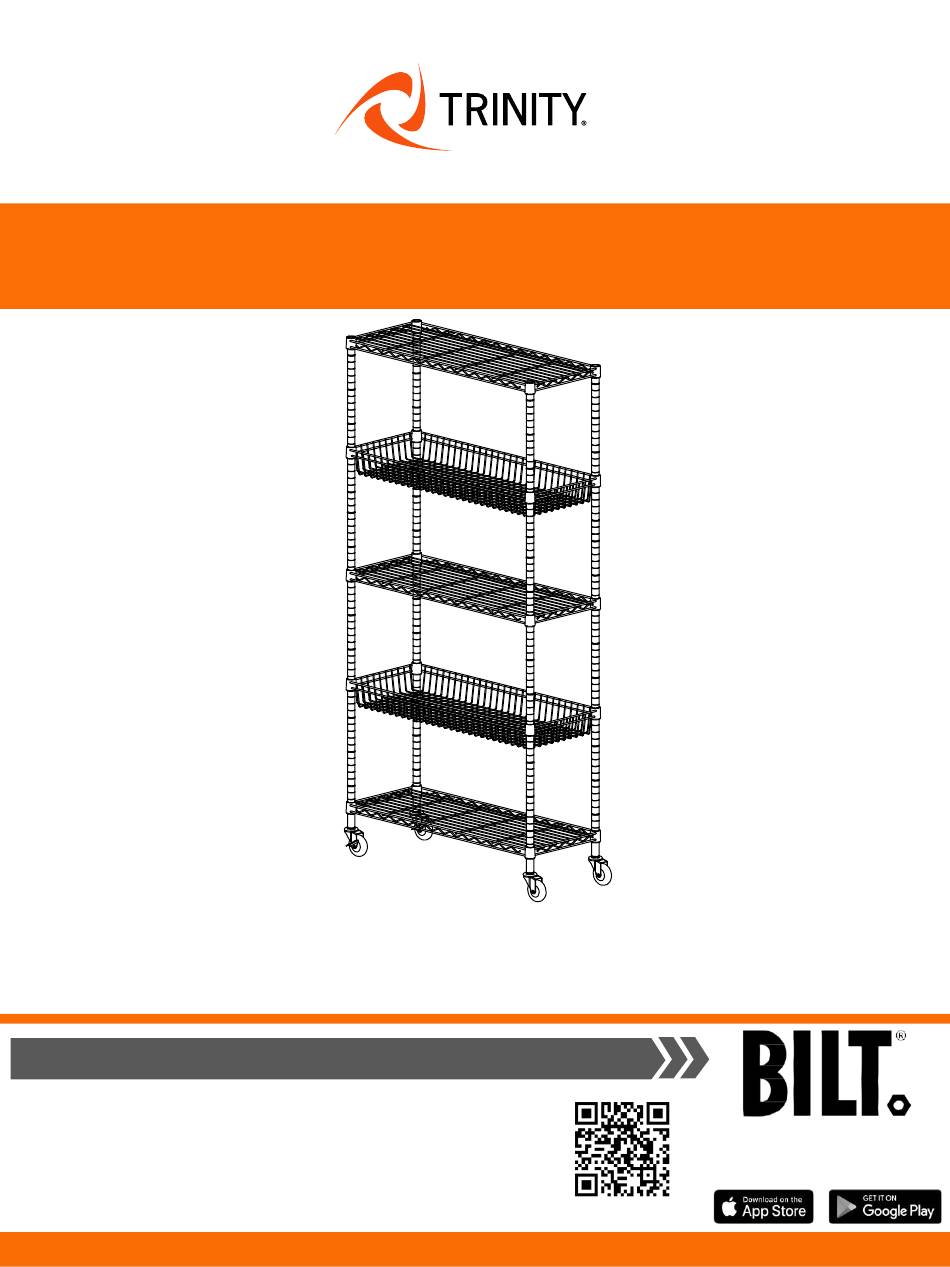

OWNER'S MANUAL
TRINITY 5-TIER NSF WIRE SHELVING W/ BASKETS & WHEELS
MODEL # TBFZ-0960 / TBFPBK-0960
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRINITY TBFZ-0960 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bilt TRINITY TBFZ-0960

Summary of Contents for Bilt TRINITY TBFZ-0960

  • Page 1 OWNER’S MANUAL TRINITY 5-TIER NSF WIRE SHELVING W/ BASKETS & WHEELS MODEL # TBFZ-0960 / TBFPBK-0960 Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...

  • Page 2: Parts List

    PARTS LIST Your TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Wheels should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 Stationary Option Screw each FEET LEVELER (I) into bottom of each BOTTOM POLE (A). Turn clockwise to screw in place. Mobile Option Screw each CASTER (G) into bottom of each BOTTOM POLE (A). Turn clockwise to screw in place.
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 3 Place SHELF (D) on its side and slide each BOTTOM POLE (A) through each corner cylinder on SHELF (D). Make sure SHELF (D) corner cylinders are positioned over SLIP SLEEVES (F). Stand the unit upright. Note: •...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 5 Screw pole connector of MIDDLE POLE (B) into BOTTOM POLE (A). Repeat for each remaining MIDDLE POLE (B). Do the same for TOP POLE (C). STEP 6 Repeat Step 3 and Step 4 to install other SHELVES (D) and BASKET (E) as desired.
  • Page 6 ASSEMBLY INSTRUCTIONS Anti-tip Hardware Installation ANTI-TIP HARDWARE PACK (J) is used to protect against accidental tipping – especially due to curious children. On Wood Stud Determine wood stud location and mark it on wall, level with topmost shelf. Do this on two different studs along top shelf.
  • Page 7 SERVICE PARTS LIST – TBFZ-0960 (Chrome) TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description End Cap ZSV-99-008-3010 Locking Caster XBK-23-004-2517 Top Pole XXX-97-002-0001 Wrench ZSV-04-025-2450 ZSV-21-026-3614 Basket ZSV-04-027-2725 Bottom Pole Pole Connector XBK-01-011-2543 Slip Sleeve ZSV-01-029-2523 ZSV-04-026-2000 Middle Pole...
  • Page 8 SERVICE PARTS LIST – TBFPBK-0960 (Black) TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description End Cap ZSV-99-008-3010 Locking Caster XBK-23-004-2517 Top Pole XXX-97-002-0001 Wrench PBK-04-025-2450 PBK-21-026-3614 Basket PBK-04-027-2725 Bottom Pole Pole Connector XBK-01-012-2543 Slip Sleeve ZSV-01-029-2523 PBK-04-026-2000 Middle Pole...

  • Page 9: Care And Maintenance

    WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and / or damage. 2. Tighten all casters completely by using the wrench. Failure to do as instructed could result in the caster stem breaking, thereby causing the product to collapse. 3.

  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Wheels. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Wheels Model # TBFZ-0960 / TBFPBK-0960 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Wheels (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...

This manual is also suitable for:

Trinity tbfpbk-0960
