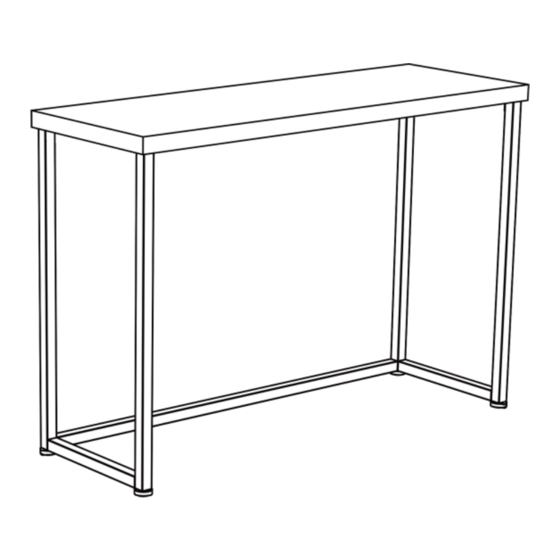

- Page 1 ASSEMBLY INSTRUCTION KRUEGER SOFA TABLE ITEM CODE 716580001 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST BOLT M6X12MM 4 PCS HEX KEY 1 PC M8X10MM BOLT 4 PCS Top Panel x1 Left Side Frame x1 Right Side Frame x1 Bottom Bar x1...
- Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Connect left side frame(2) and right side frame(3) to bottom bar(4). • Secure with bolt(F) per connection. Fasten with allen key(B). • Fasten only until the bolt is tight in the thread, do not fully fasten for now.
- Page 5 STEP 2: • Place the top panel(1) flat on the surface and connect assembly as shown. • Secure with bolt(A) per connection. Fasten with allen key(B). • Once levelled turn the table back on its side and fasten all the bolts.
- Page 6 ASSEMBLY IS COMPLETE...
- Page 7 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
- Page 8 PRODUCT CARE: As our timber is supplied from sustainable forests there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique Our furniture is built to last.
