Summary of Contents for JWA Hesdin 71409

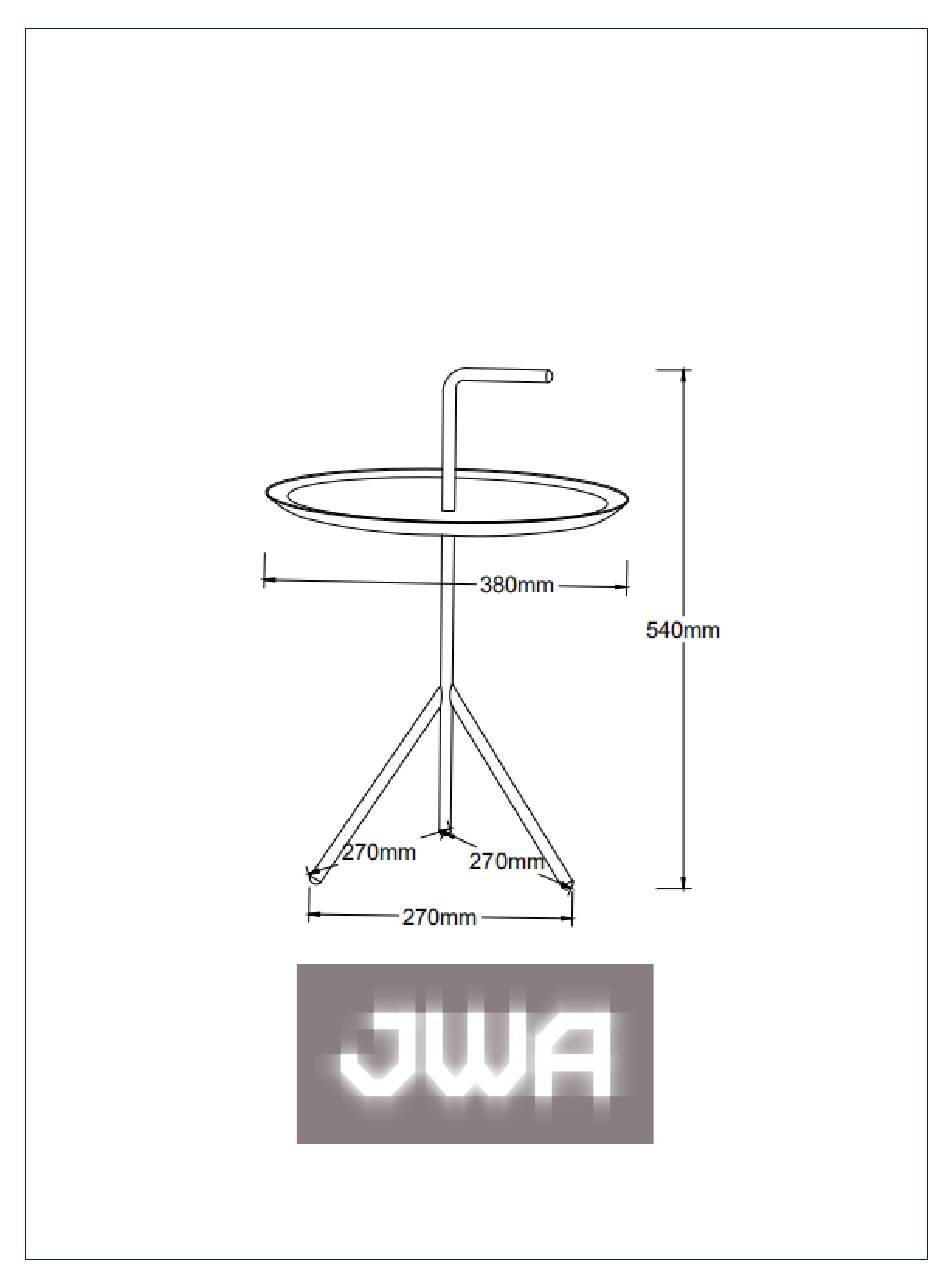

- Page 1 ASSEMBLY INSTRUCTION Hesdin Lamp Table ITEM CODE:71409 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST ① Table Frame ② Table Handle ③ Table Top... - Page 4 STEP 1: • Insert bolt A into flat washer B to connect A with Table Frame ①.Loosely tighten for now. ① STEP 2: • Put the Table Top ③ up the Table Frame ①. • Insert bolt A into the Table Handle ② and turn the Table Handle ②...
- Page 5 STEP 3: • Stand the table, top side up. Place in on a level surface. Adjust the legs until the table is level. Now go around and firmly tighten all the bolts. ASSEMBLY OF THE LAMP TABLE IS COMPLETE...
-
Page 6: Product Care
PRODUCT CARE: To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
