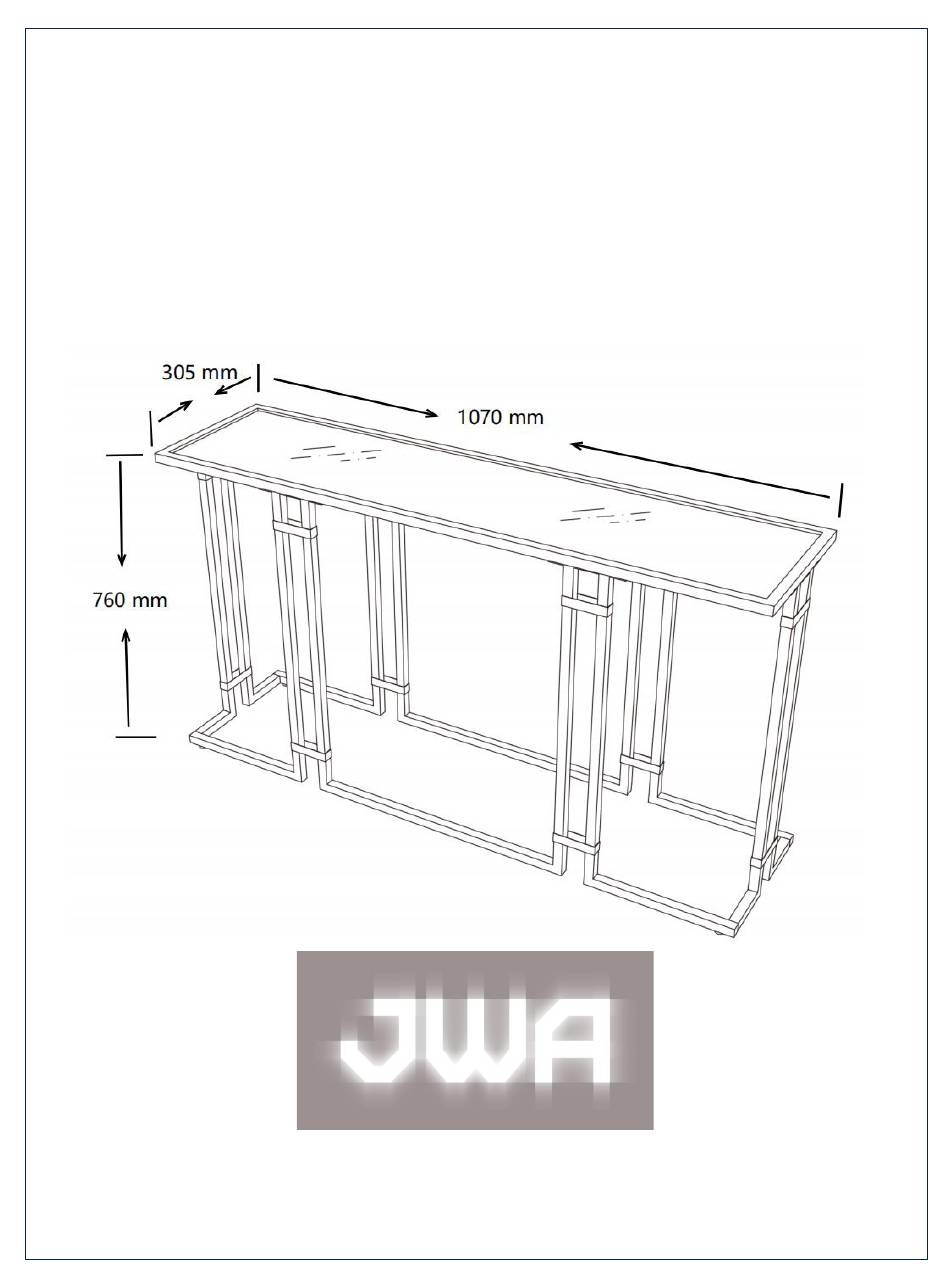

- Page 1 ASSEMBLY INSTRUCTION HAROLD SOFA TABLE ITEM CODE 716590001 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST BOLT M6X10MM 16 PCS HEX KEY 1 PC POLISHING CLOTH 1 PC FOOT 4 PCS Top Panel x1 Side Frame x2 Front Frame x2... - Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Connect side frame(2) to front frame(3) as shown • Secure with bolt(A) per connection. Fasten with allen key(B). • Fasten only until the bolt is tight in the thread, do not fully fasten for now.
- Page 5 STEP 2: • Connect top panel(1) to unit as shown. • Secure with bolt(A) per connection. Fasten with allen key(B). • Once levelled turn the table back on its side and fasten all the bolts.
- Page 6 ASSEMBLY IS COMPLETE...
- Page 7 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
-
Page 8: Product Care
PRODUCT CARE: If the glass is chipped or broken, stop using the product and consult place of purchase WARNING: • Do not place very hot or cold items directly onto the glass surface,unless a coaster or placemat are used to prevent the items from coming into direct contact with the glass •...
