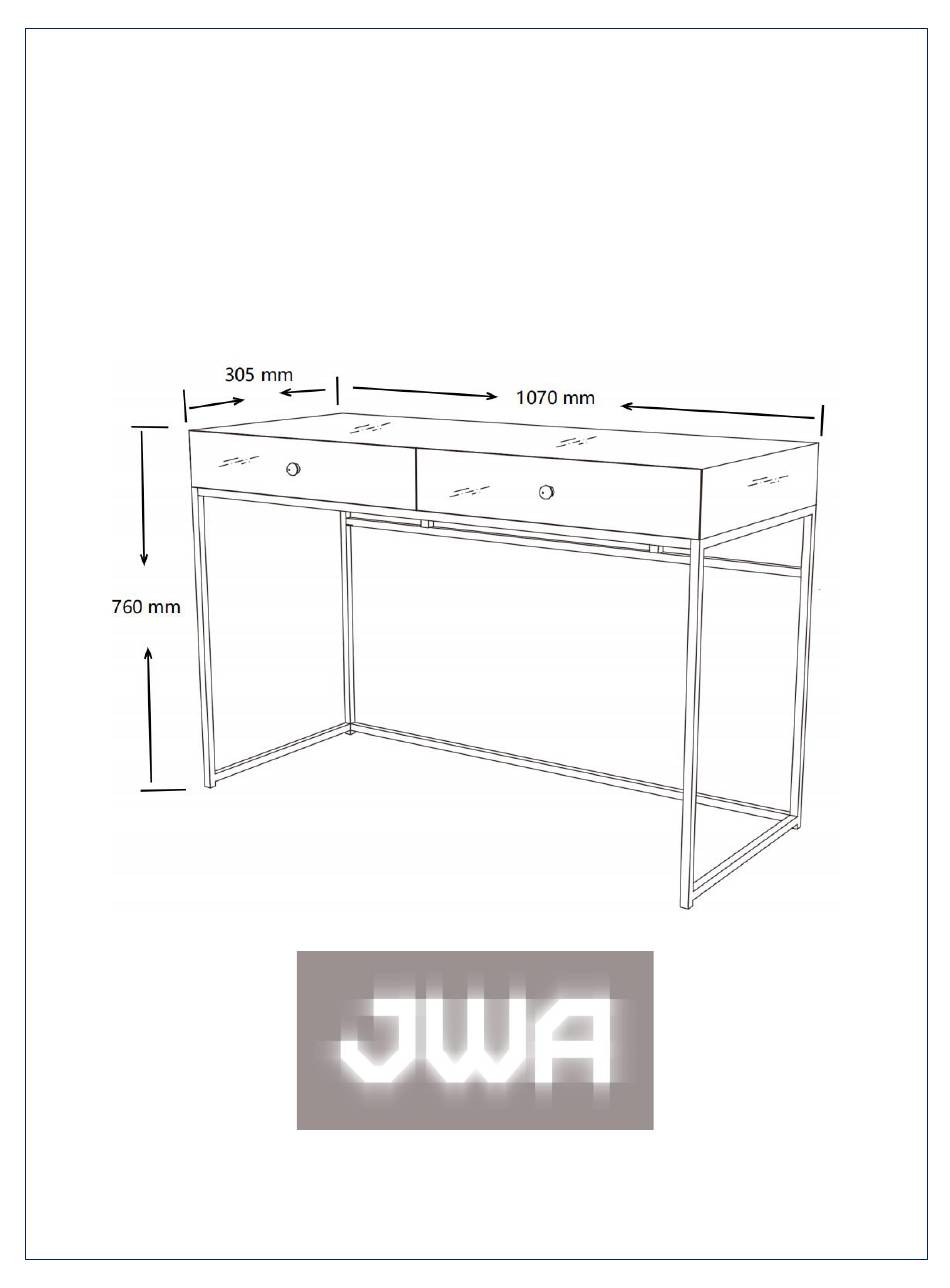

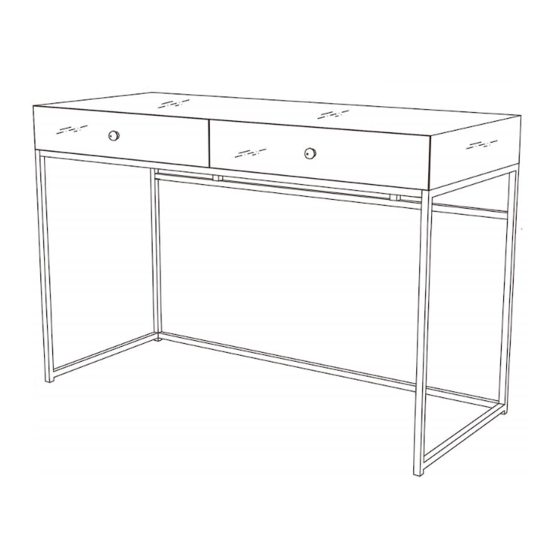

- Page 1 ASSEMBLY INSTRUCTION LOZANO SOFA TABLE ITEM CODE 716660001 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST LONG BOLT WITH M6X16MM 6 SETS WASHER HEX KEY 1 PC POLISHING CLOTH 1 PC M6X10MM SHORT BOLT 8 PCS SCREW WITH 2 SETS SLEEVE KNOB 2 PCS PLASTIC FOOT 4 PCS Table Top x1 Side Frame x2 Back Frame x1 Bottom Bar x1 Top Bar x1... - Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Connect side frame(2) back frame(3)bottom bar(4) and top bar(5)togegher as shown below. • Secure with short bolt(D) per connection. Fasten with allen key(B). • Fasten only until the bolt is tight in the thread, do not fully fasten for now.
- Page 5 STEP 2: • Place the table top(1) flat on the surface and connect to unit using long bolt with washer(A) per connection as shown below. • Once levelled turn the table back on its side and fasten all the bolts.
- Page 6 STEP 3: • Remove the knob(F) from inside of drawer to outside. • Connect knob(F) to drawer using screw with sleeve(E) as shown below.
- Page 7 ASSEMBLY IS COMPLETE...
- Page 8 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
-
Page 9: Product Care
PRODUCT CARE: If the glass is chipped or broken, stop using the product and consult place of purchase WARNING: • Do not place very hot or cold items directly onto the glass surface,unless a coaster or placemat are used to prevent the items from coming into direct contact with the glass •...
