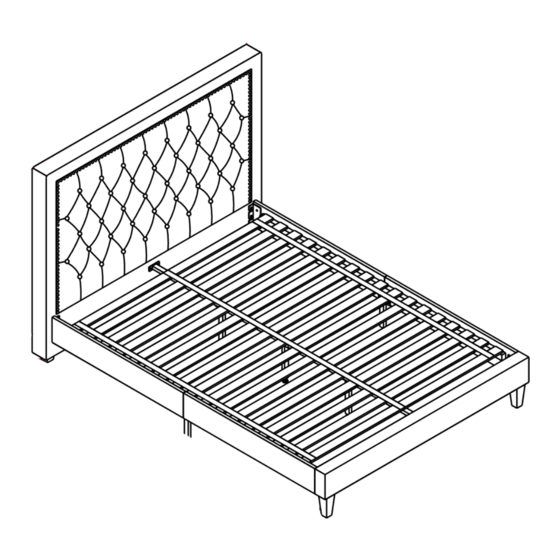

- Page 1 ASSEMBLY INSTRUCTION ARNOLD DARK GREY QUEEN BED 71113 Imported by JWA Furniture Pty Ltd, Brisbane, Qld Australia For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST M8X19mm x10pcs Flat washer M4X65mm x1pcs M6X19mm x8pcs Flat washer Allen key Part ltem Part ltem Rail Headboard Rail Rail Rail Footboard Support leg Center slat rail Support leg Support leg Slat...
- Page 4 STEP 1: STEP 2:...
- Page 5 STEP 3: Attention：Please align the two rails tightly before tightening the bolts. STEP 4: Attention：Please install the bolt from top to bottom...
- Page 6 STEP 5: Loose the bolt on the headboard, then link the rail to the headboard. STEP 6:...
- Page 7 STEP 7: ASSEMBLY IS COMPLETE...
- Page 8 REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: •Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash, Do not dry clean, Do not shampoo clean •Clean with hot water extraction machine.
